ASCD BRAKE SWITCH


Component Description






When depress on the brake pedal, ASCD brake switch (1) is turned OFF and stop lamp switch (2) is turned ON. ECM detects the state of the brake pedal (3) by this input of two kinds (ON/OFF signal)
Refer to System Description for the ASCD function.


Diagnosis Procedure

1.CHECK OVERALL FUNCTION-I
With CONSULT-III
1. Turn ignition switch ON.
2. Select "BRAKE SW1" in "DATA MONITOR" mode with CONSULT-III.

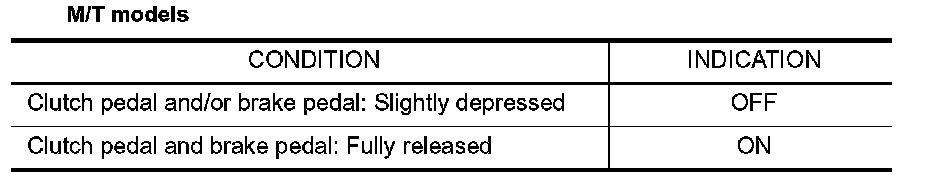

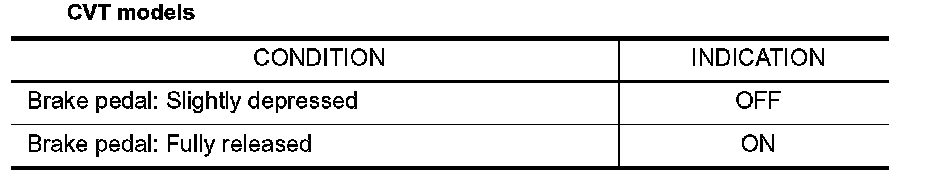

3. Check "BRAKE SW1" indication under the following conditions.











Without CONSULT-III
1. Turn ignition switch ON.

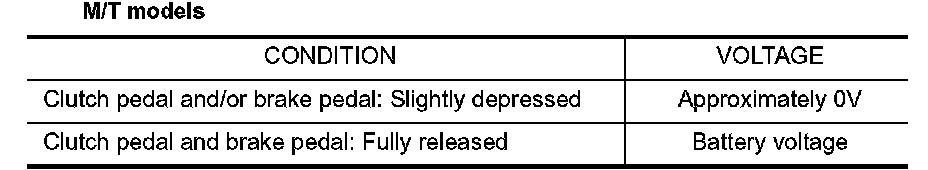

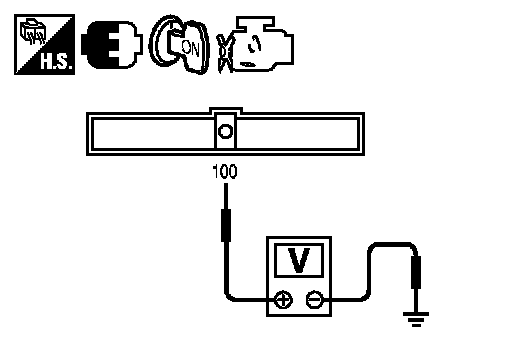

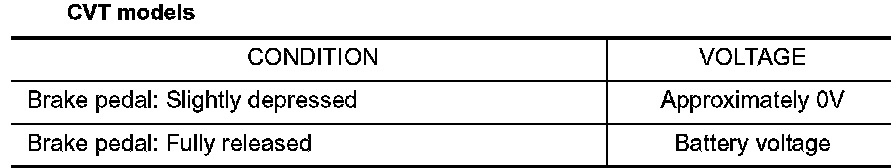

2. Check voltage between ECM terminal 100 and ground under the following conditions.










OK or NG
OK >> GO TO 2.
NG >> GO TO 3.
2.CHECK OVERALL FUNCTION-II
With CONSULT-III
Check "BRAKE SW2" indication in "DATA MONITOR" mode.





Without CONSULT-III

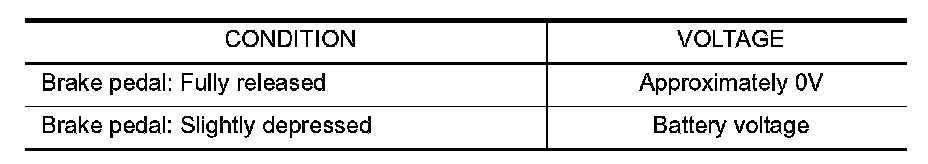

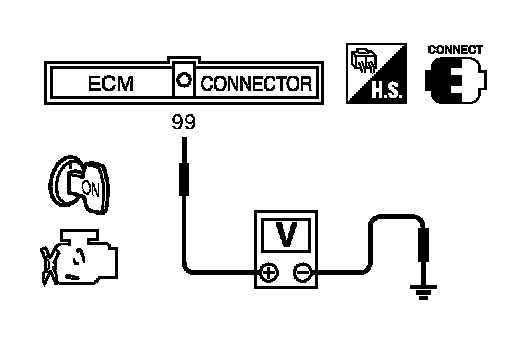

Check voltage between ECM terminal 99 and ground under the following conditions.

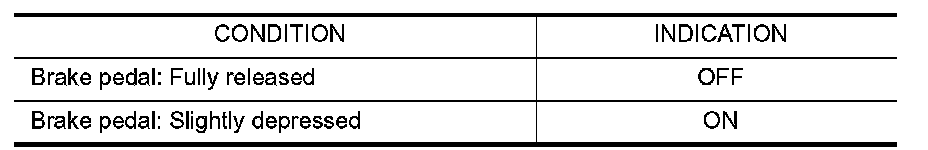

OK or NG
OK >> INSPECTION END
NG >> GO TO 11.
3.CHECK ASCD BRAKE SWITCH POWER SUPPLY
1. Turn ignition switch OFF.

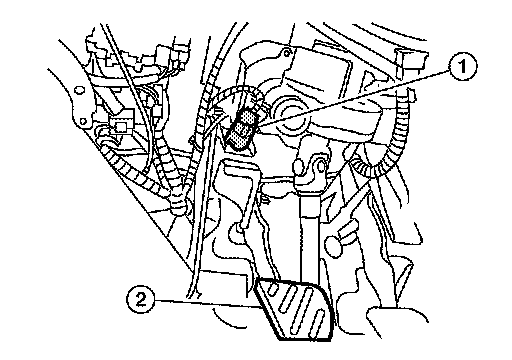

2. Disconnect ASCD brake switch (1) harness connector.

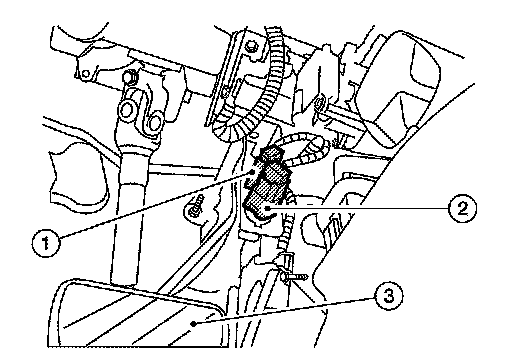

- Stop lamp switch (2)
- Brake pedal (3)
3. Turn ignition switch ON.

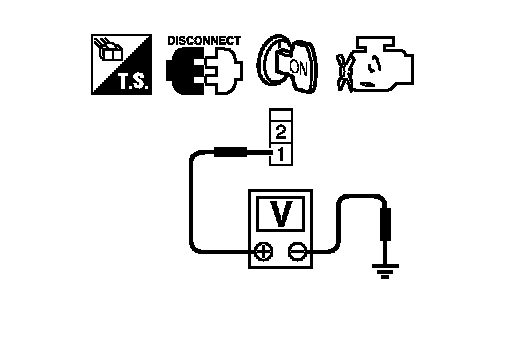

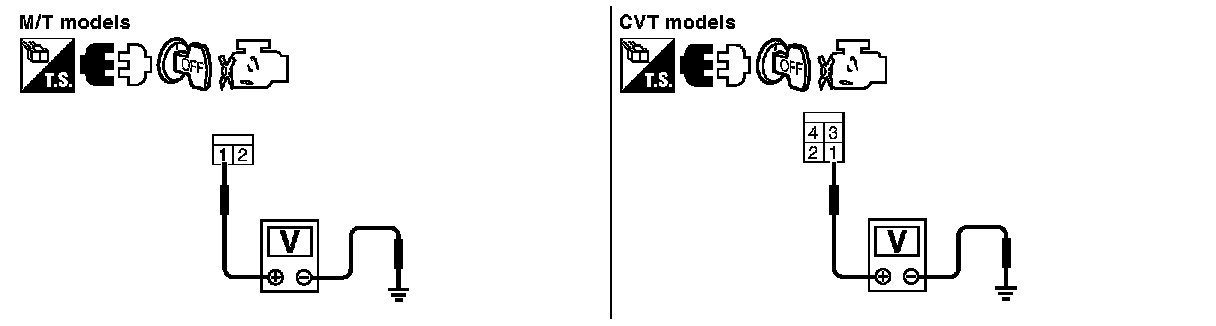

4. Check voltage between ASCD brake switch terminal 1 and ground with CONSULT-III or tester.

Voltage : Battery voltage

OK or NG
OK >> GO TO 8.
NG (M/T models) >>GO TO 4.
NG (CVT models)>>GO TO 6.
4.CHECK ASCD CLUTCH SWITCH POWER SUPPLY CIRCUIT
1. Turn ignition switch OFF.





2. Disconnect ASCD clutch switch (1) harness connector.
- Clutch pedal (2)
3. Turn ignition switch ON.





4. Check voltage between ASCD clutch switch terminal 1 and ground with CONSULT-III or tester.

Voltage: Battery voltage

OK or NG
OK >> GO TO 7.
NG >> GO TO 5.
5.DETECT MALFUNCTIONING PART
Check the following.
- 10A fuse
- Harness for open or short between ASCD clutch switch and fuse
>> Repair open circuit or short to ground or short to power in harness or connectors.
6.DETECT MALFUNCTIONING PART
Check the following.
- 10A fuse
- Harness for open or short between ASCD brake switch and fuse
>> Repair open circuit or short to ground or short to power in harness or connectors.
7.CHECK ASCD CLUTCH SWITCH INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
1. Turn ignition switch OFF.
2. Check harness continuity between ASCD brake switch terminal 1 and ASCD clutch switch terminal 2. Refer to Wiring Diagram.

Continuity should exist.

3. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 10.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
8.CHECK ASCD BRAKE SWITCH INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
1. Turn ignition switch OFF.
2. Disconnect ECM harness connector.
3. Check harness continuity between ECM terminal 100 and ASCD brake switch terminal 2. Refer to Wiring Diagram.

Continuity should exist.

4. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 9.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
9.CHECK ASCD BRAKE SWITCH
Refer to For California.
OK or NG
OK >> GO TO 15.
NG >> Replace ASCD brake switch.
10.CHECK ASCD CLUTCH SWITCH
Refer to For California
OK or NG
OK >> GO TO 15.
NG >> Replace ASCD clutch switch.
11.CHECK STOP LAMP SWITCH POWER SUPPLY CIRCUIT
1. Turn ignition switch OFF.

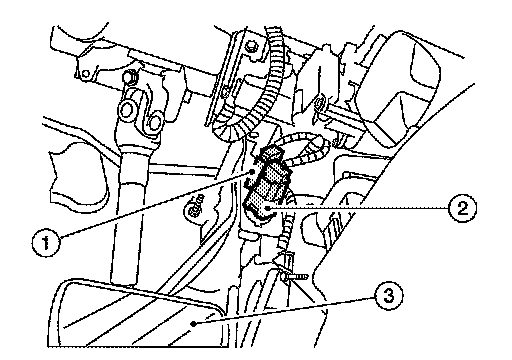

2. Disconnect stop lamp switch (2) harness connector.

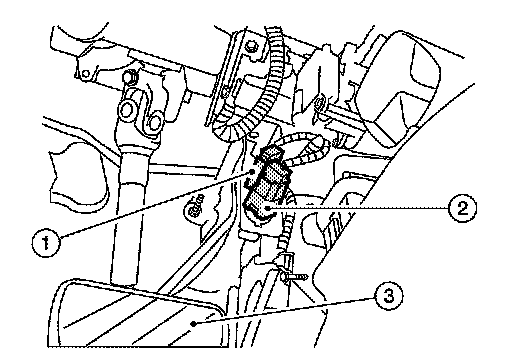

- ASCD brake switch (1)
- Brake pedal (3)
3. Check voltage between stop lamp switch terminal 1 and ground with CONSULT -III or tester.






Voltage: Battery voltage

OK or NG
OK >> GO TO 13.
NG >> GO TO 12.
12.DETECT MALFUNCTIONING PART
Check the following.
- 10A fuse
- Harness for open or short between stop lamp switch and battery
>> Repair open circuit or short to ground or short to power in harness or connectors.
13.CHECK STOP LAMP SWITCH INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
1. Disconnect ECM harness connector.
2. Check harness continuity between ECM terminal 99 and stop lamp switch terminal 2. Refer to Wiring Diagram.

Continuity should exist.

3. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 14.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
14.CHECK STOP LAMP SWITCH
Refer to For California
OK or NG
OK >> GO TO 15.
NG >> Replace stop lamp switch.
15.CHECK INTERMITTENT INCIDENT
Refer to For California For California.
>> INSPECTION END
