Except For California

ASCD BRAKE SWITCH


Component Inspection


ASCD BRAKE SWITCH
1. Turn ignition switch OFF.
2. Disconnect ASCD brake switch harness connector.

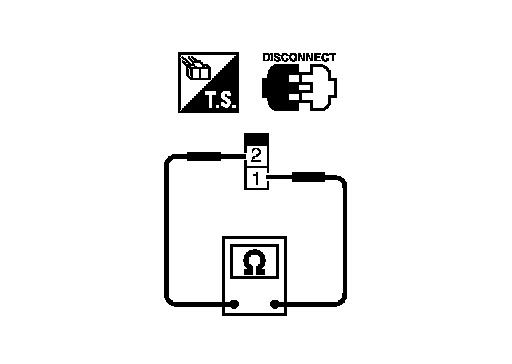

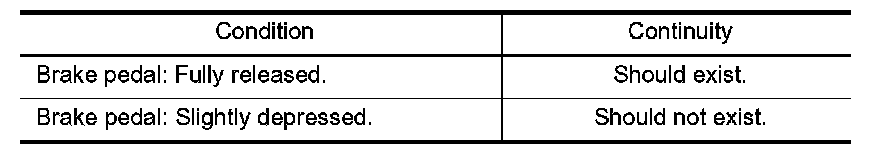

3. Check continuity between ASCD brake switch terminals 1 and 2 under the following conditions.





If NG, adjust ASCD brake switch installation, refer to Testing and Inspection, and perform step 3 again.

ASCD CLUTCH SWITCH
1. Turn ignition switch OFF.
2. Disconnect ASCD clutch switch harness connector.

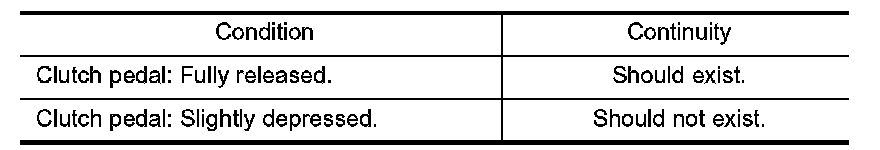

3. Check continuity between ASCD clutch switch terminals 1 and 2 under the following conditions.





If NG, adjust ASCD clutch switch installation, refer to Adjustments, and perform step 3 again.

STOP LAMP SWITCH
1. Turn ignition switch OFF.
2. Disconnect stop lamp switch harness connector.

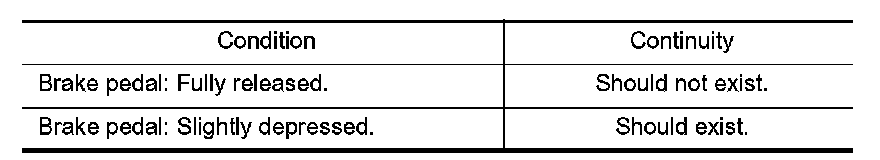

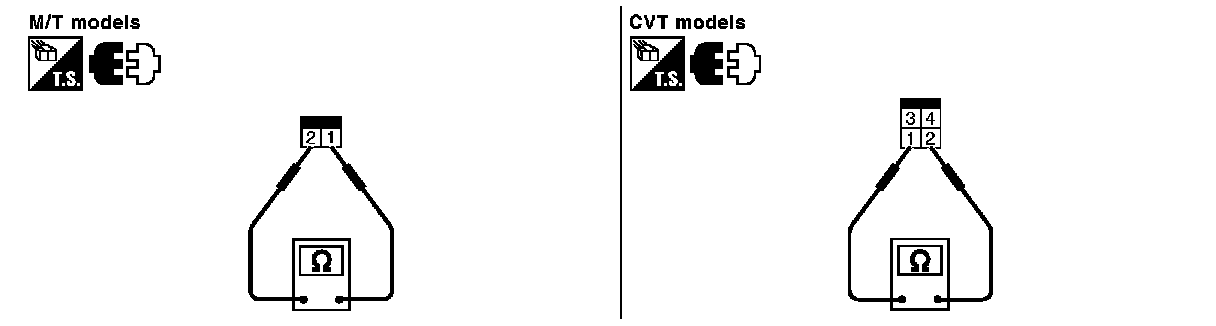

3. Check continuity between stop lamp switch terminals 1 and 2 under the following conditions.










If NG, adjust stop lamp switch installation, refer to Testing and Inspection, and perform step 3 again.
