CAN Communication System





CAN COMMUNICATION SYSTEM


Wiring Diagram - CAN -


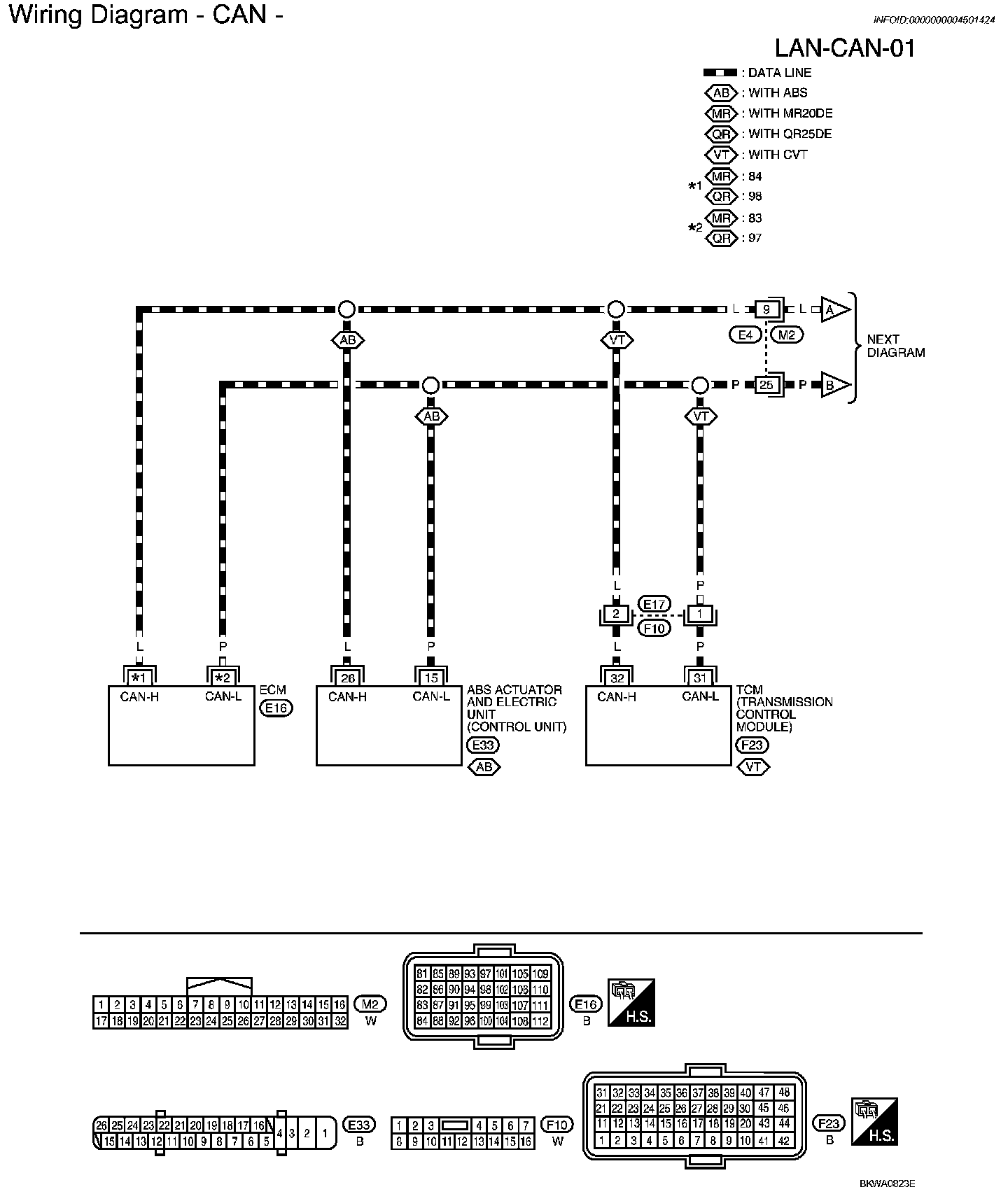

LAN-CAN-01:

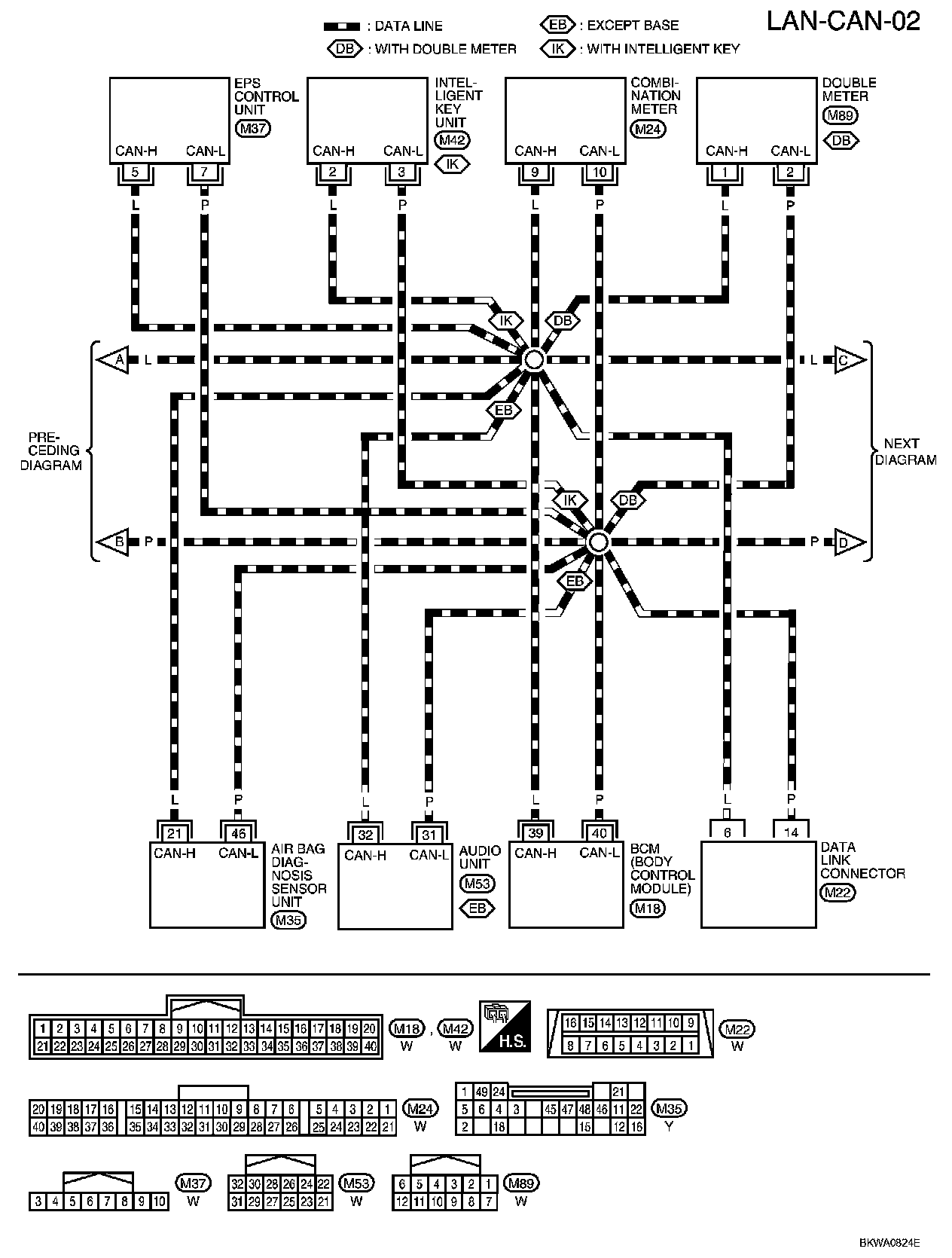

LAN-CAN-02:

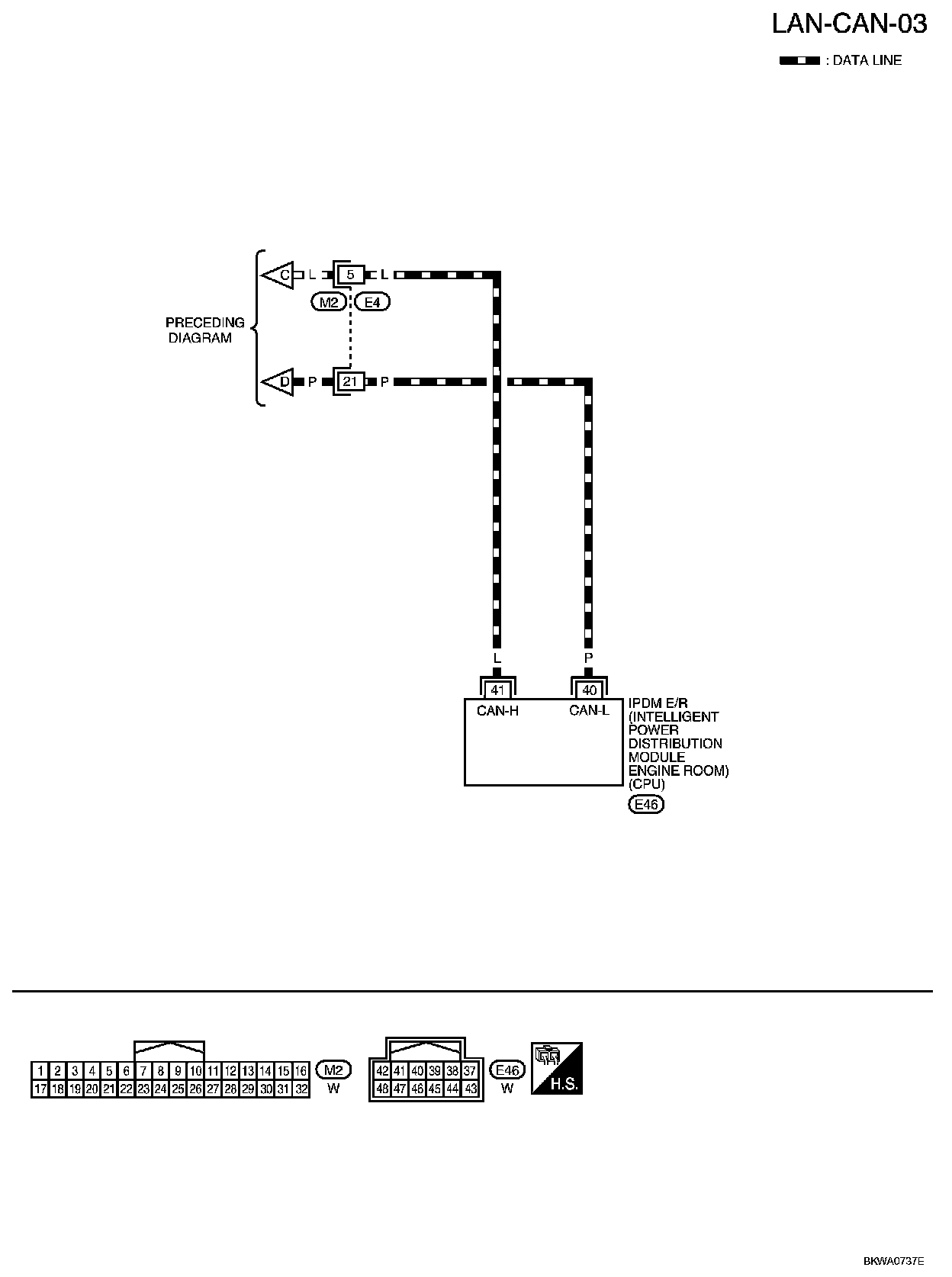

LAN-CAN-03:
