Turn Signals Do Not Operate

TURN SIGNAL AND HAZARD WARNING LAMPS


Turn Signals Do Not Operate

1. CHECK COMBINATION SWITCH INPUT SIGNAL
With CONSULT-III
1. Select "BCM" on CONSULT-III. Select "FLASHER" on "SELECT TEST ITEM" screen.

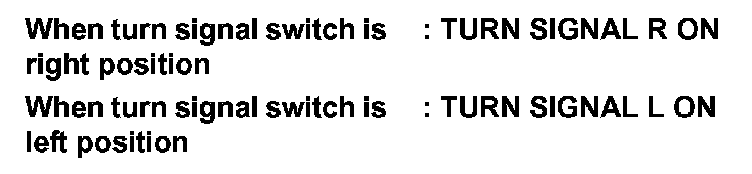

2. Select "DATA MONITOR". Make sure that "TURN SIGNAL R" and "TURN SIGNAL L" turn ON-OFF linked with operation of lighting switch.





Without CONSULT-III
Refer to Component Tests and General Diagnostics.
OK or NG
OK >> Replace the BCM. Refer to Service and Repair .
NG >> Check combination switch (lighting switch). Refer to Component Tests and General Diagnostics .
