License Plate and Tail Lamps Do Not Illuminate (Front Parking Lamps Operate Normally)

PARKING, LICENSE PLATE AND TAIL LAMPS


License Plate and Tail Lamps Do Not Illuminate (Front Parking Lamps Operate Normally)

1. CHECK FUSE
Inspect tail lamp 10A fuse (No. 36, located in IPDM E/R)
OK or NG
OK >> GO TO 2.
NG >> Repair harness.
2. CHECK INPUT SIGNAL
With CONSULT-III
1. Turn ignition switch OFF.
2. Disconnect license plate lamp and rear combination lamp connectors.
3. Turn ignition switch ON.
4. Select "IPDM E/R" on CONSULT-III, and select "ACTIVE TEST".
5. Select "TAIL LAMP" on "SELECT TEST ITEM" screen.
6. Touch "ON" on "ACTIVE TEST" screen.
7. When tail lamp relay is operating, check voltage between license plate lamp and rear combination lamp harness connectors and ground.
Without CONSULT-III
1. Turn ignition switch OFF.
2. Disconnect license plate lamp and rear combination lamp connectors.
3. Turn ignition switch ON.
4. Start auto active test. Refer to Auto Active Test.
5. When tail lamp relay is operating, check voltage between license plate lamp and rear combination lamp harness connectors and ground.




















OK or NG
OK >> GO TO 4.
NG >> GO TO 3.
3. CHECK LICENSE PLATE AND TAIL LAMP CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect IPDM E/R connector.

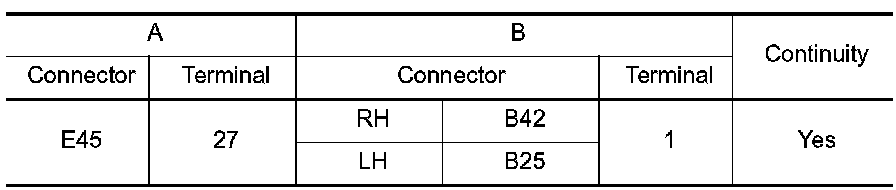

3. Check continuity between IPDM E/R harness connector (A) and license plate lamp harness connector (B).










4. Check continuity between IPDM E/R harness connector (A) and rear combination lamp harness connector (B).





OK or NG
OK >> Replace IPDM E/R. Refer to Inspection with CONSULT-III (Self-Diagnosis) Service and Repair.
NG >> Repair harness or connector.
4. CHECK PARKING, LICENSE PLATE AND TAIL LAMPS GROUND CIRCUIT





1. Check continuity between license plate lamp harness connector and ground.










2. Check continuity between rear combination lamp harness connector and ground.





OK or NG
OK >> Check bulbs.
NG >> Repair harness or connector.
