Home >> Nissan-Datsun >> 2009 >> Sentra L4-2.0L (MR20DE) >> Repair and Diagnosis >> Lighting and Horns >> Tail Lamp >> Service and Repair >> Removal and Replacement >> Rear Combination Lamp >> Component

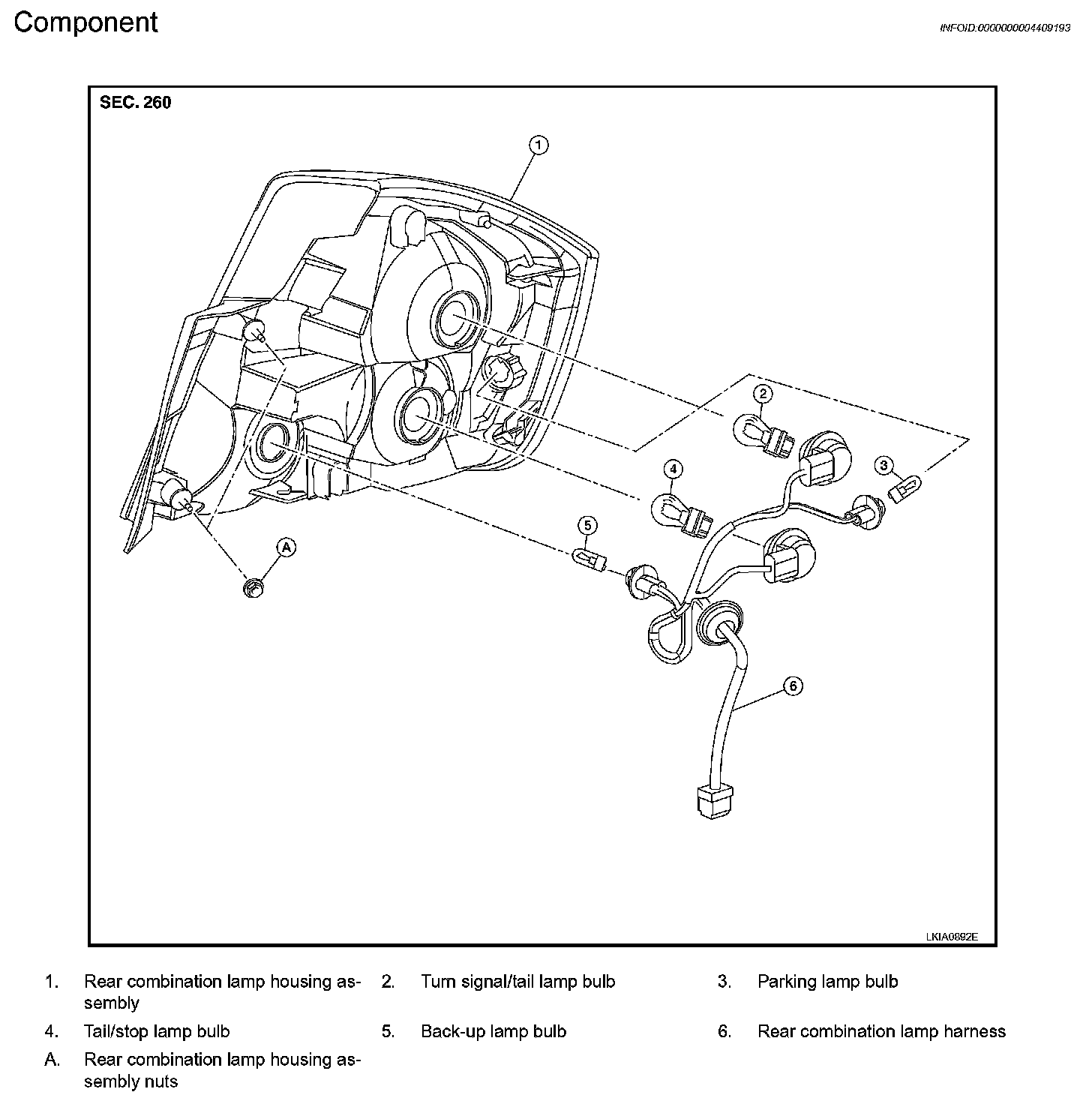

Component





REAR COMBINATION LAMP


Component
