Disassembly And Assembly

HEADLAMP (FOR USA)

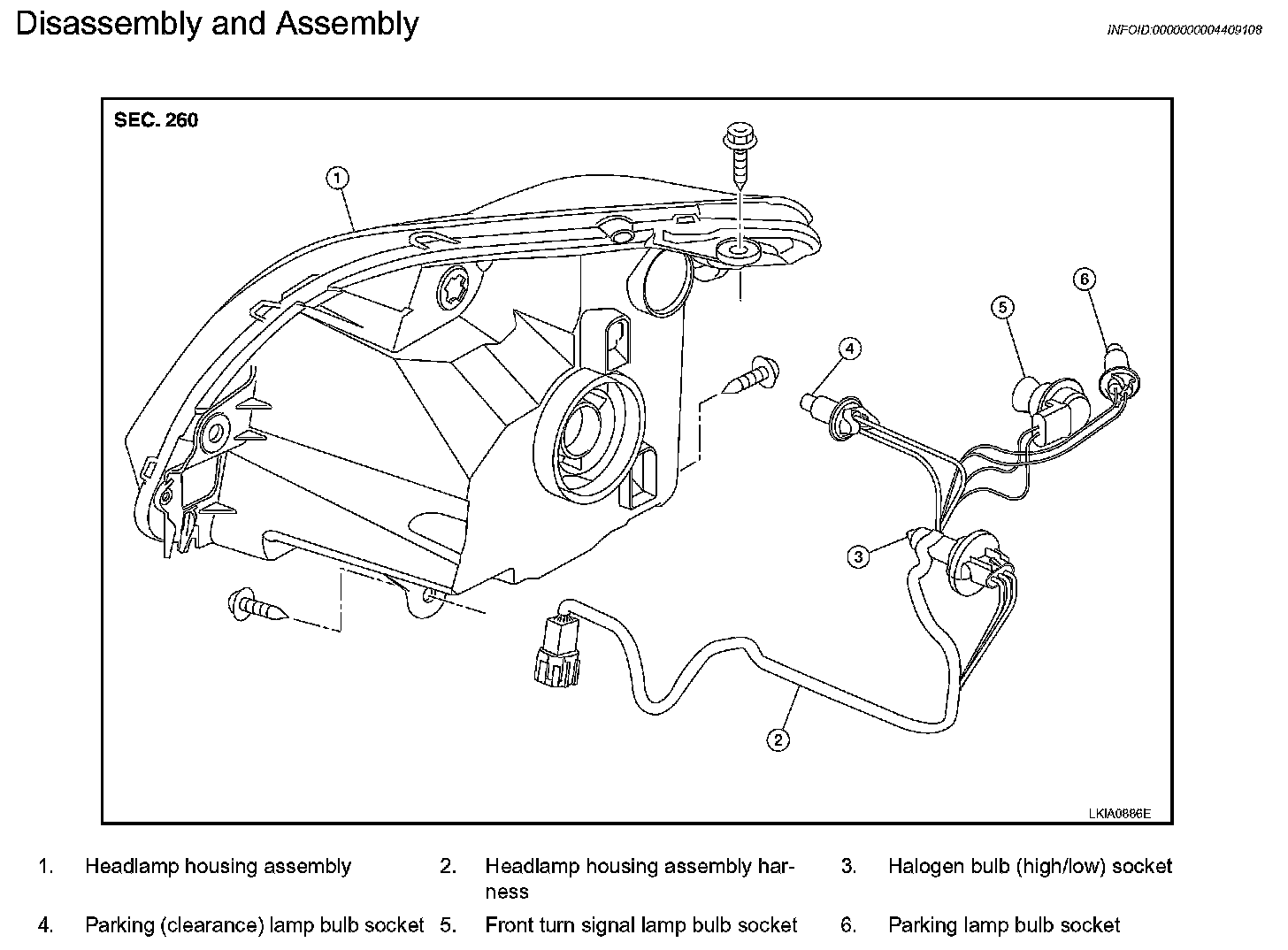

Disassembly and Assembly






DISASSEMBLY
1. Turn the halogen (high/low) bulb socket counterclockwise and remove.
2. Turn the parking (clearance) lamp bulb socket counterclockwise and remove.
3. Turn the front turn signal lamp bulb socket counterclockwise and remove.
4. Turn parking lamp bulb counterclockwise and remove.
5. Detach the headlamp bulb harness from the headlamp assembly.

ASSEMBLY
Assembly is in the reverse order of disassembly.
