Fog/Driving Lamp Bulb: Service and Repair

FRONT FOG LAMP


Bulb Replacement

1. Turn lighting switch OFF.
2. Position back the front fender protector. Refer to Removal and Installation.

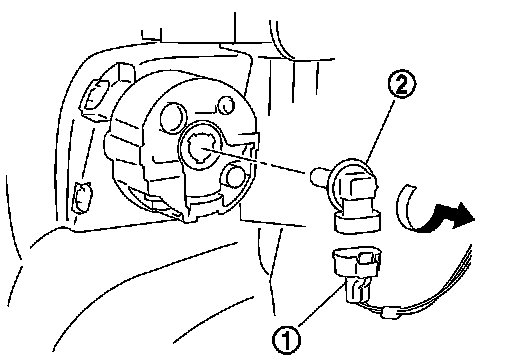

3. Disconnect front fog lamp connector (1).
4. Turn bulb socket (2) counterclockwise unlock and remove it.
5. Remove bulb from its socket.
