Terminal And Reference Value For Double Meter





DOUBLE METERS

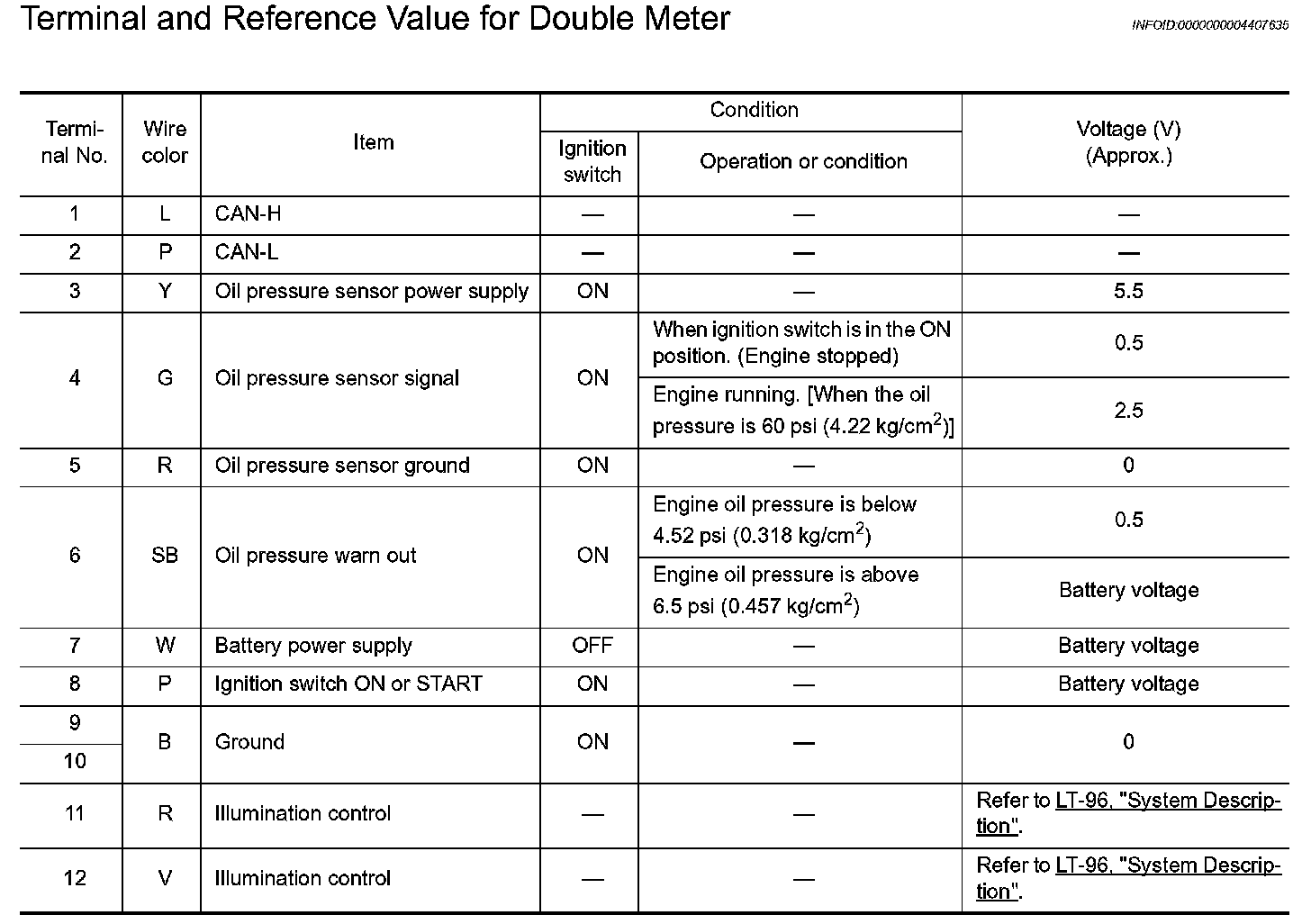

Terminal and Reference Value for Double Meter
