WARNING LAMPS
Component Inspection
OIL PRESSURE SWITCH

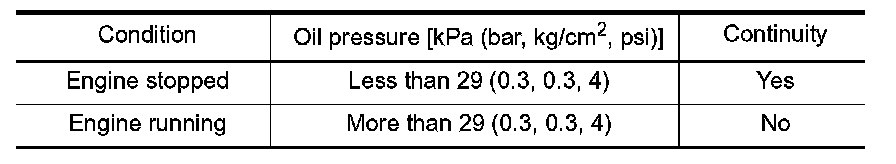

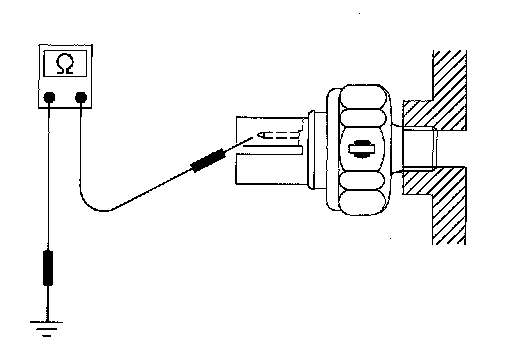

Check continuity between oil pressure switch and ground.
