Electrical Component Inspection

COMBINATION METERS


Electrical Component Inspection


FUEL LEVEL SENSOR UNIT CHECK
For removal, refer to Removal and Installation.

Check Fuel Level Sensor Unit and Fuel Pump

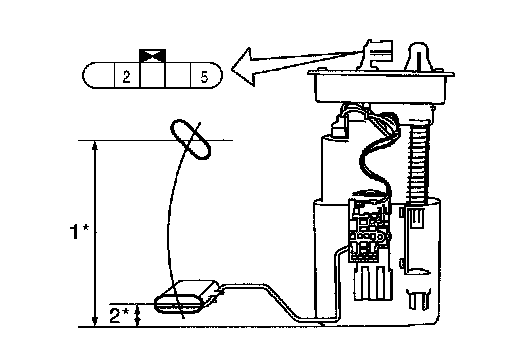

Check resistance between terminals 2 and 5.











Check Fuel Level Sensor Unit and Fuel Pump Harness

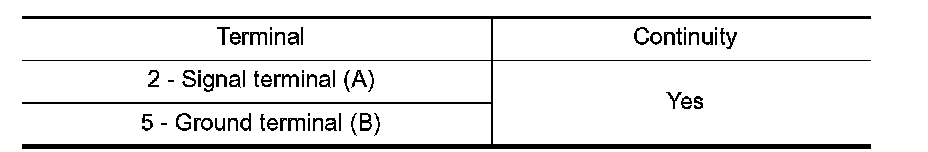

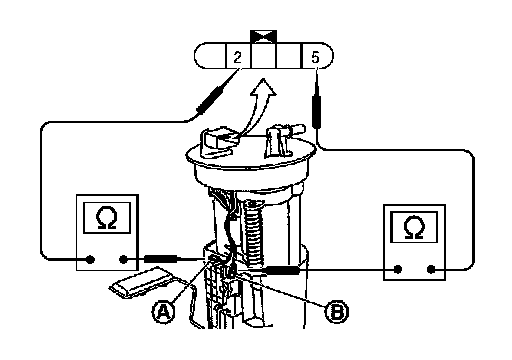

Check continuity at the following terminals.










- If the results of check are NG, replace fuel pump assembly. If the results of check are OK, replace fuel level sensor unit.
