Overview Of Control System





MTC


AIR CONDITIONER CONTROL


Overview of Control system

The control system consists of an input sensor, switches, the front air control and outputs.

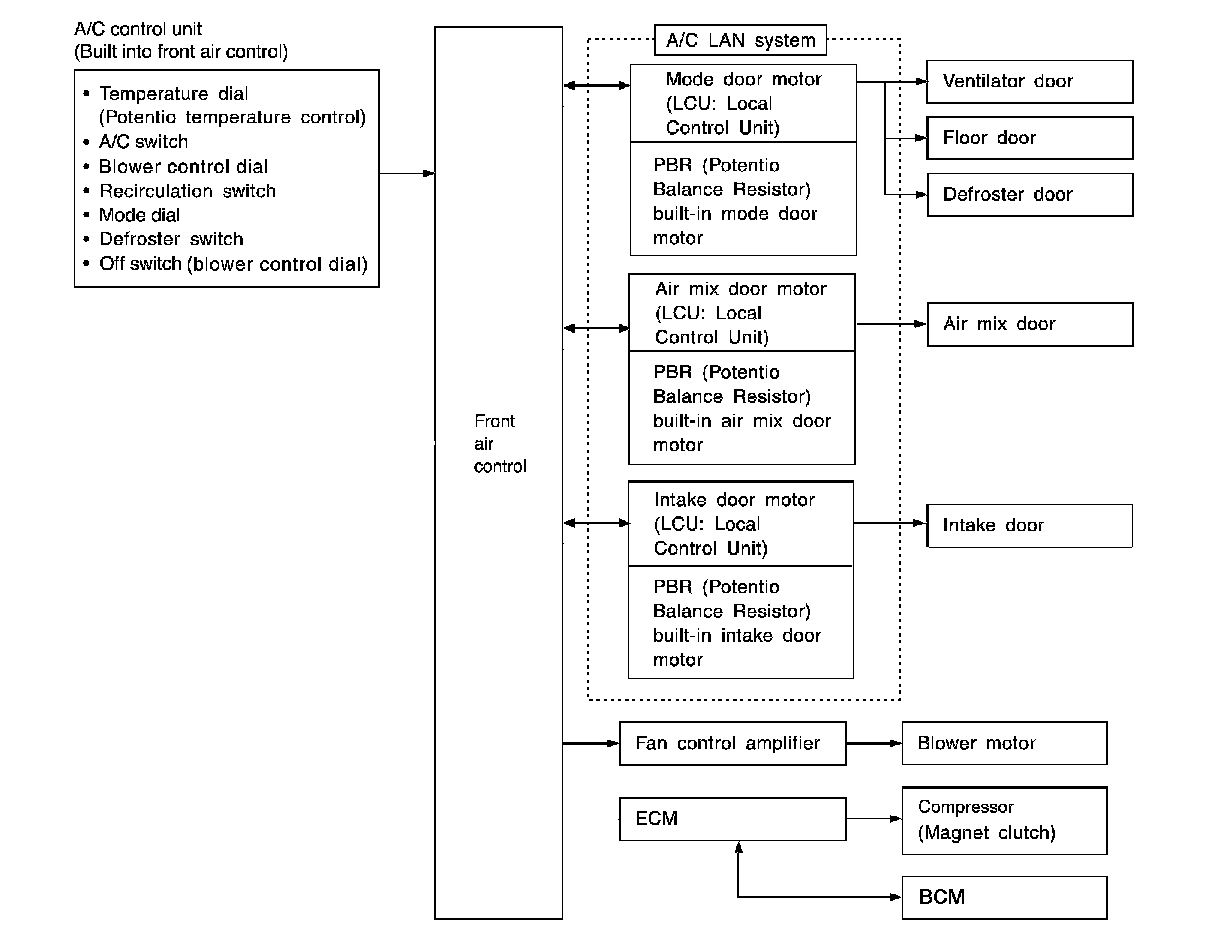

The relationship of these components is shown in the diagram below:
