Disassembly and Assembly

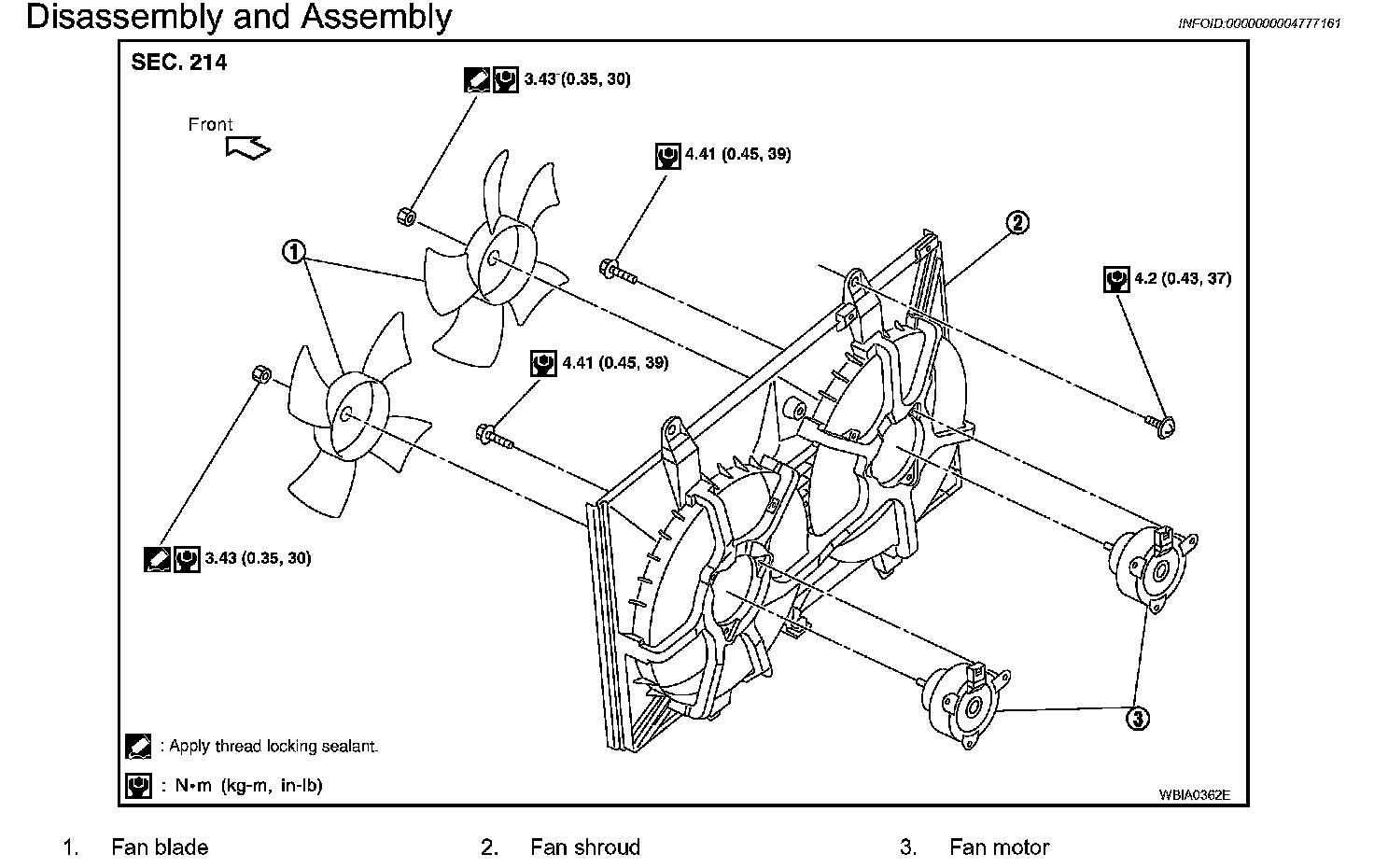

COOLING FAN


Disassembly and Assembly







DISASSEMBLY
1. Remove fans from fan motors.
2. Remove fan motors from fan shroud.

ASSEMBLY
Assembly is in the reverse order of disassembly.
