INF/D





INTEGRATED DISPLAY SYSTEM


Wiring Diagram - INF/D -

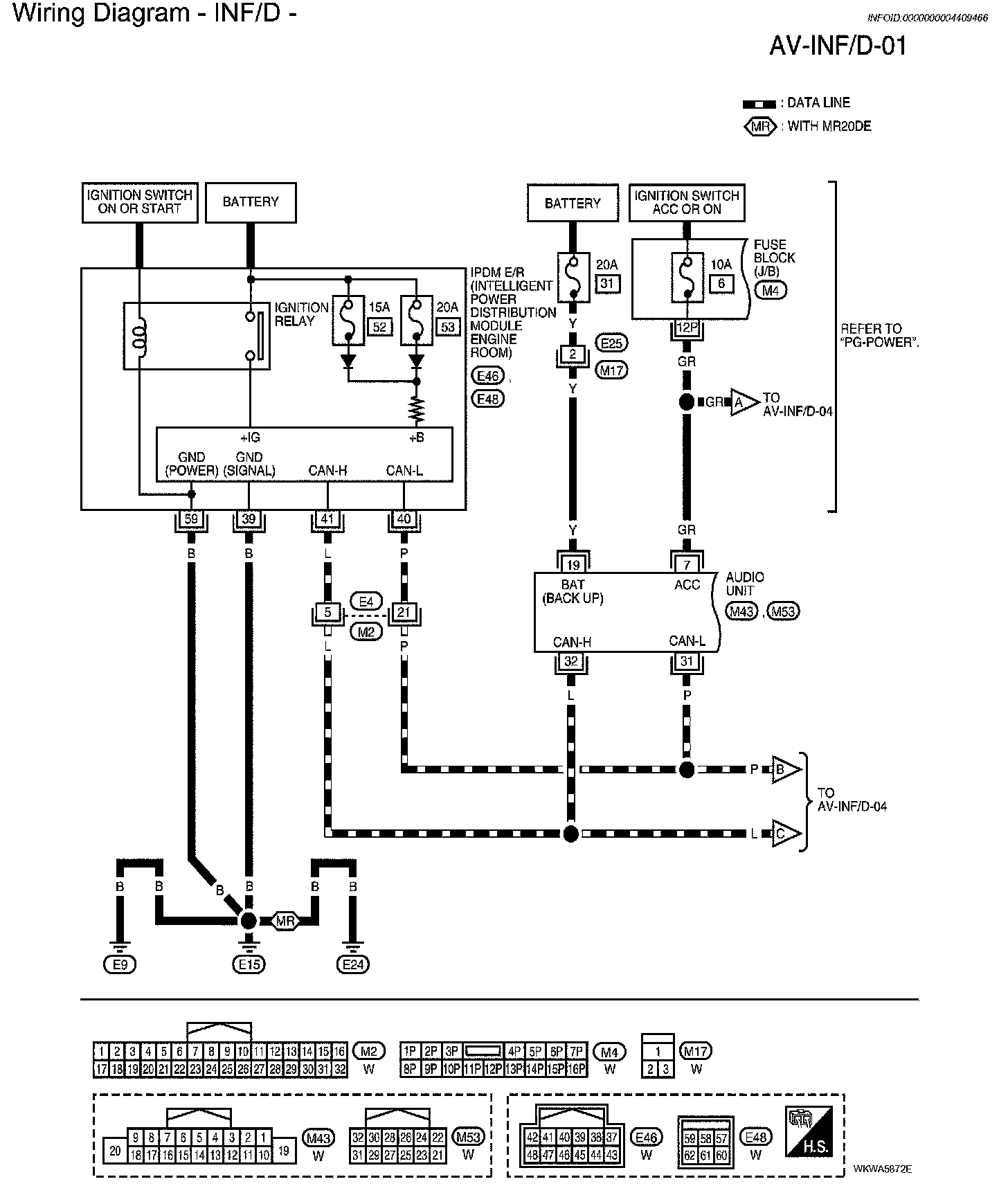

AV-INF/D-01:






WITHOUT BLUETOOTH

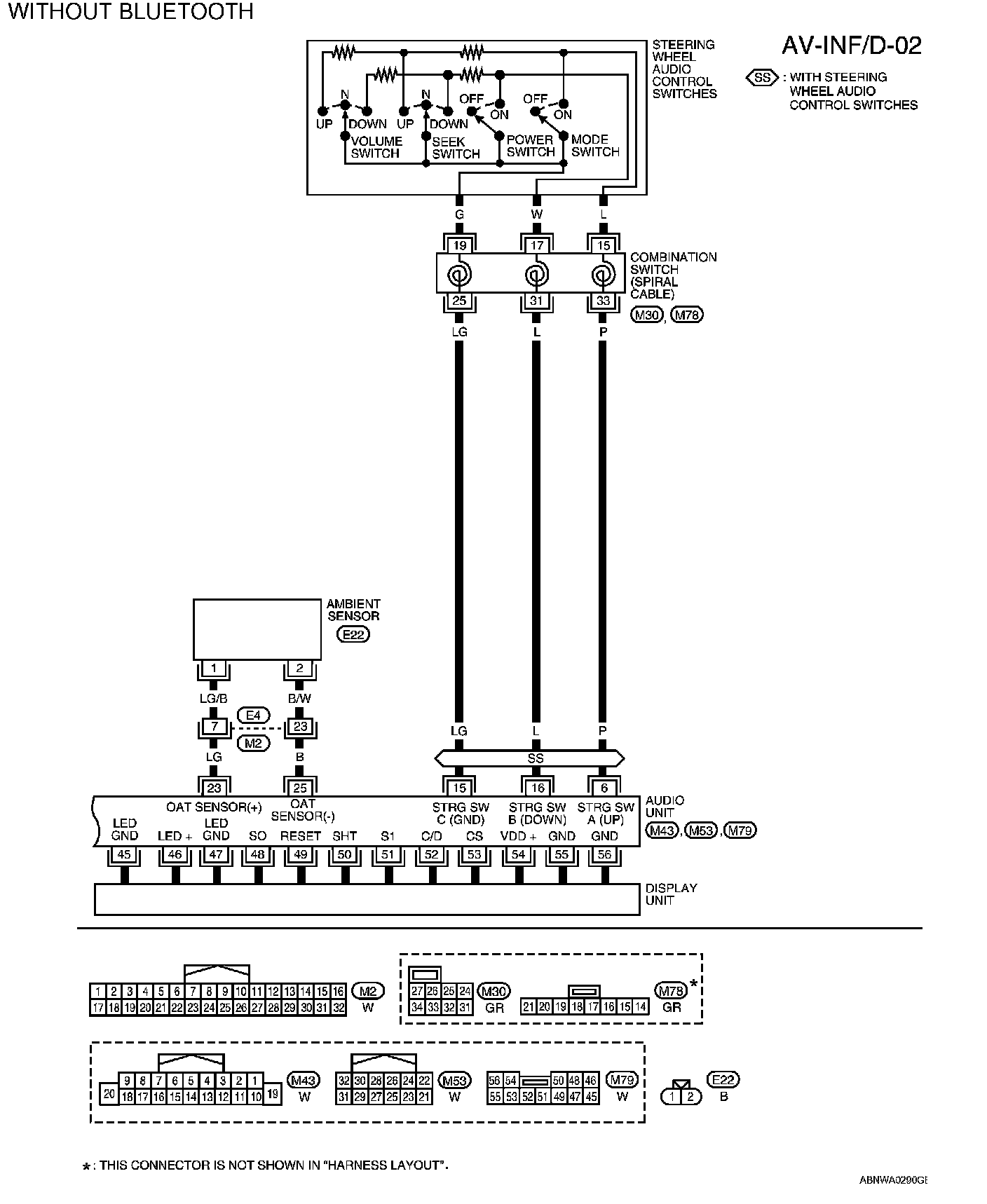

AV-INF/D-02:






WITH BLUETOOTH

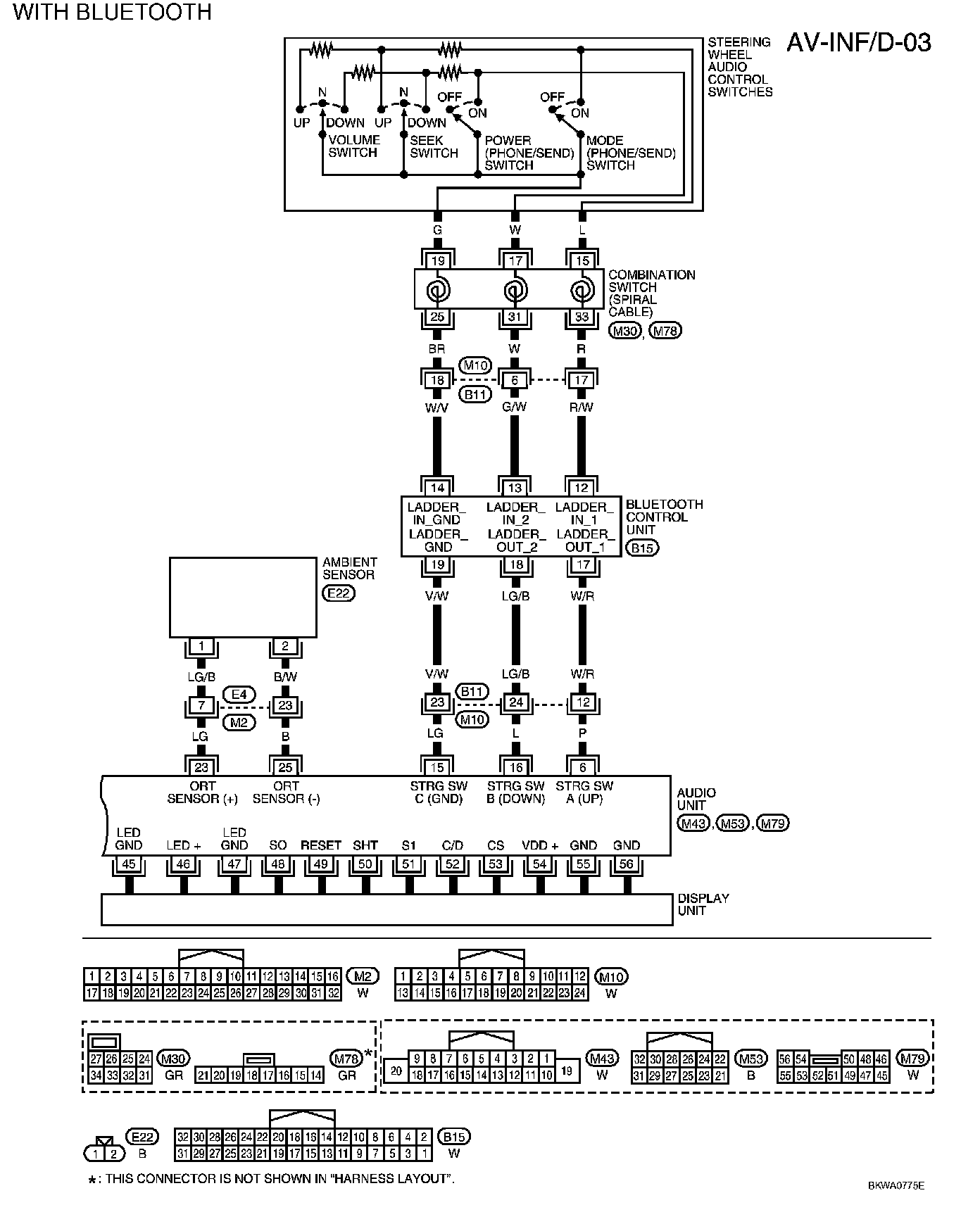

AV-INF/D-03:

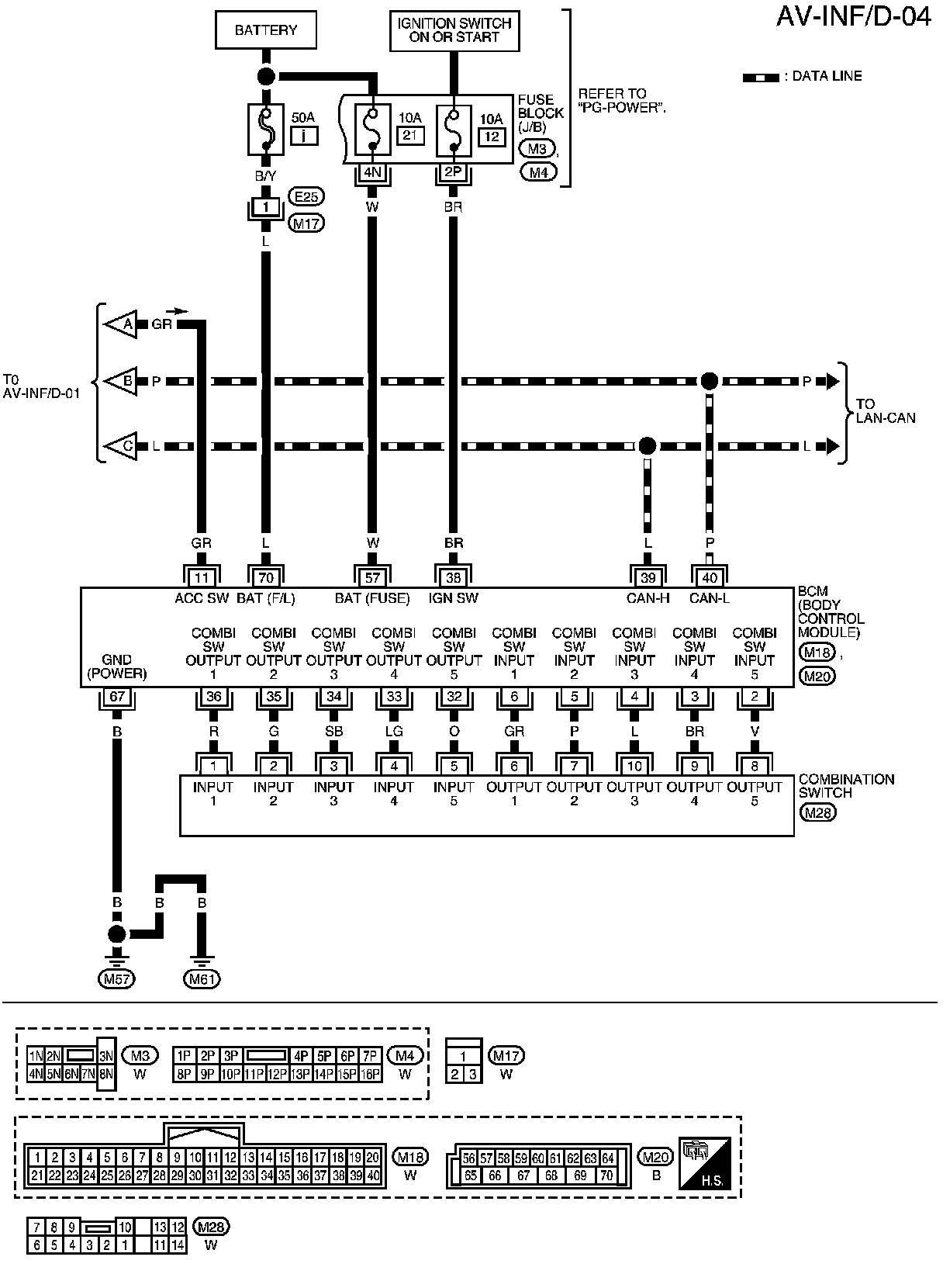

AV-INF/D-04:
