Nissan-Datsun
>>
2009
>>
Sentra L4-2.0L (MR20DE)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Lighting and Horns
>>
Turn Signals
>>
System Diagram
System Diagram
TURN SIGNAL AND
HAZARD WARNING LAMPS
Wiring Diagram - TURN -

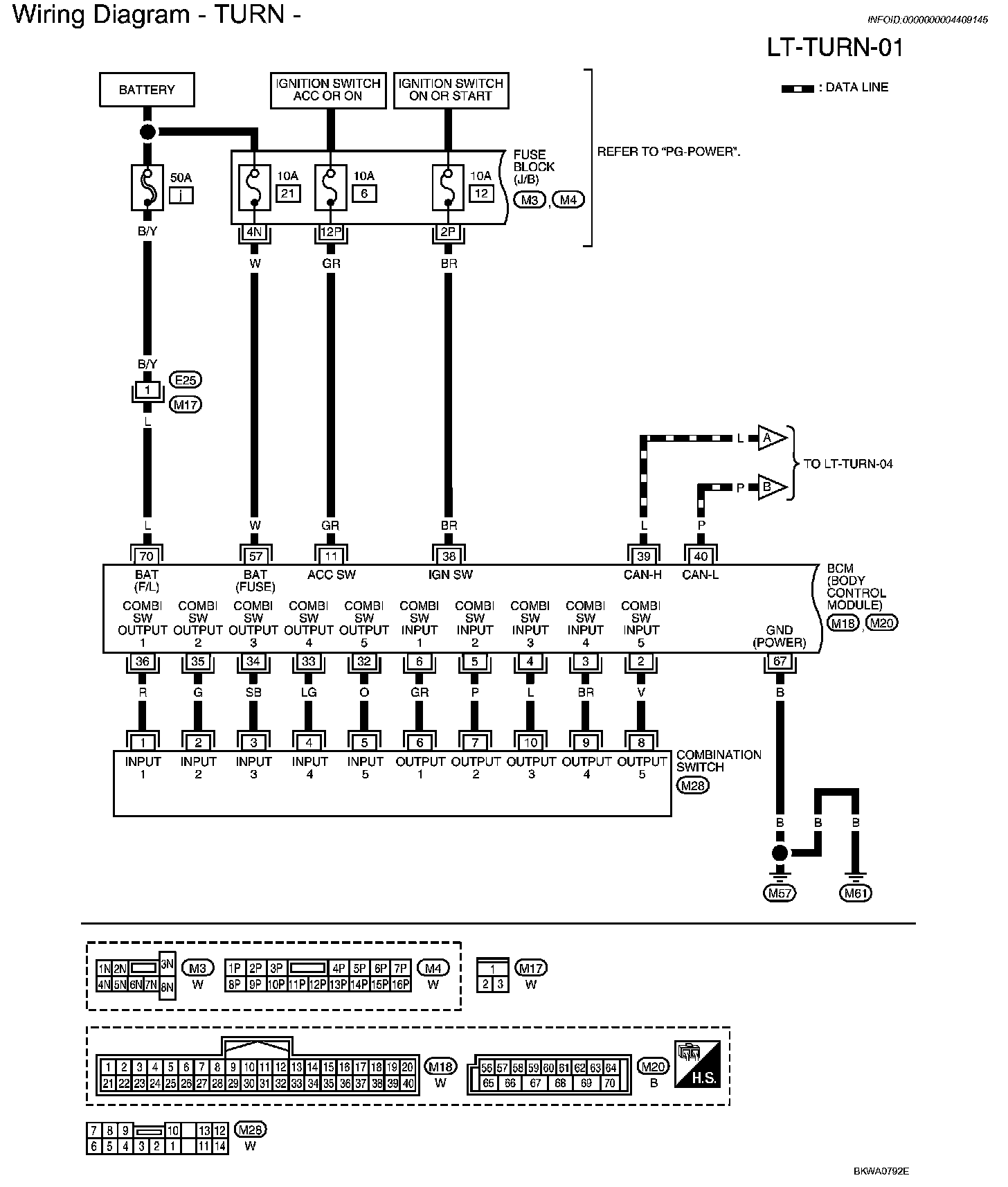

LT-TURN-01:

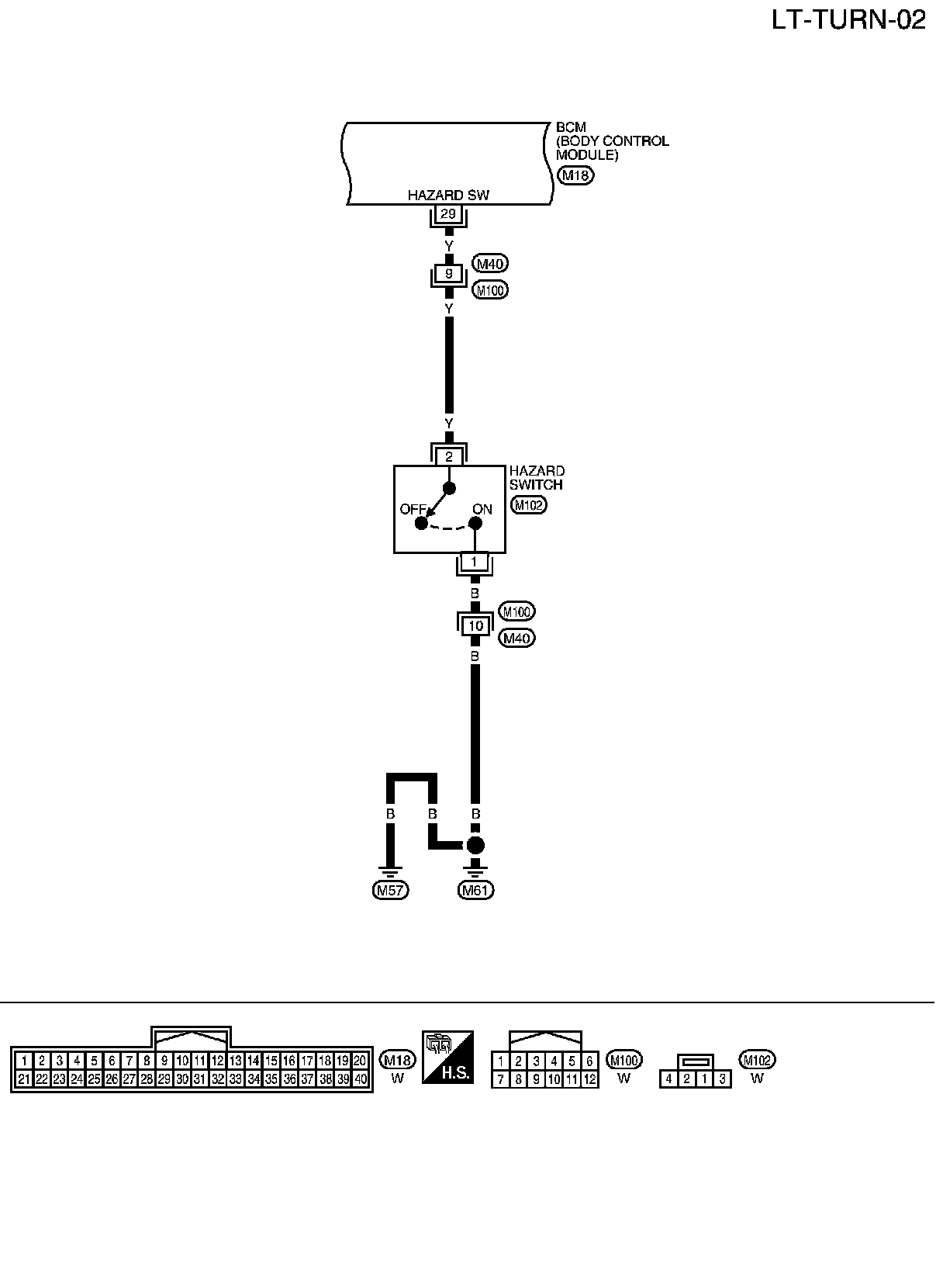

LT-TURN-02:
LT-TURN-03:

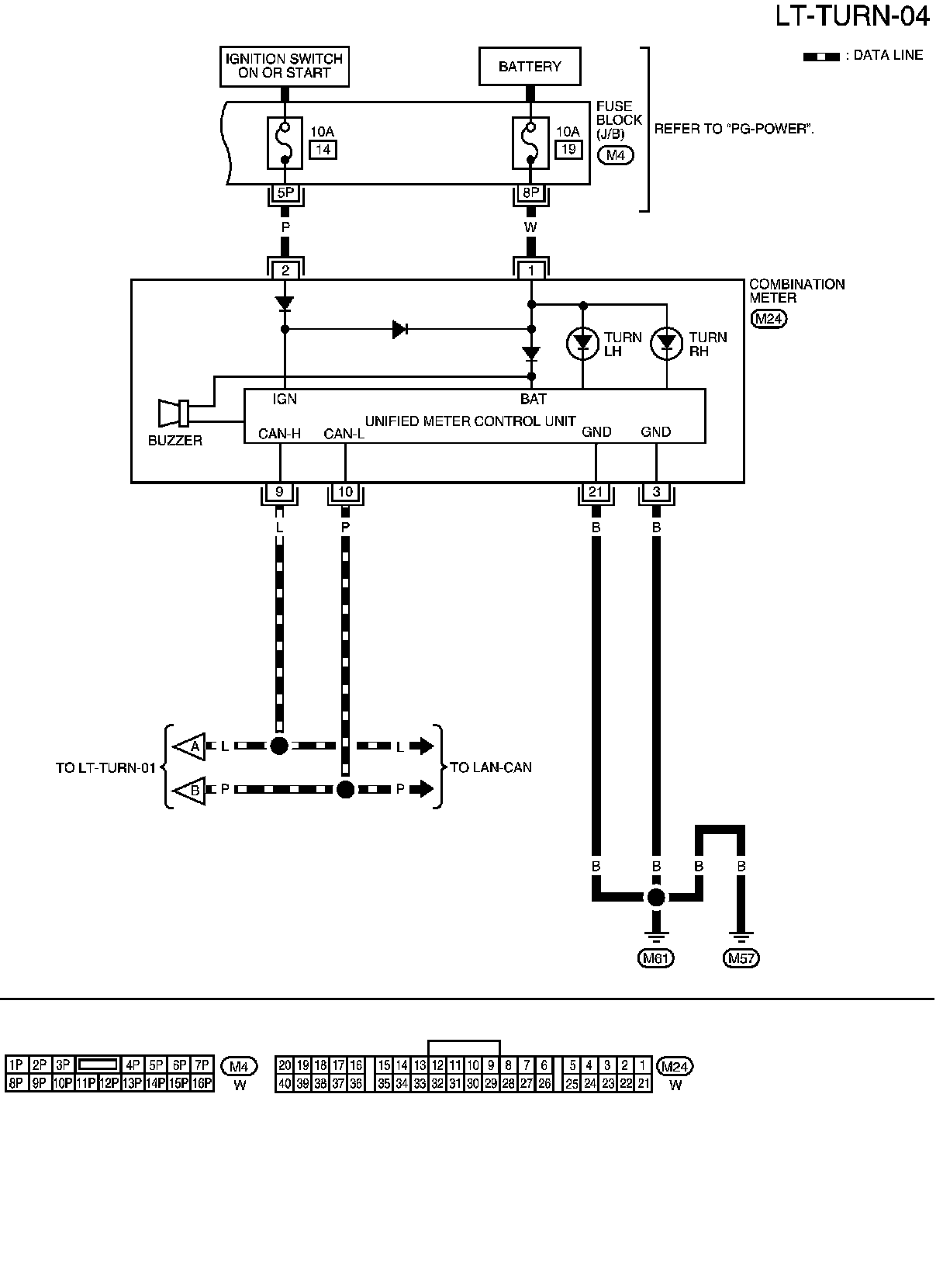

LT-TURN-04:
