Home >> Nissan-Datsun >> 2009 >> Sentra L4-2.0L (MR20DE) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Lighting and Horns >> Tail Lamp

Tail Lamp





PARKING, LICENSE PLATE AND TAIL LAMPS


Wiring Diagram - TAIL/L -


LT-TAIL/L-01:

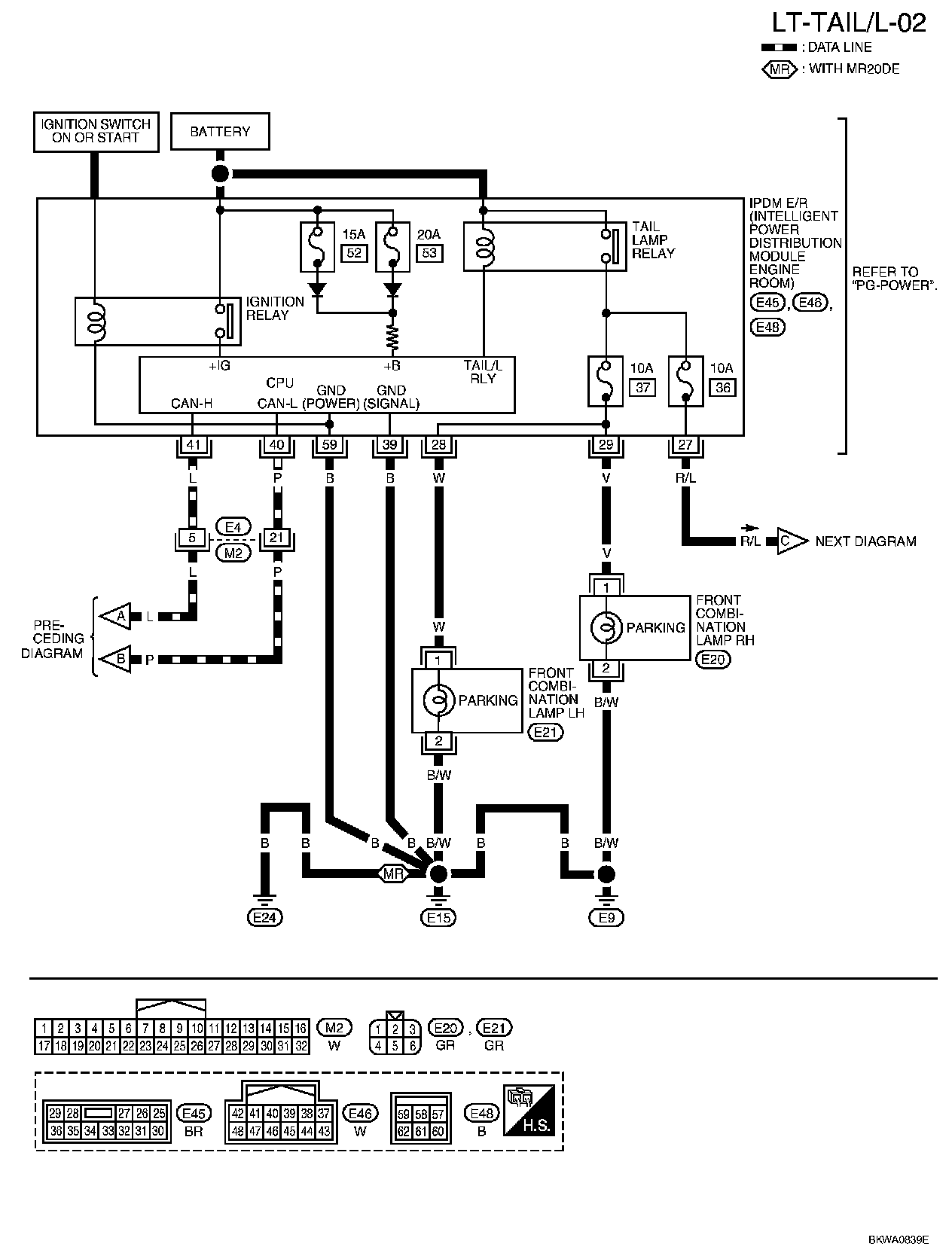

LT-TAIL/L-02:

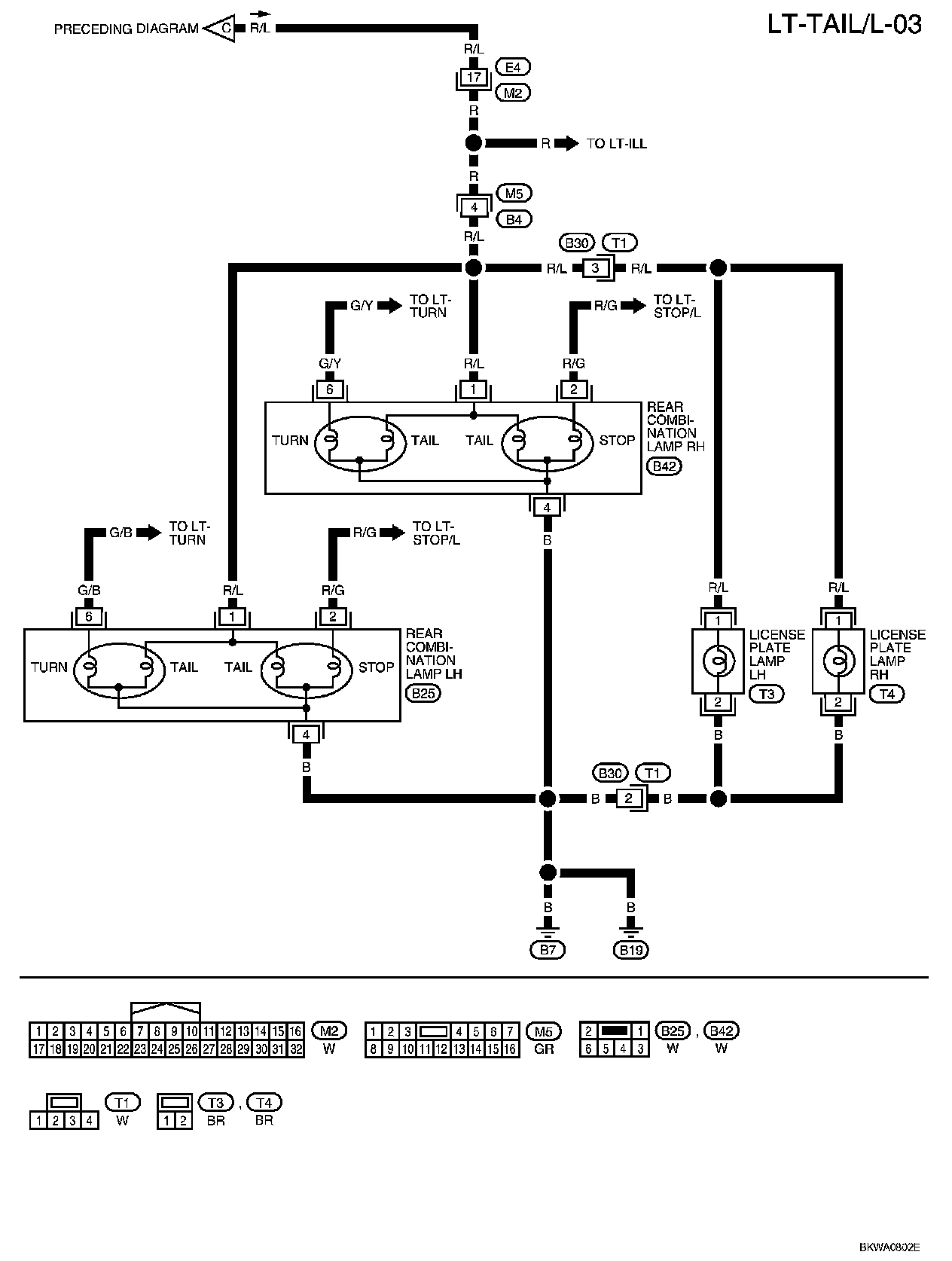

LT-TAIL/L-03:
