System Diagram





ILLUMINATION


Wiring Diagram - ILL -

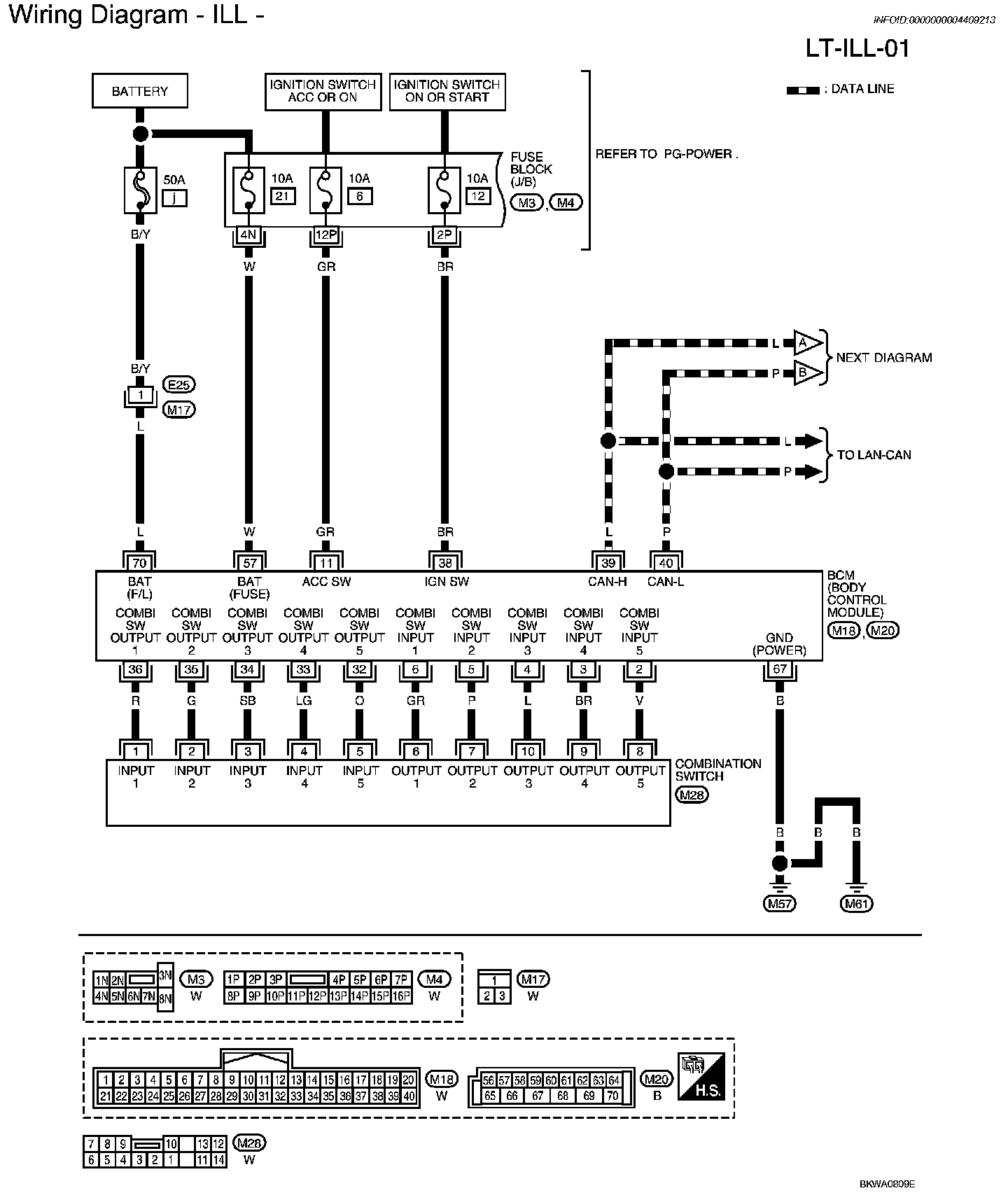

LT-ILL-01:

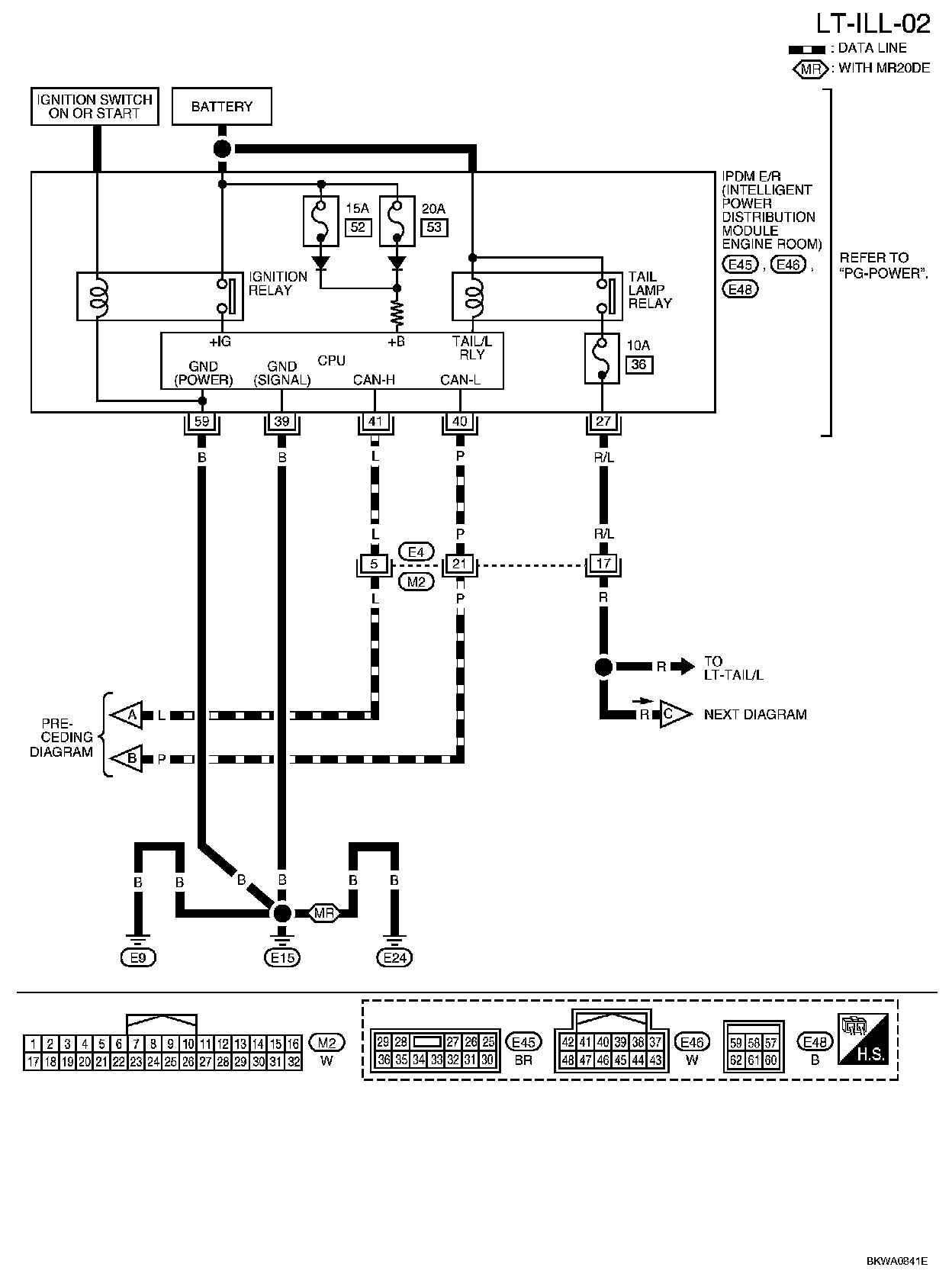

LT-ILL-02:

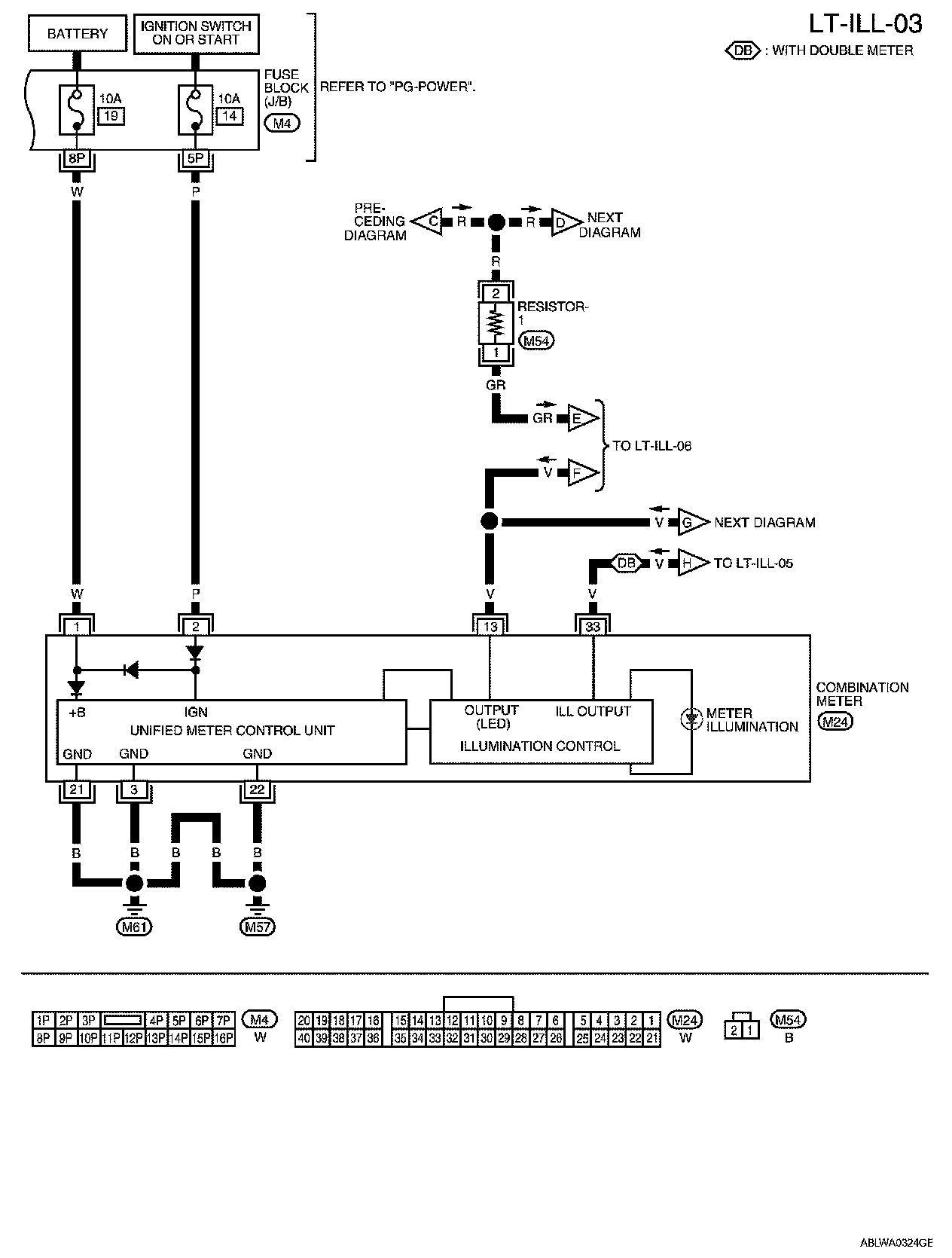

LT-ILL-03:

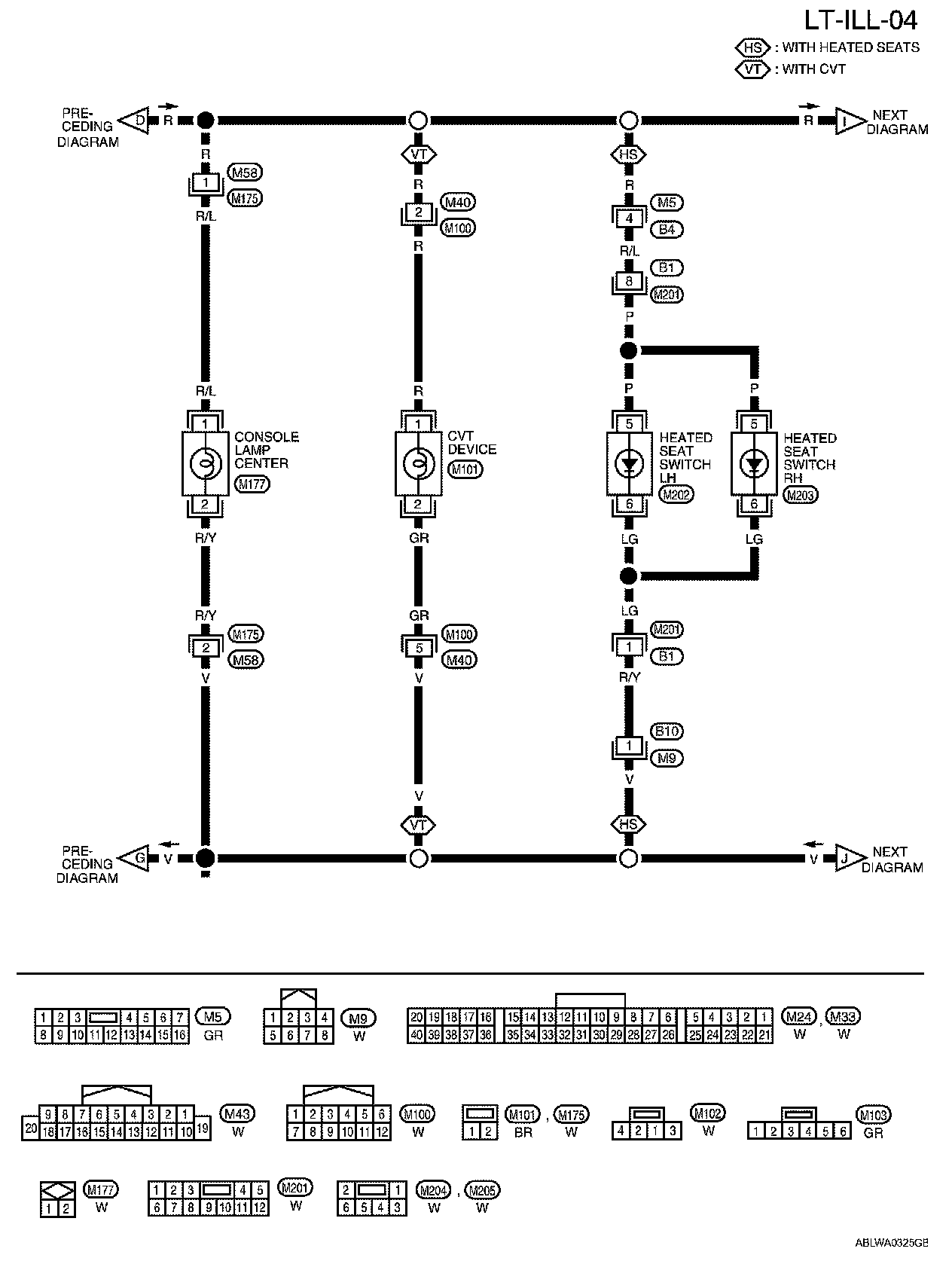

LT-ILL-04:






LT-ILL-05:

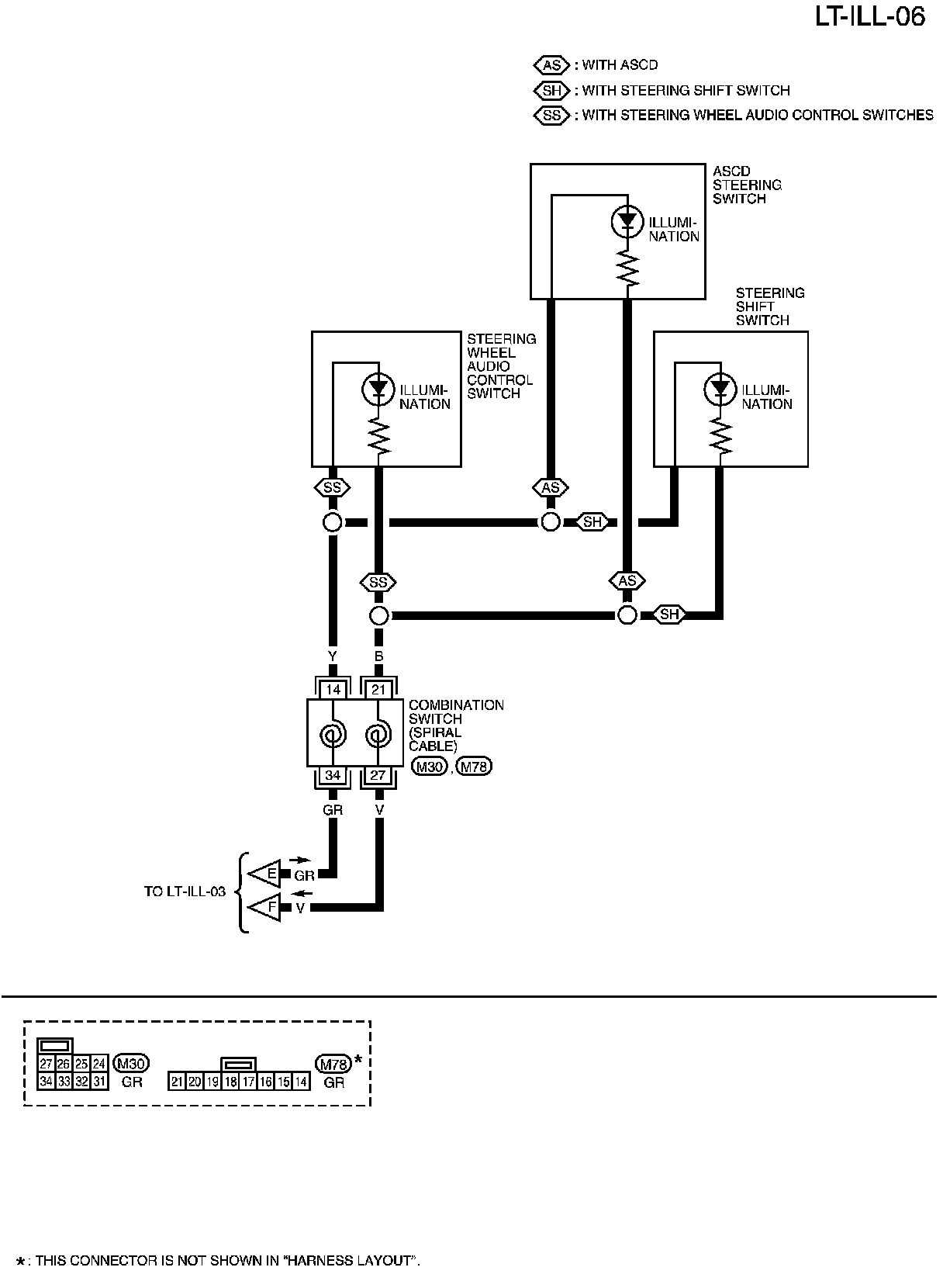

LT-ILL-06:
