Wiring Diagram - A/C





TROUBLE DIAGNOSIS


Wiring Diagram - A/C,M -


MTC-A/C, M-01:

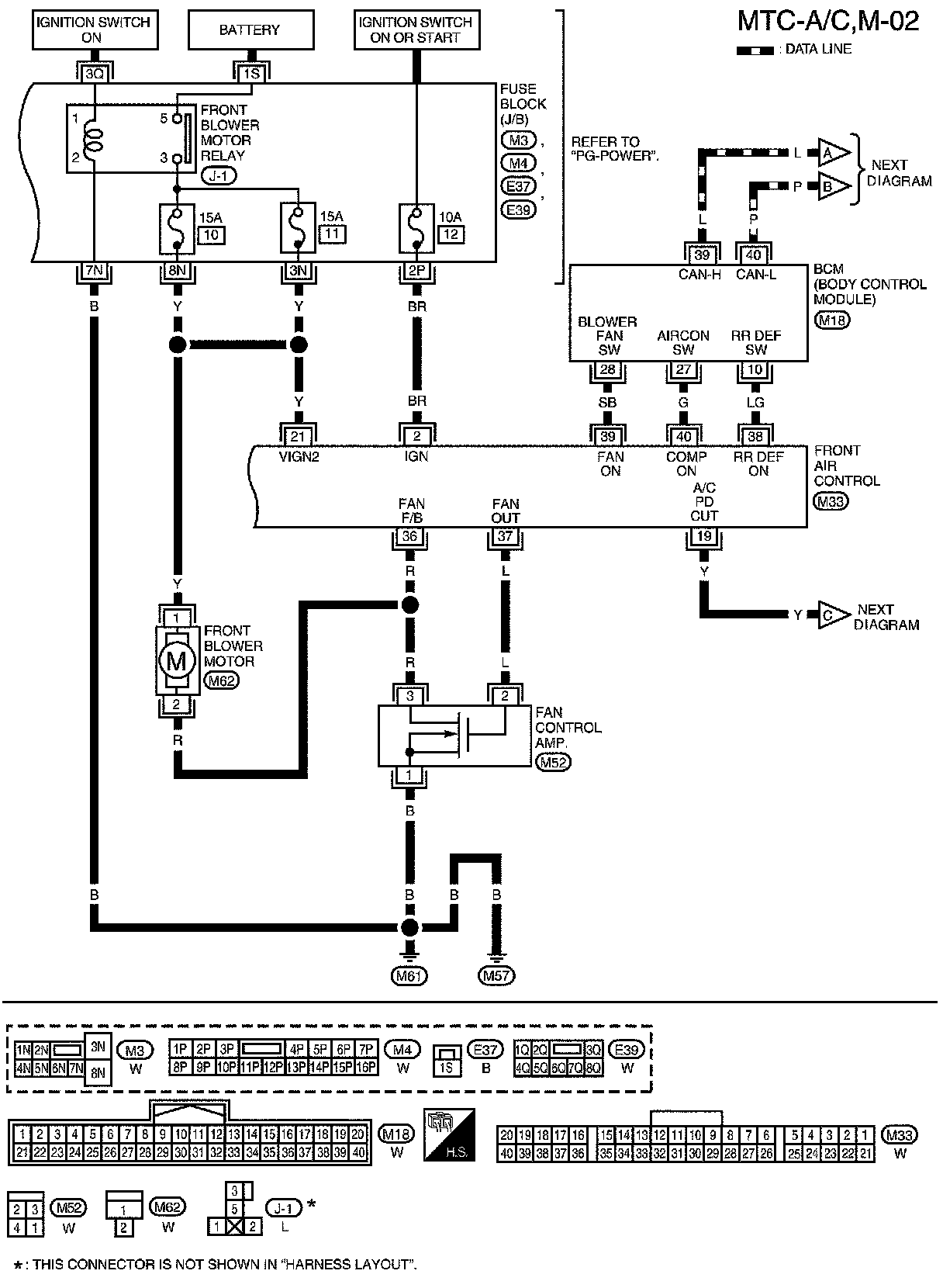

MTC-A/C, M-02:

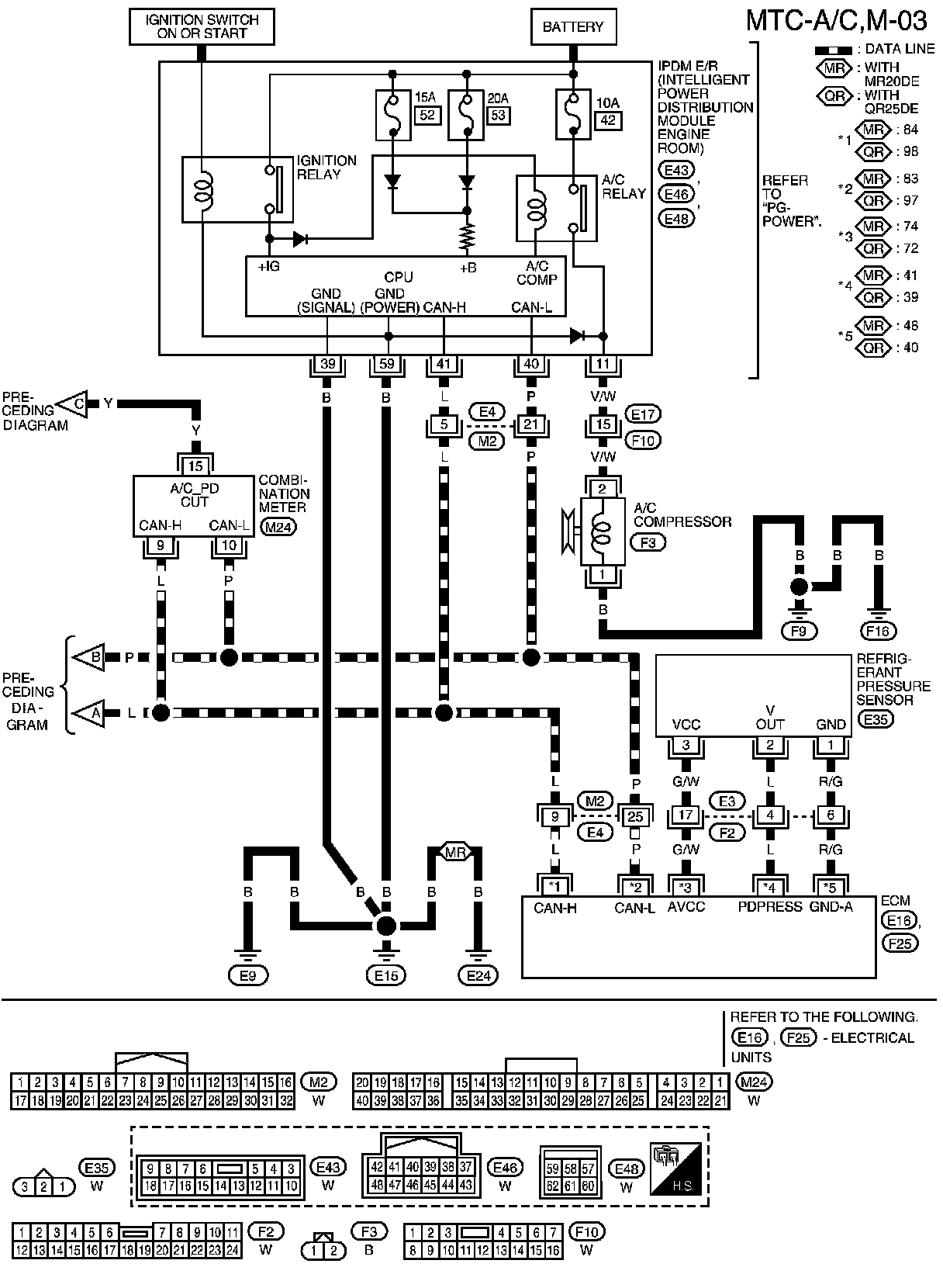

MTC-A/C, M-03:
