AV-AUDIO

AUDIO

Wiring Diagram - AUDIO -

BASE SYSTEM

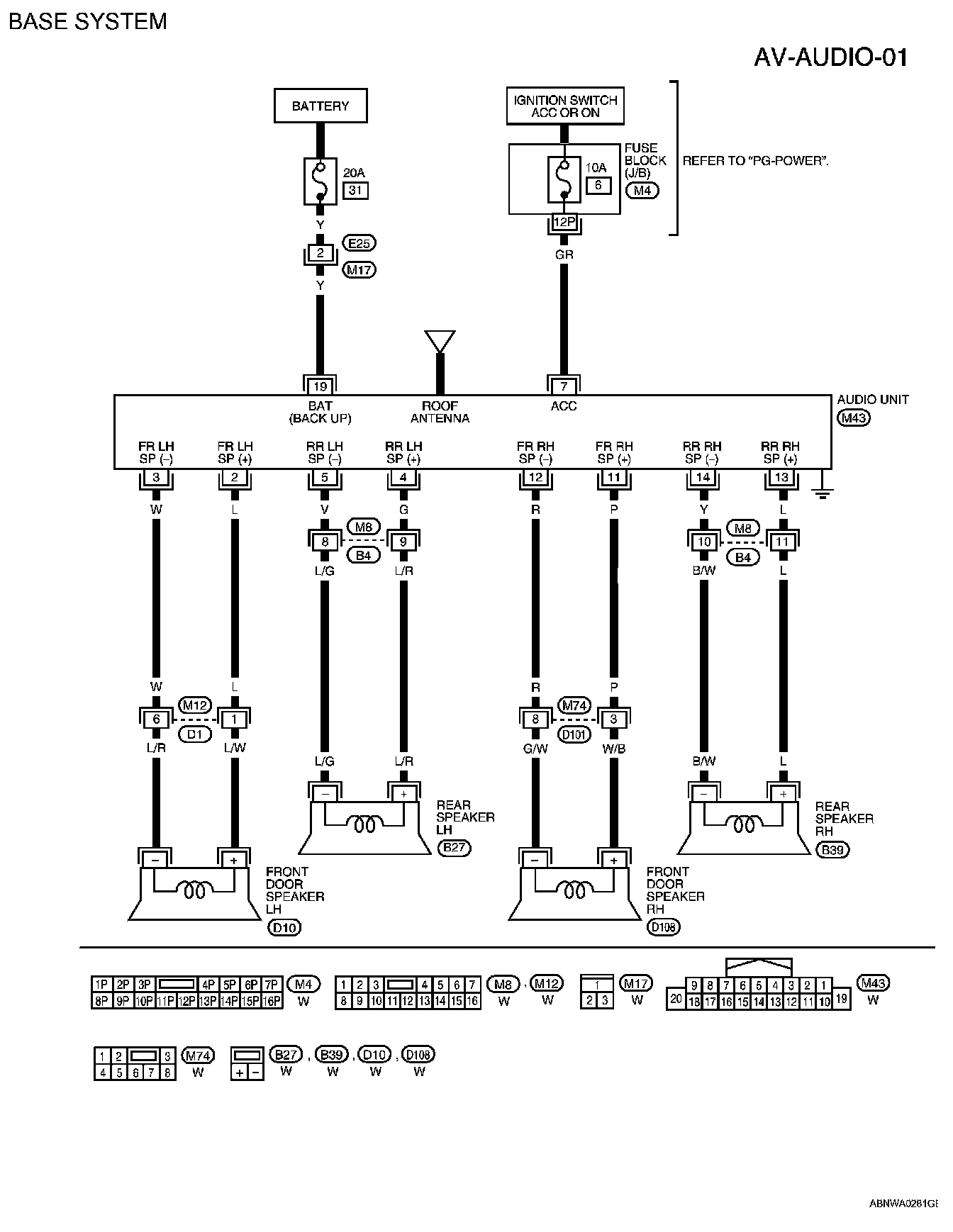

AV-AUDIO-01:

MID SYSTEM

AV-AUDIO-02:

AV-AUDIO-03:

Without Bluetooth

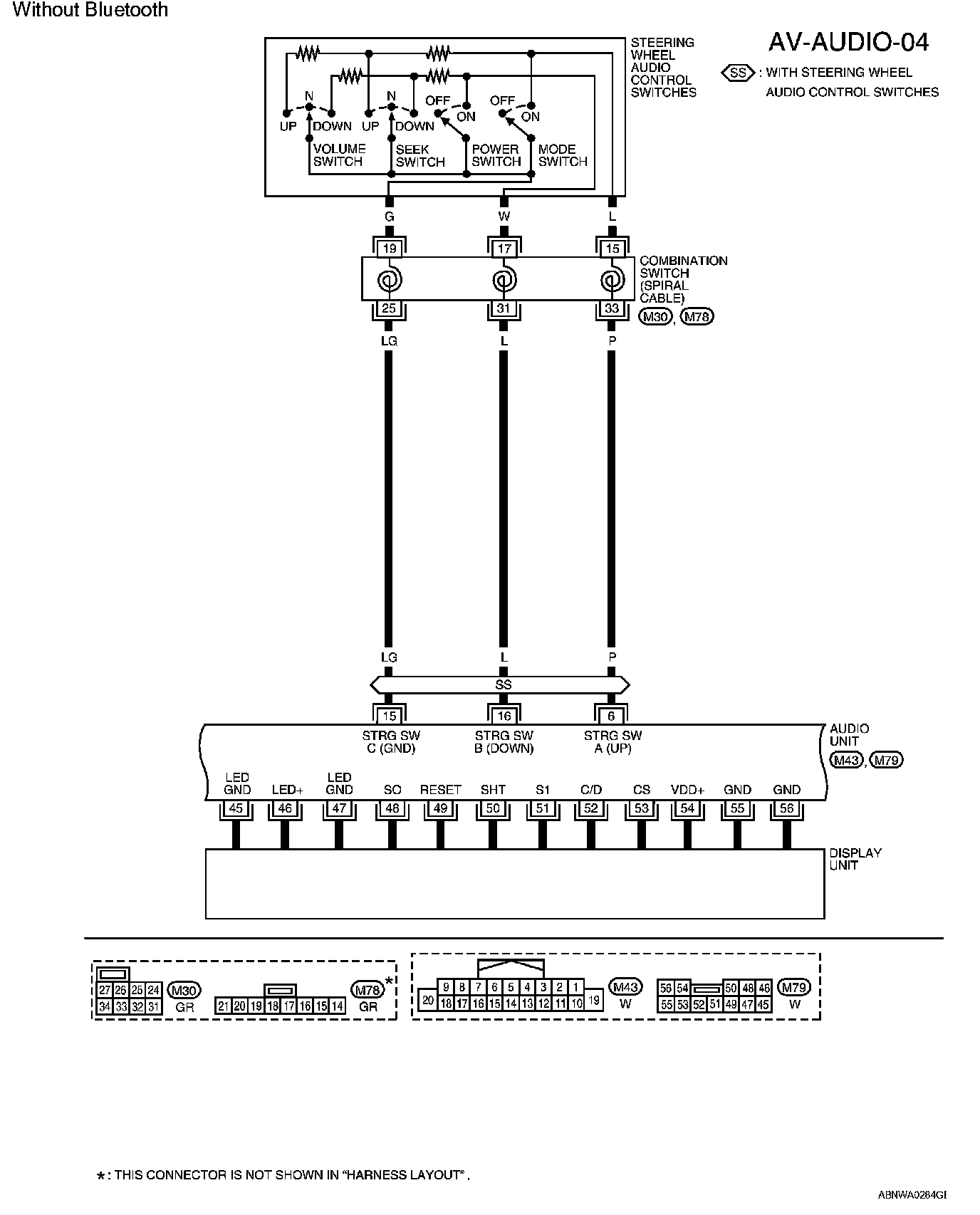

AV-AUDIO-04:

With Bluetooth

AV-AUDIO-05:

PREMIUM SYSTEM

AV-AUDIO-06:

AV-AUDIO-07:

AV-AUDIO-08:

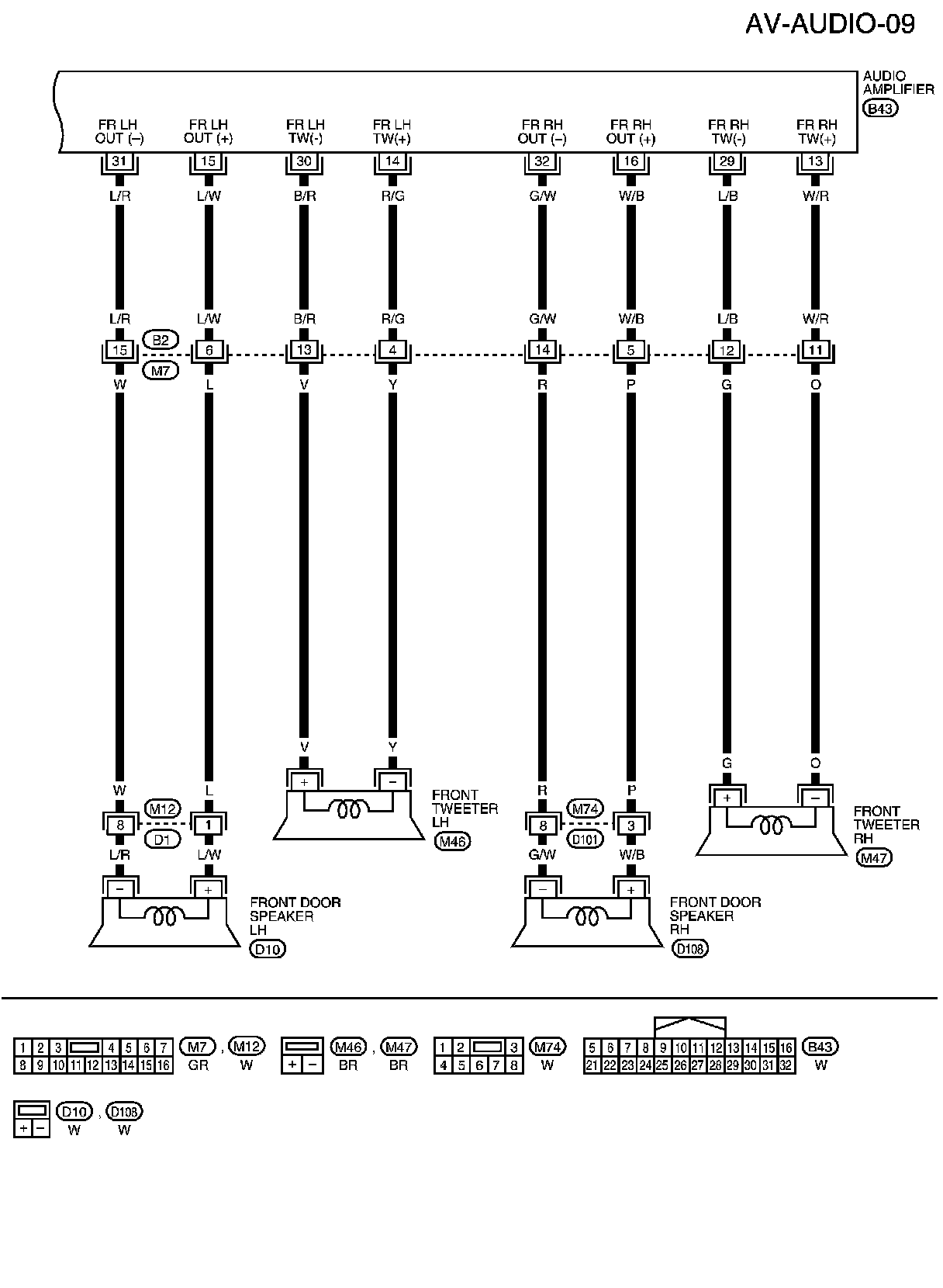

AV-AUDIO-09:

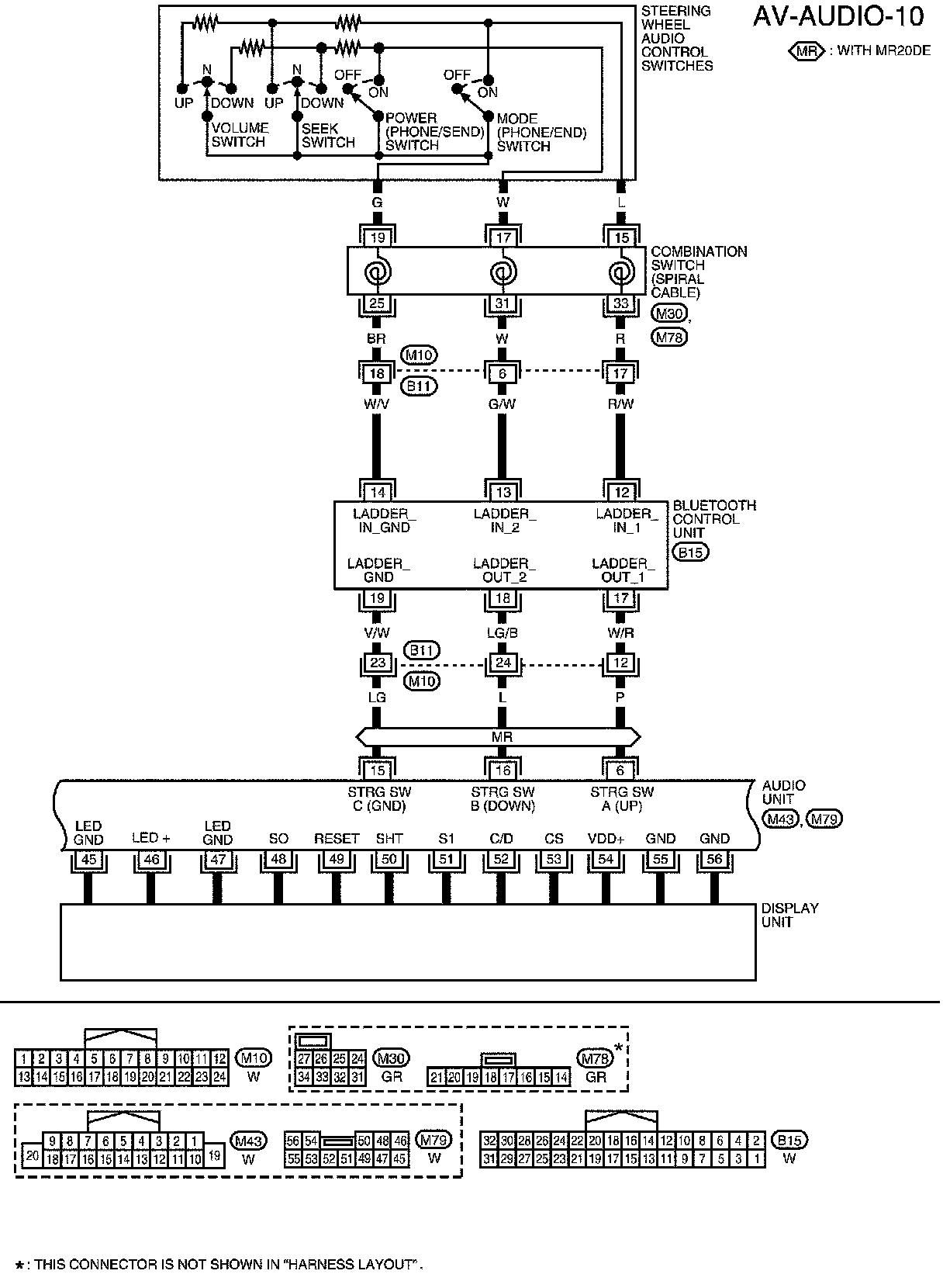

AV-AUDIO-10:

AV-AUDIO-11:
