NATS (Nissan Anti-Theft System)

NATS(NISSAN ANTI-THEFT SYSTEM)

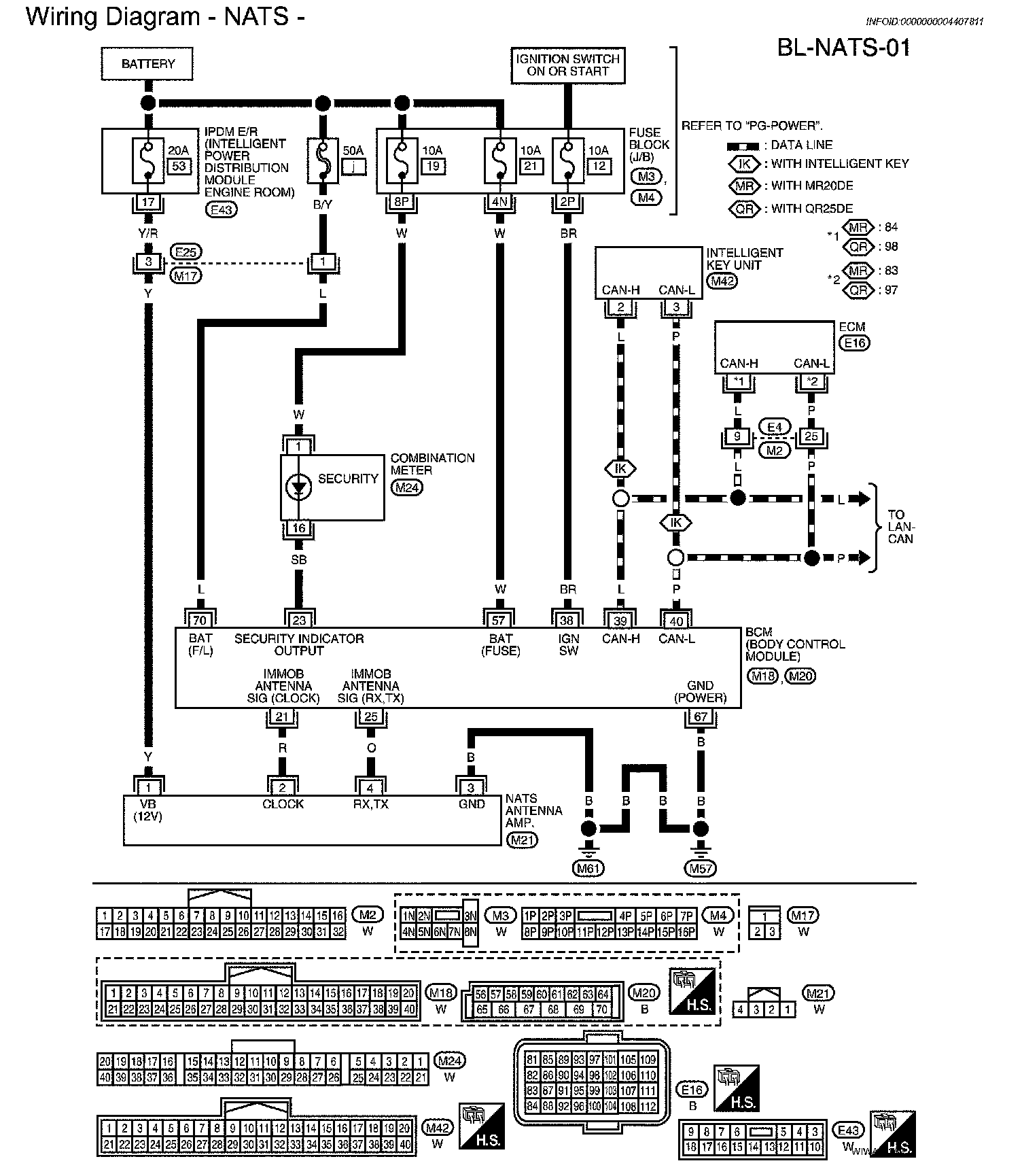

Wiring Diagram - NATS -

BL-NATS-01:
