BL - VEHSEC





VEHICLE SECURITY (THEFT WARNING) SYSTEM


Wiring Diagram - VEHSEC -

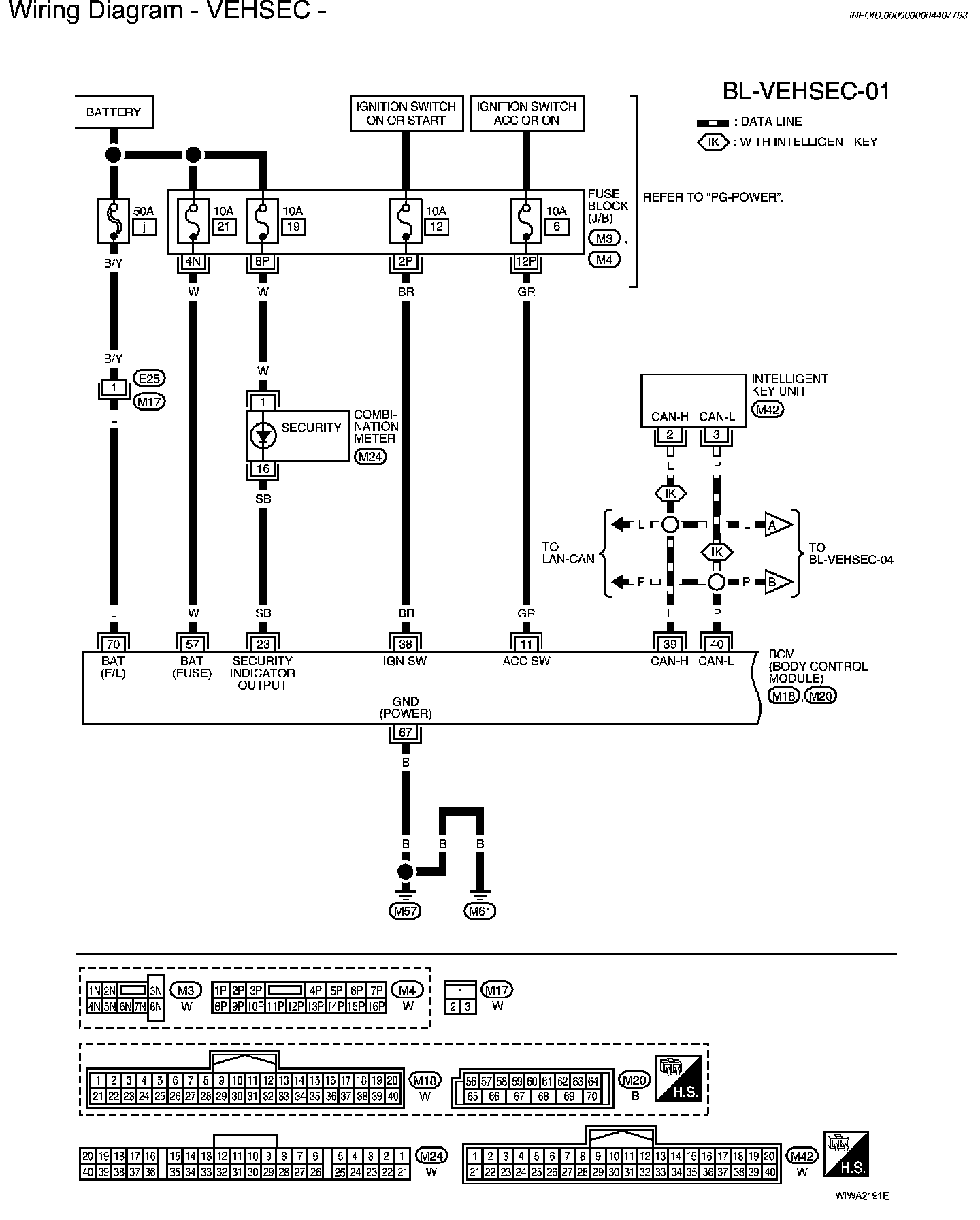

BL-VEHSEC-01:

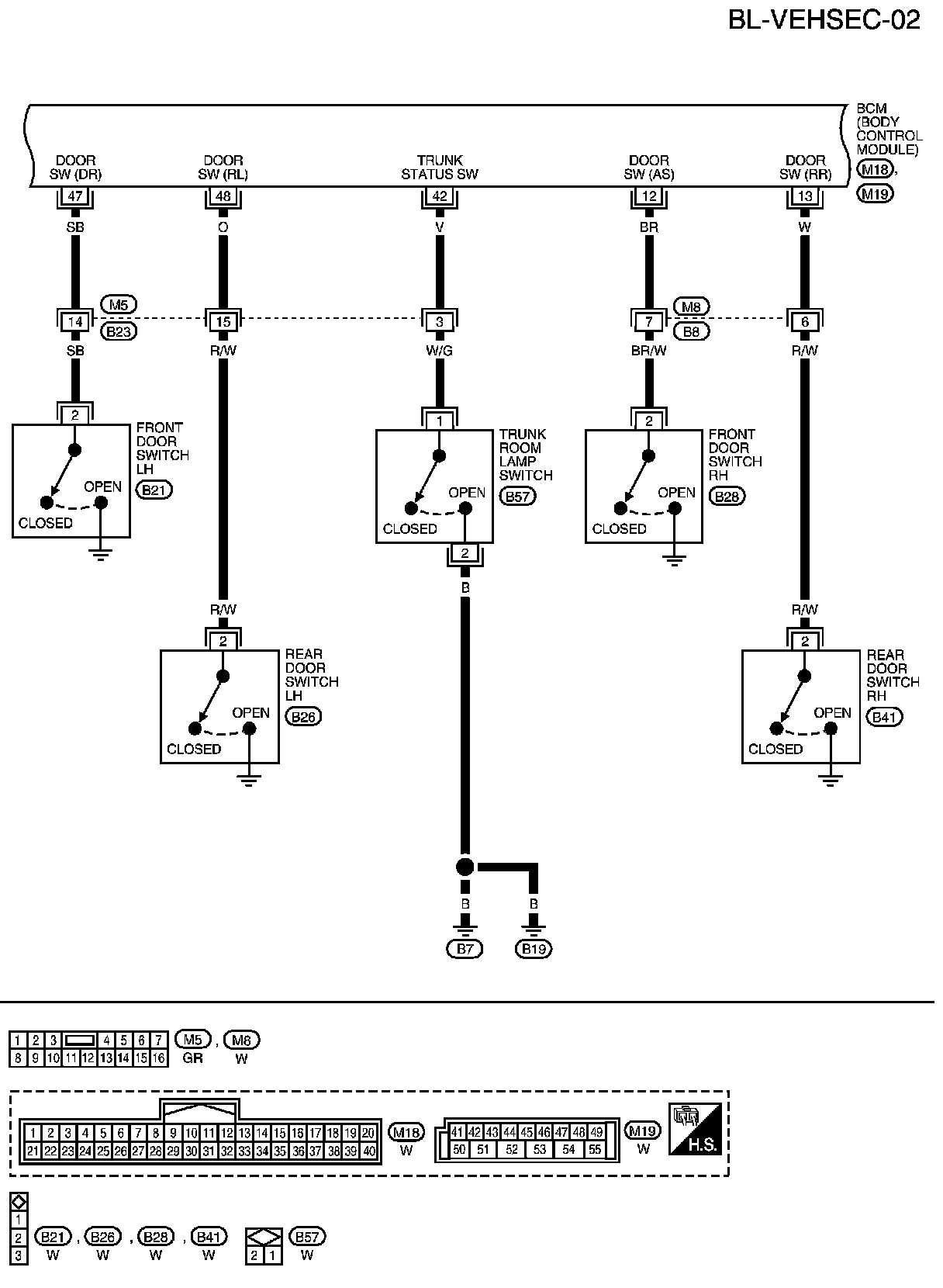

BL-VEHSEC-02:

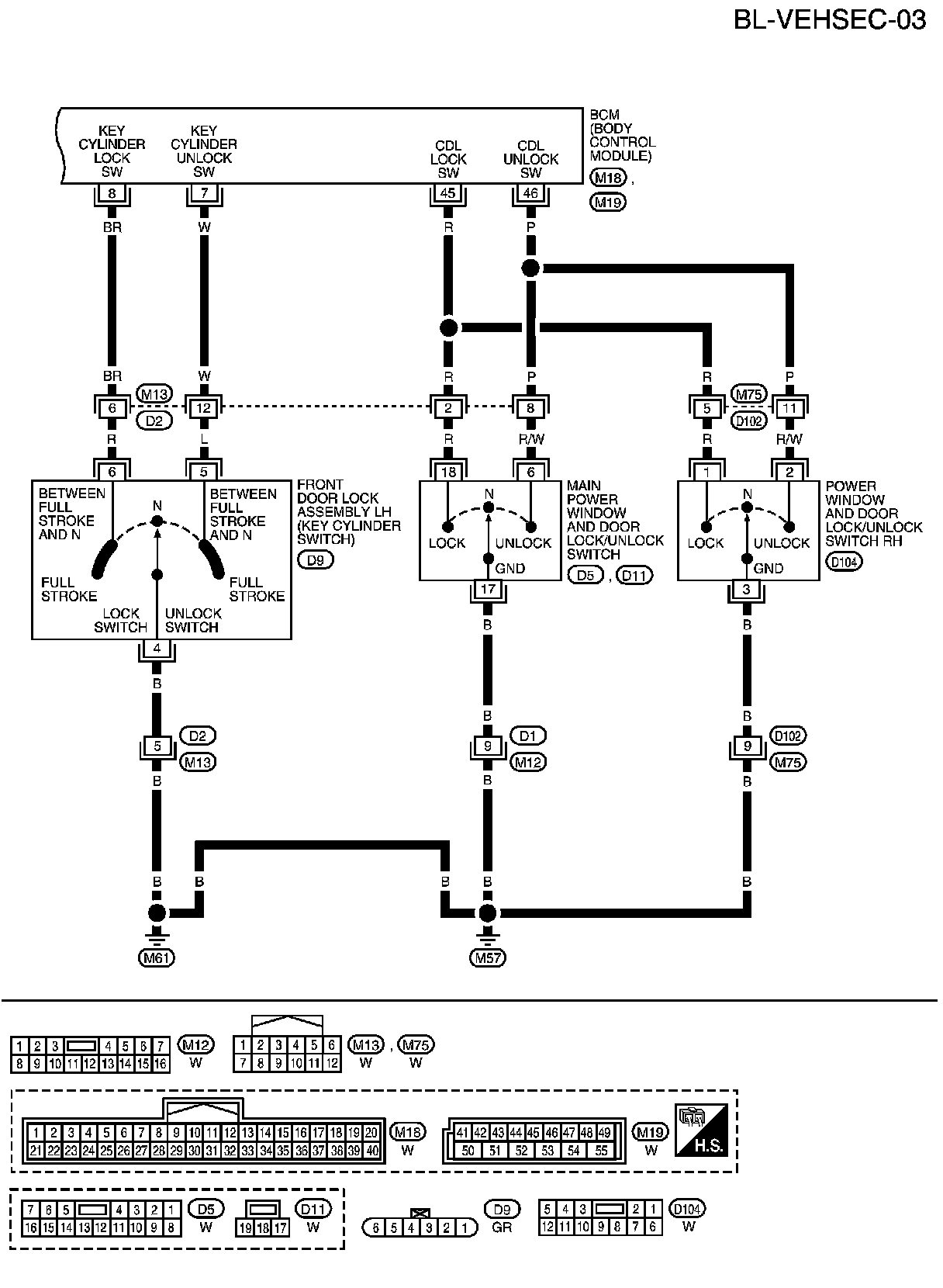

BL-VEHSEC-03:

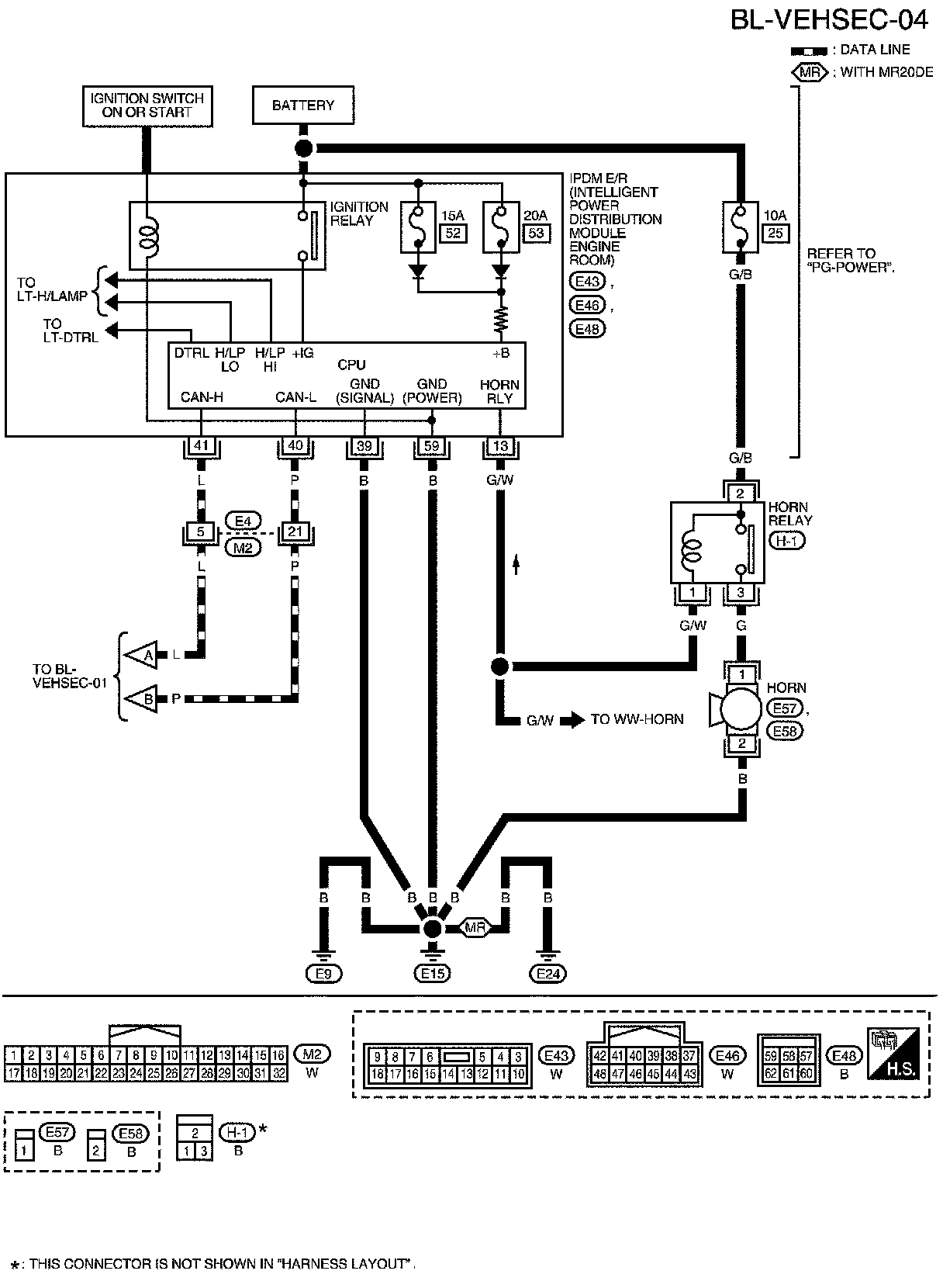

BL-VEHSEC-04:
