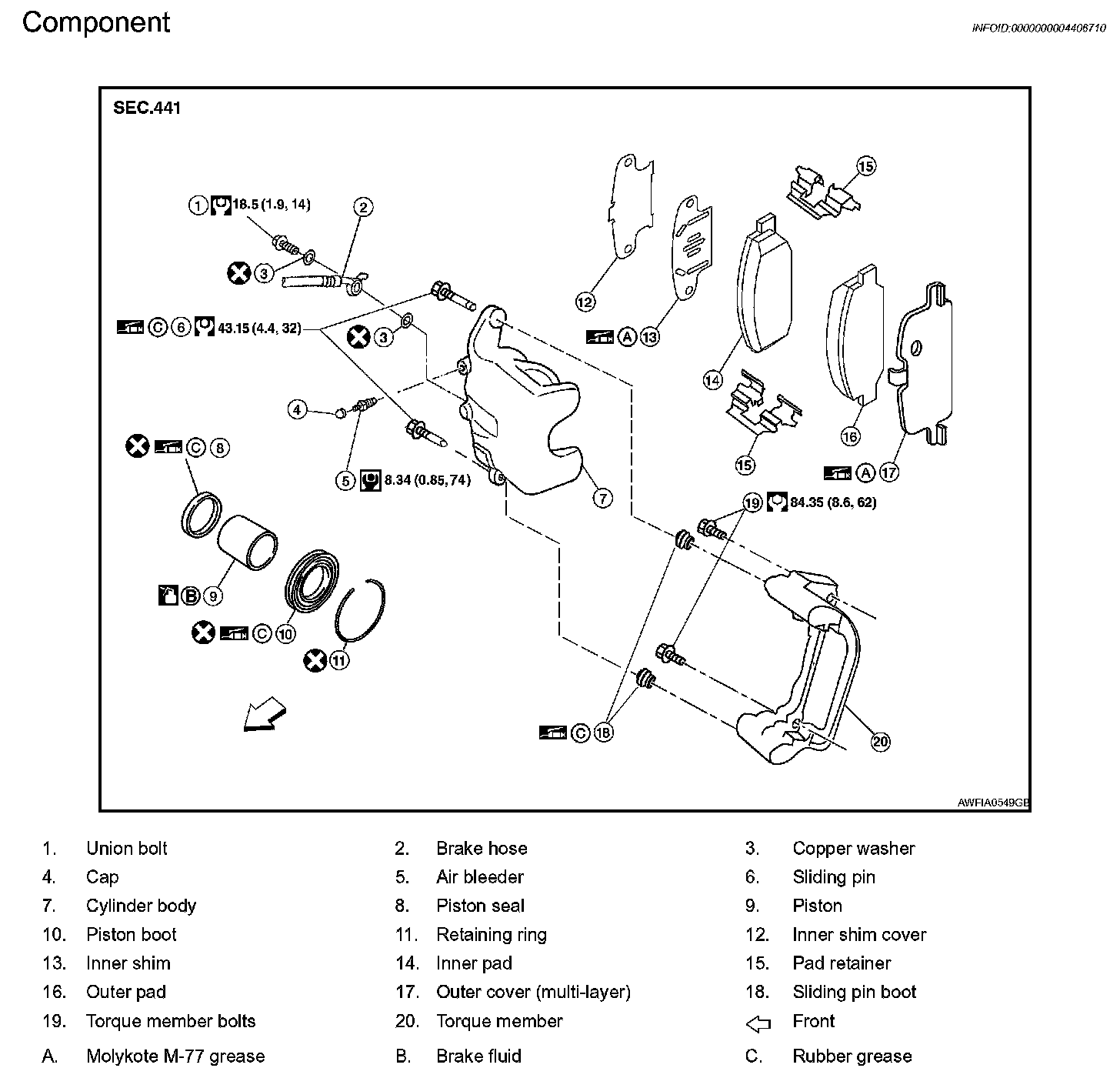

Exploded View

REAR DISC BRAKE

Component

CAUTION:
- Clean dust with a vacuum dust collector. Do not blow with compressed air.
- Make sure parking brake lever is released completely.
