Disassembly and Assembly





REAR SEAT


Disassembly and Assembly


60:40 SPLIT FOLD DOWN SEAT ARMREST

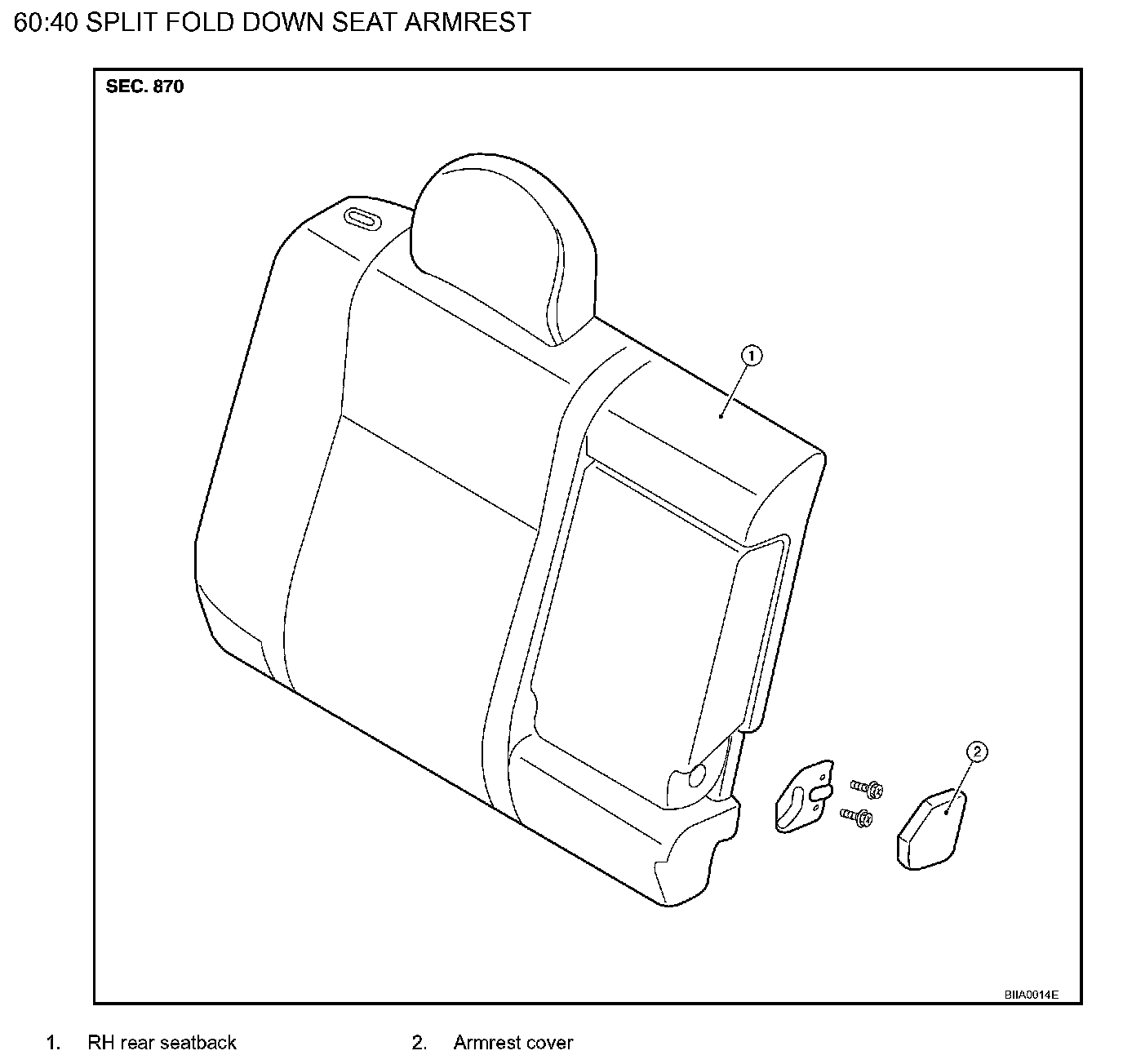

Disassembly of Armrest
1. Fold up the backside of the seatback and then remove the armrest cover.
2. Remove the armrest from the seatback.

Assembly of Armrest
Assembly is in the reverse order of disassembly.

Disassembly of Seatback Trim and Pad
1. Remove the headrest.





2. Remove the retainer under the back of seatback.

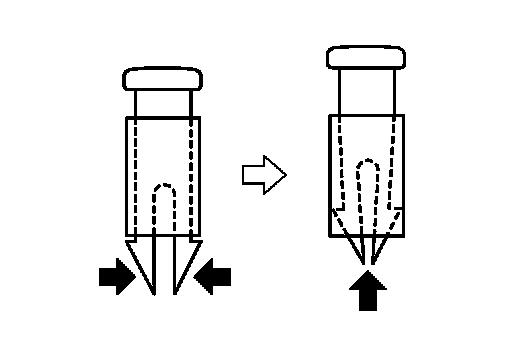

4. Remove the headrest holder.





5. Remove the armrest. Refer to "Disassembly of Armrest ".
6. Remove the seatback trim.
7. Remove the seatback pad from the seatback frame.

Assembly of Seatback Trim and Pad
Assembly is in the reverse order of disassembly.
- Before installing headrest holder, check its orientation (front/rear and right/left).

Disassembly of Seat Cushion Trim and Pad

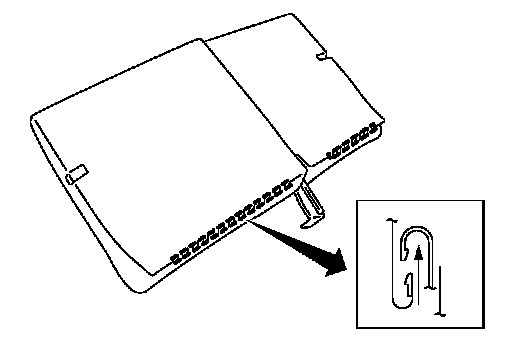

Remove the hog rings to separate the trim and pad.

Assembly of Seat Cushion Trim and Pad
Assembly is in the reverse order of disassembly.
