Disassembly and Assembly

FRONT SEAT


Disassembly and Assembly


SEAT CUSHION TRIM AND PAD






CAUTION:
- Front passenger seat is equipped with an Occupant Detection System sensor and control module. Do not disassemble front passenger seat cushion assembly or remove the trim as this will affect the Occupant Detection System calibration.
- During installation, the wire harness clips must be installed in the holes they were originally in. Do not add additional clips.
- When removing or installing the seat trim, handle it carefully to keep dirt out and avoid damage.

Disassembly
1. Remove seat. Refer to Removal and Installation .

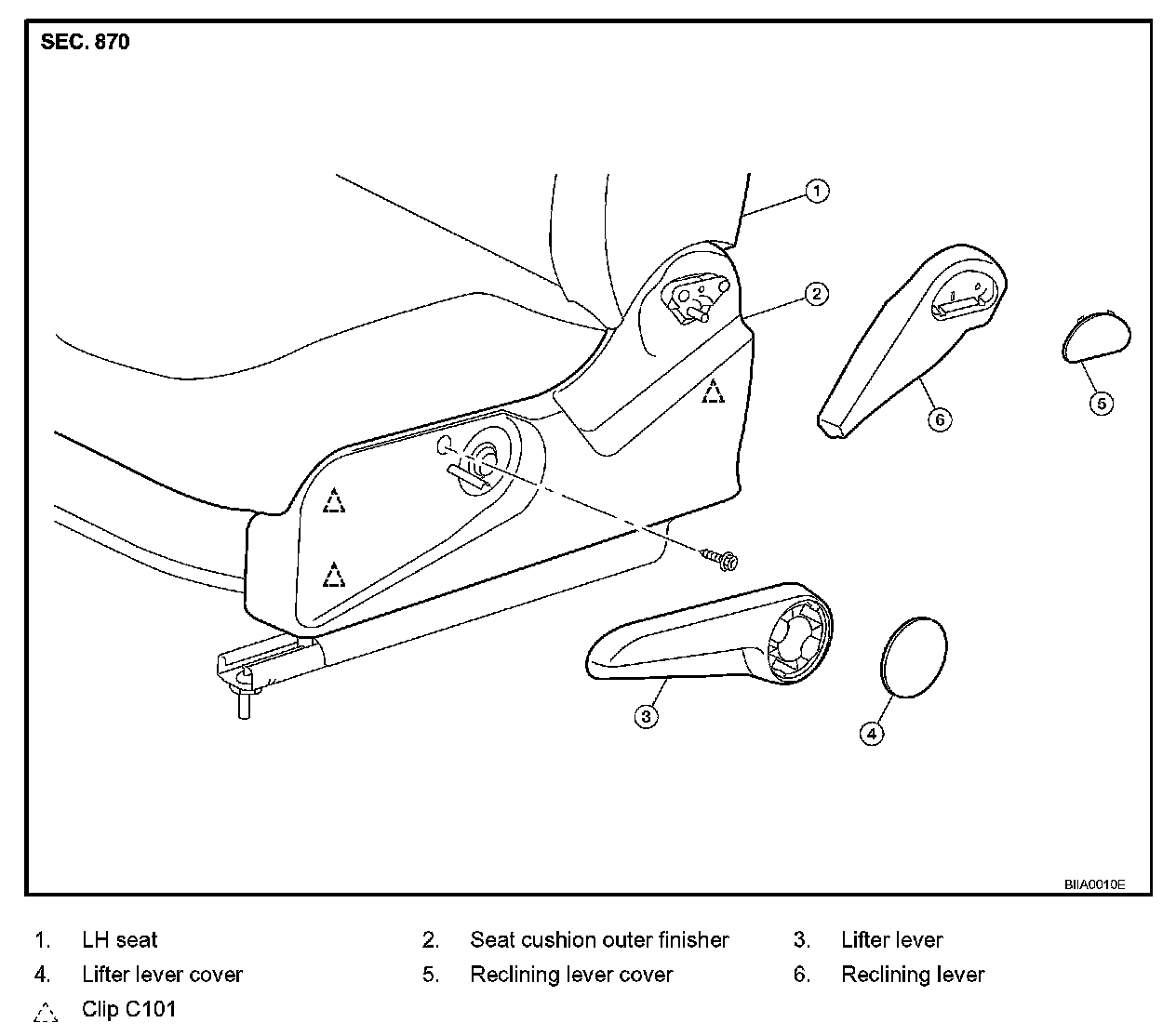

2. Remove the recliner lever and lifter level (if equipped).
3. Remove the inner and outer front seat cushion finishers.

NOTE:

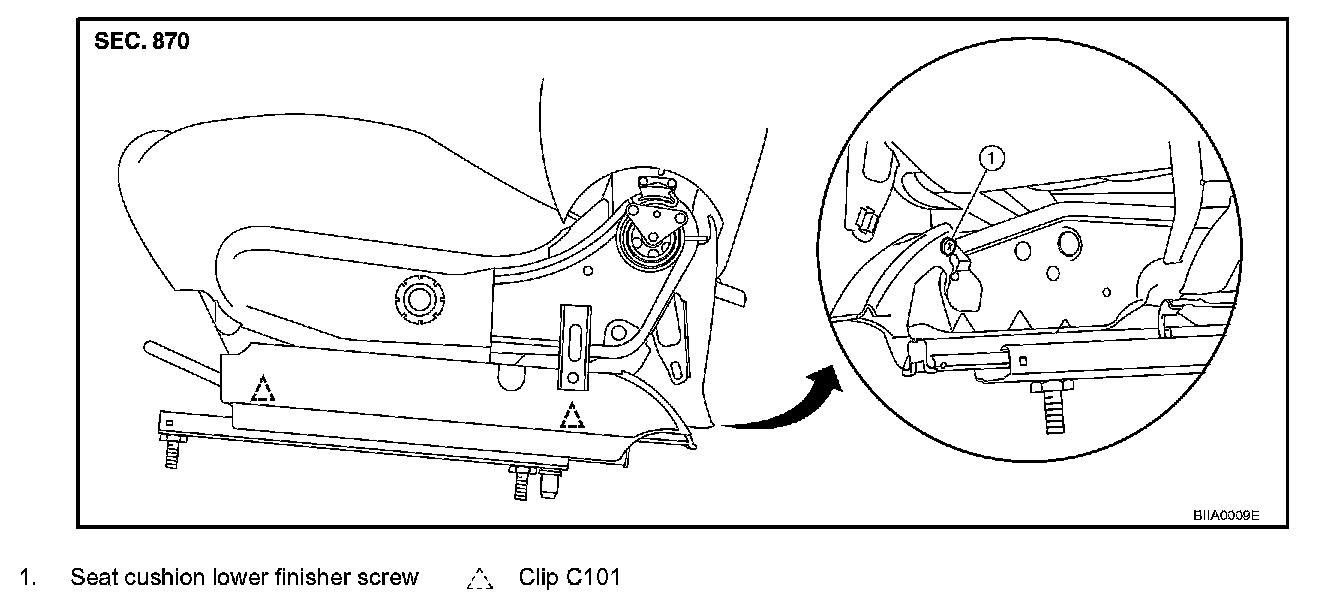

Remove the seat cushion lower outer finisher screw in order to remove the seat cushion lower outer finisher, if equipped.






4. Remove the air bag harness clips.
5. Remove the seat cushion retainers to separate the trim cover from the pad.

Assembly
Assembly is in the reverse order of disassembly.
