Terminal And Reference Value For Sunroof Motor Assembly





SUNROOF

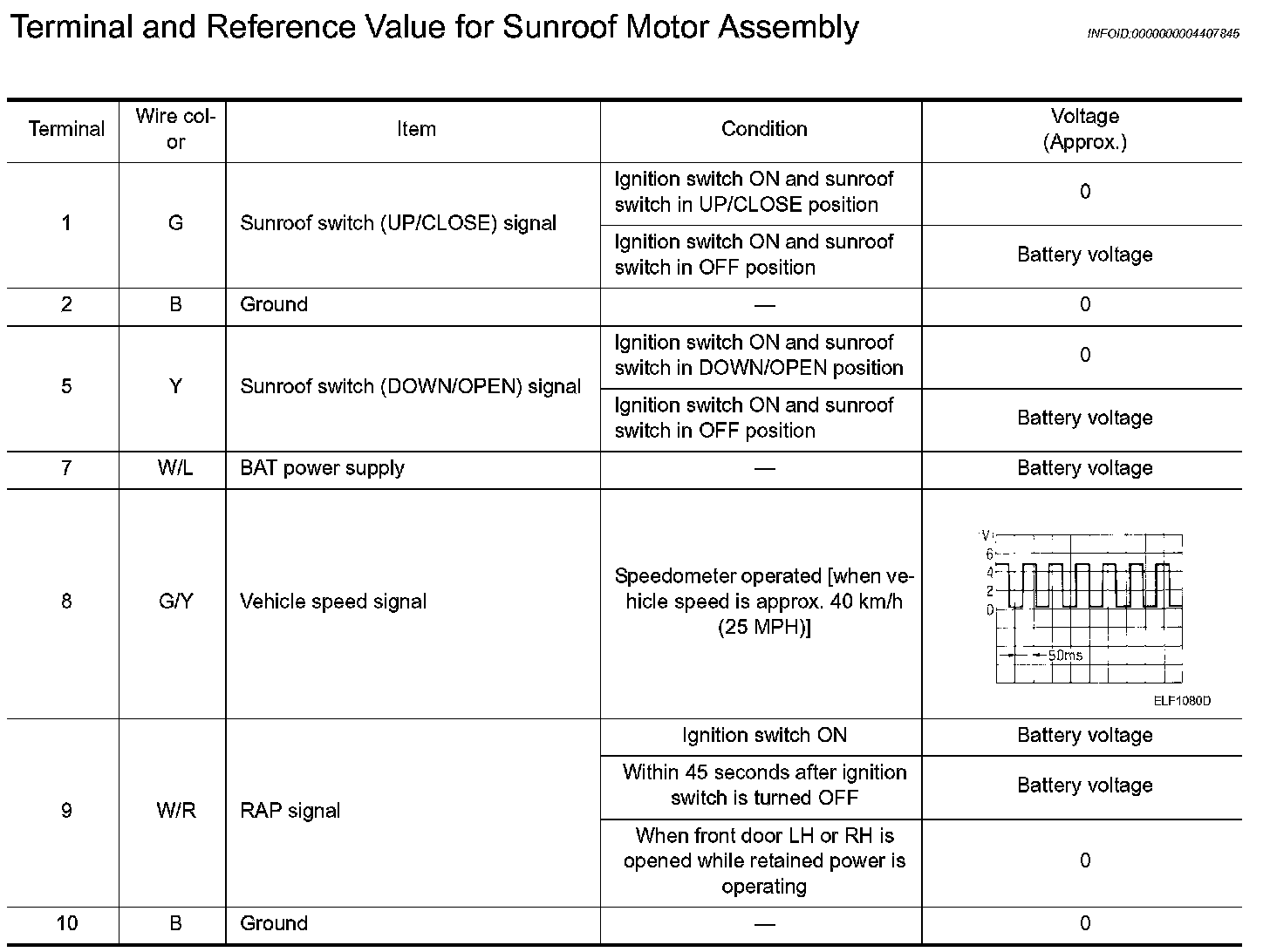

Terminal and Reference Value for Sunroof Motor Assembly
