FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Nissan-Datsun
>>
2009
>>
Sentra L4-2.0L (MR20DE)
>>
Repair and Diagnosis
>>
Body and Frame
>>
Locks
>>
Power Locks
>>
Testing and Inspection
>>
Symptom Related Diagnostic Procedures
>>

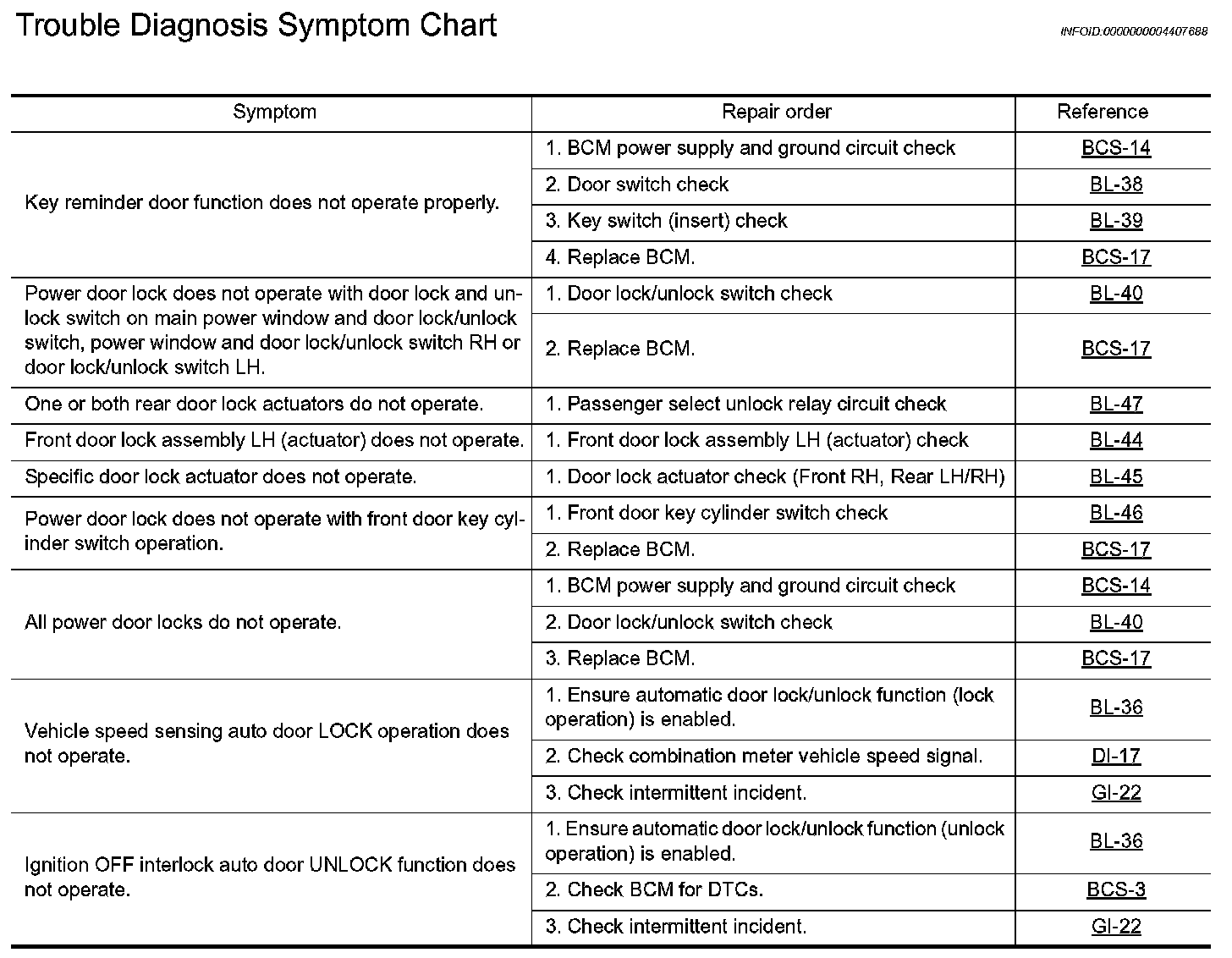

Trouble Diagnosis Symptom Chart
Trouble Diagnosis Symptom Chart
POWER DOOR LOCK SYSTEM
Trouble Diagnosis Symptom Chart
Trouble Diagnosis Symptom Chart:
