Wiring Diagram - D/Lock - (With Intelligent Key)
POWER DOOR LOCK SYSTEM
Wiring Diagram - D/LOCK - (With Intelligent Key)

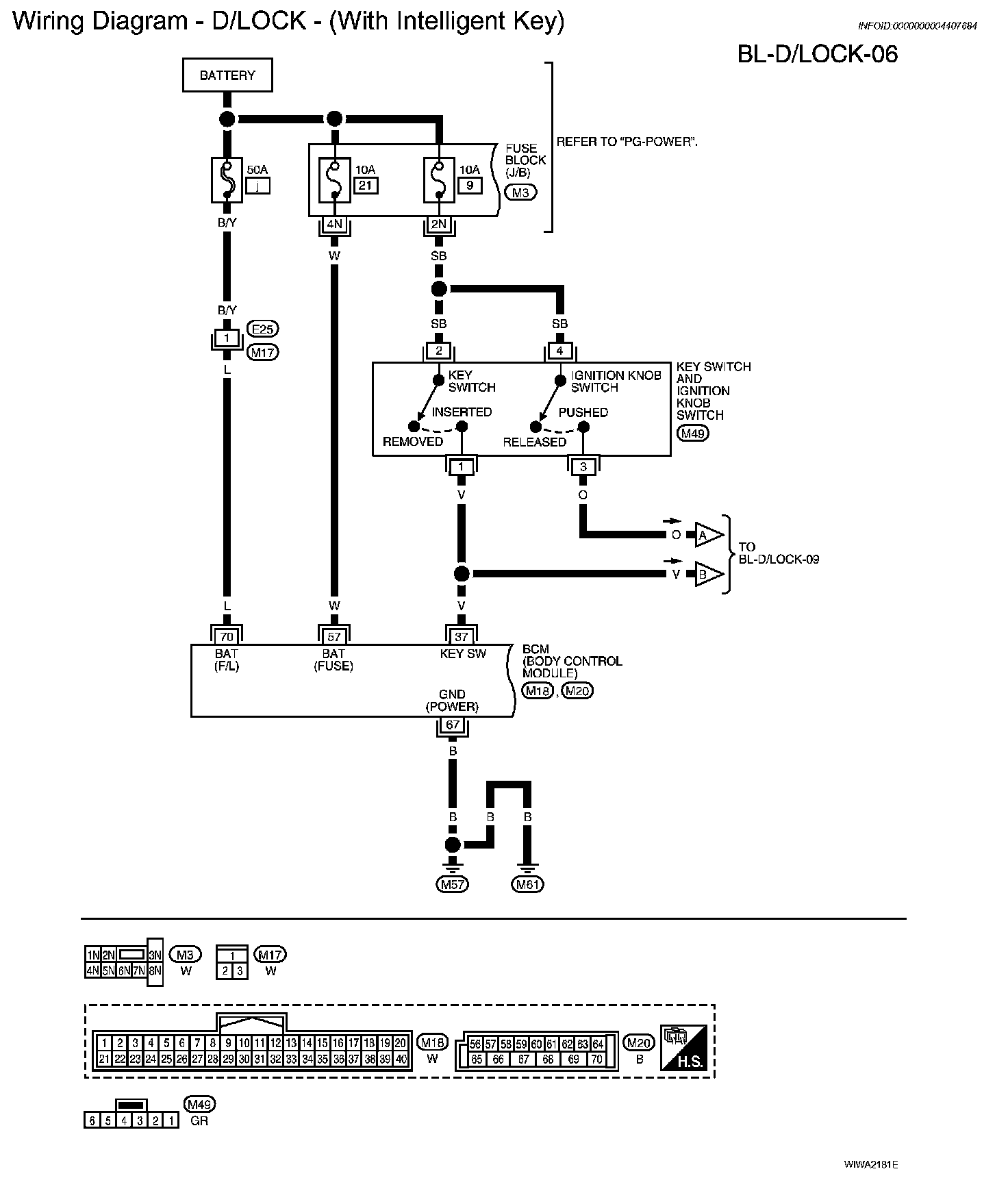

BL-D/LOCK-06:

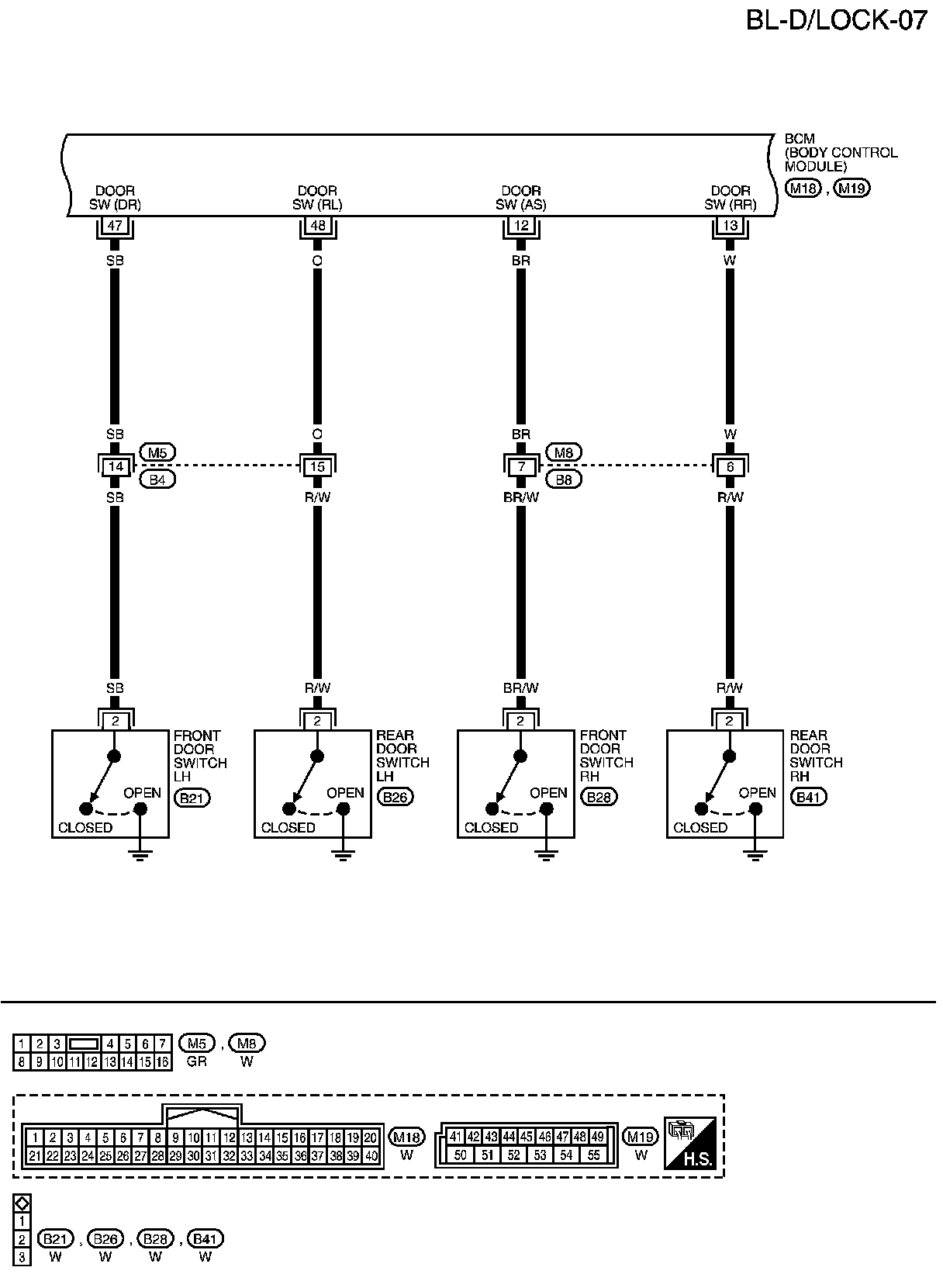

BL-D/LOCK-07:

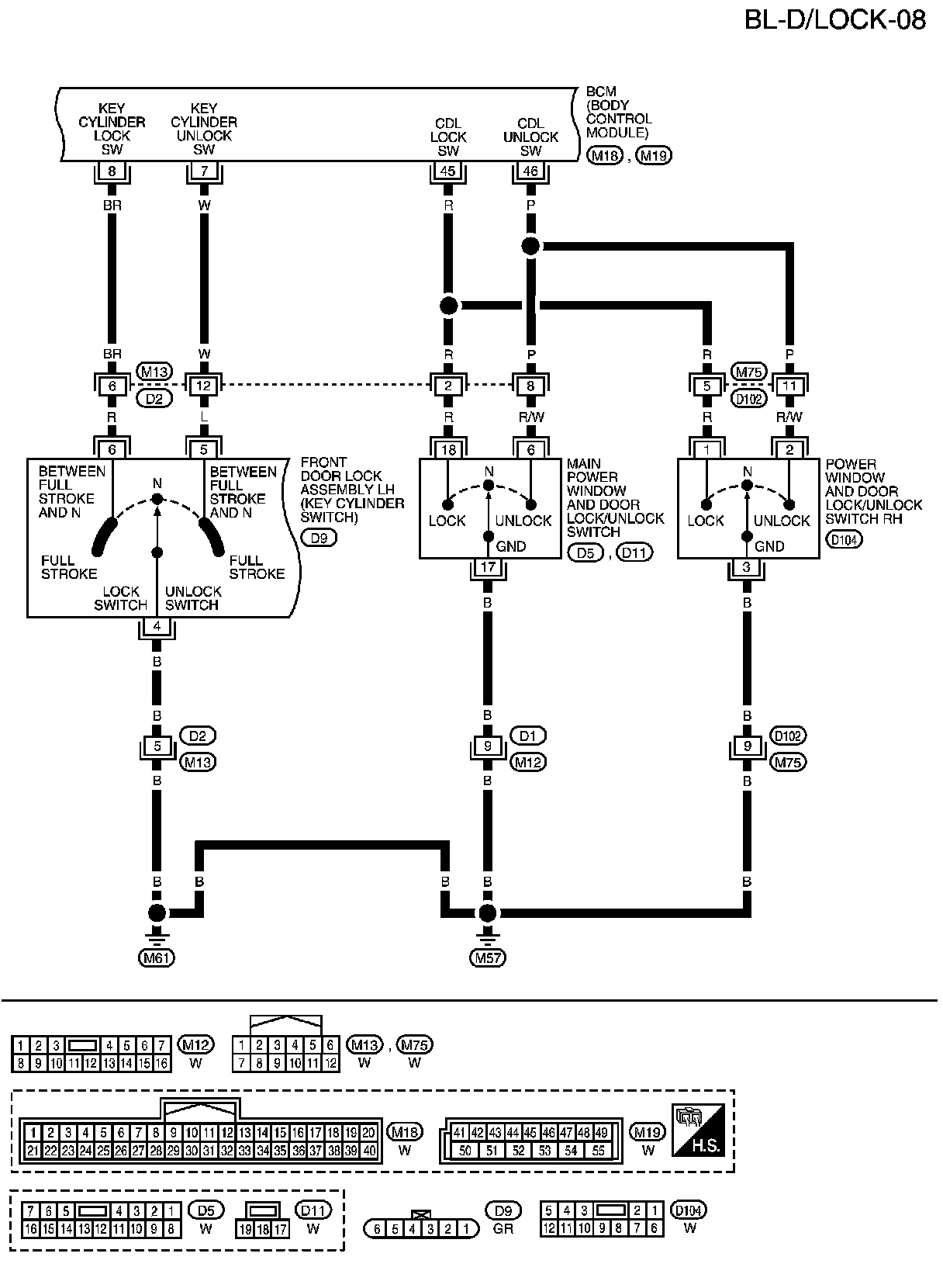

BL-D/LOCK-08:

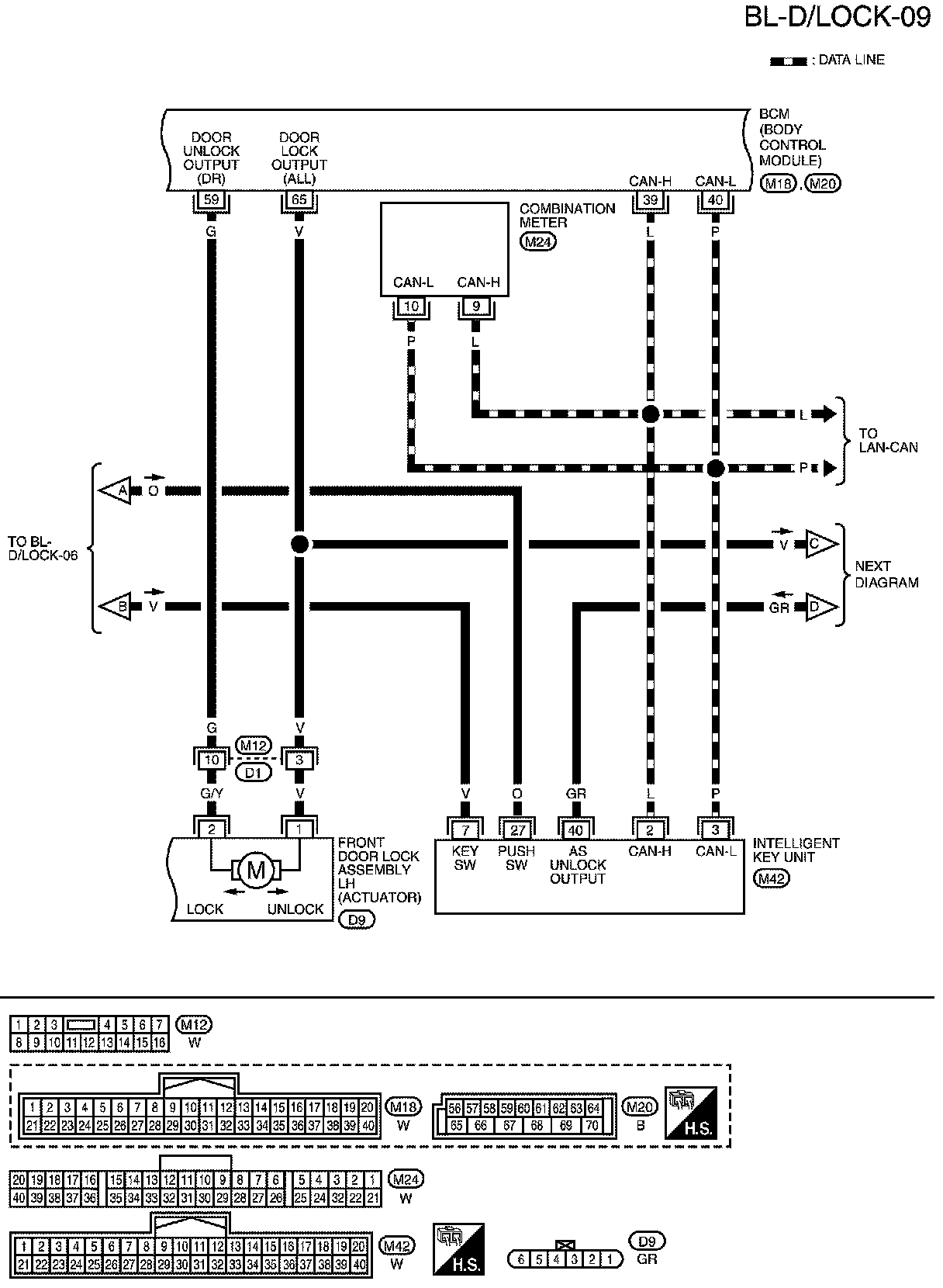

BL-D/LOCK-09:

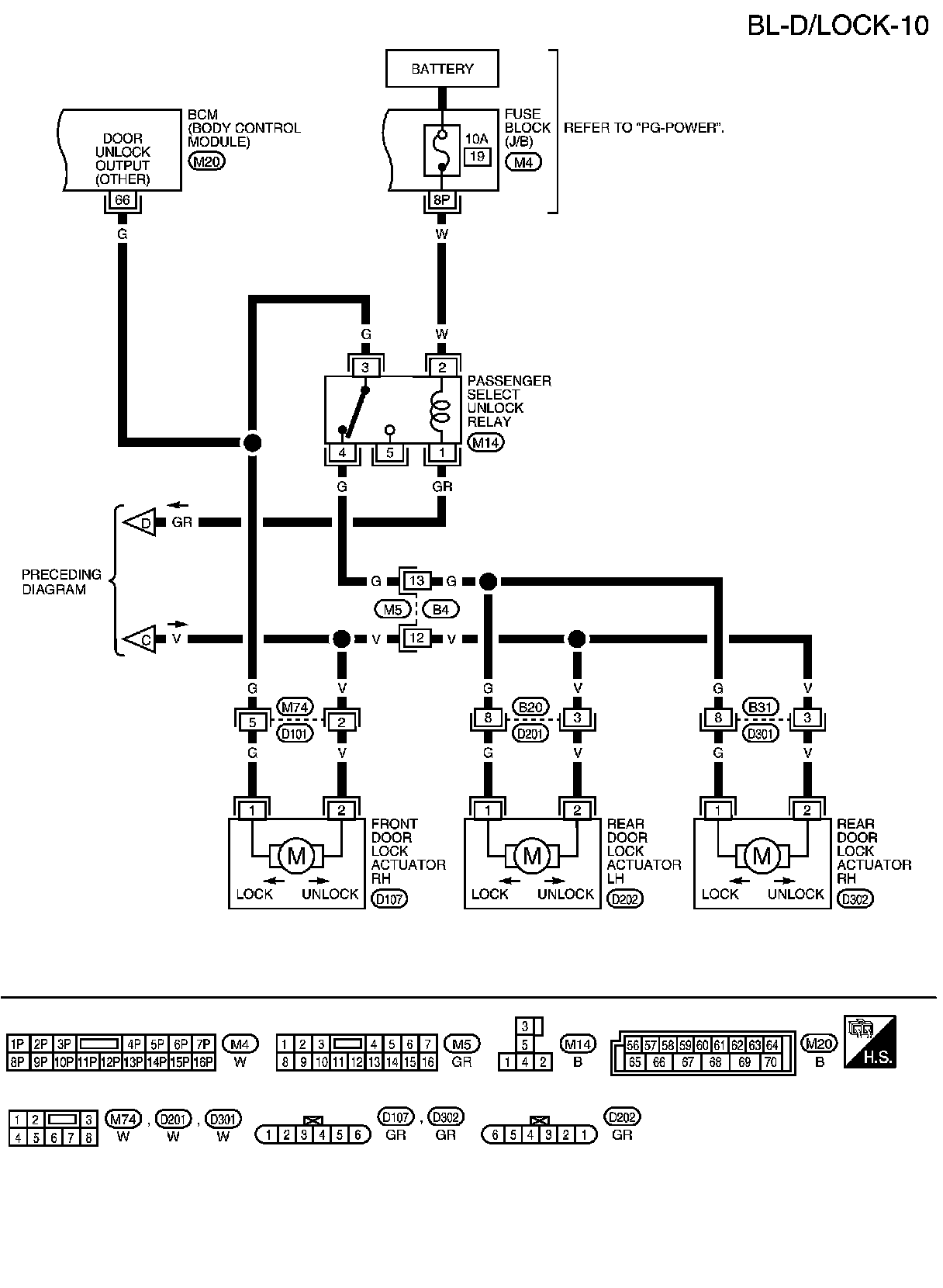

BL-D/LOCK-10:
POWER DOOR LOCK SYSTEM
Wiring Diagram - D/LOCK - (With Intelligent Key)
