Schematic (With Intelligent Key)

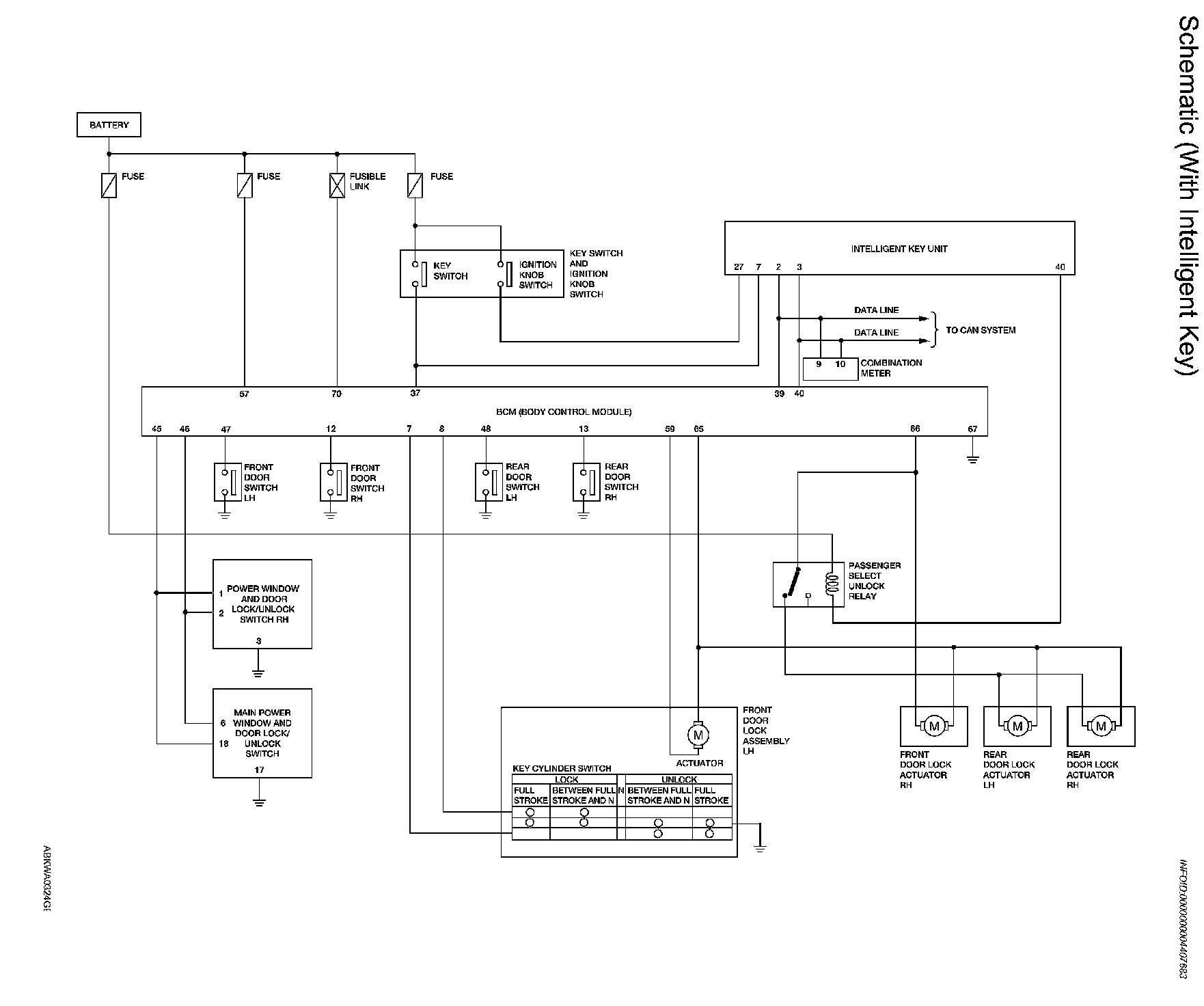

Schematic (With Intelligent Key)
POWER DOOR LOCK SYSTEM
Schematic (With Intelligent Key)
