BL - I/KEY





INTELLIGENT KEY SYSTEM


Wiring Diagram - Intelligent Key -

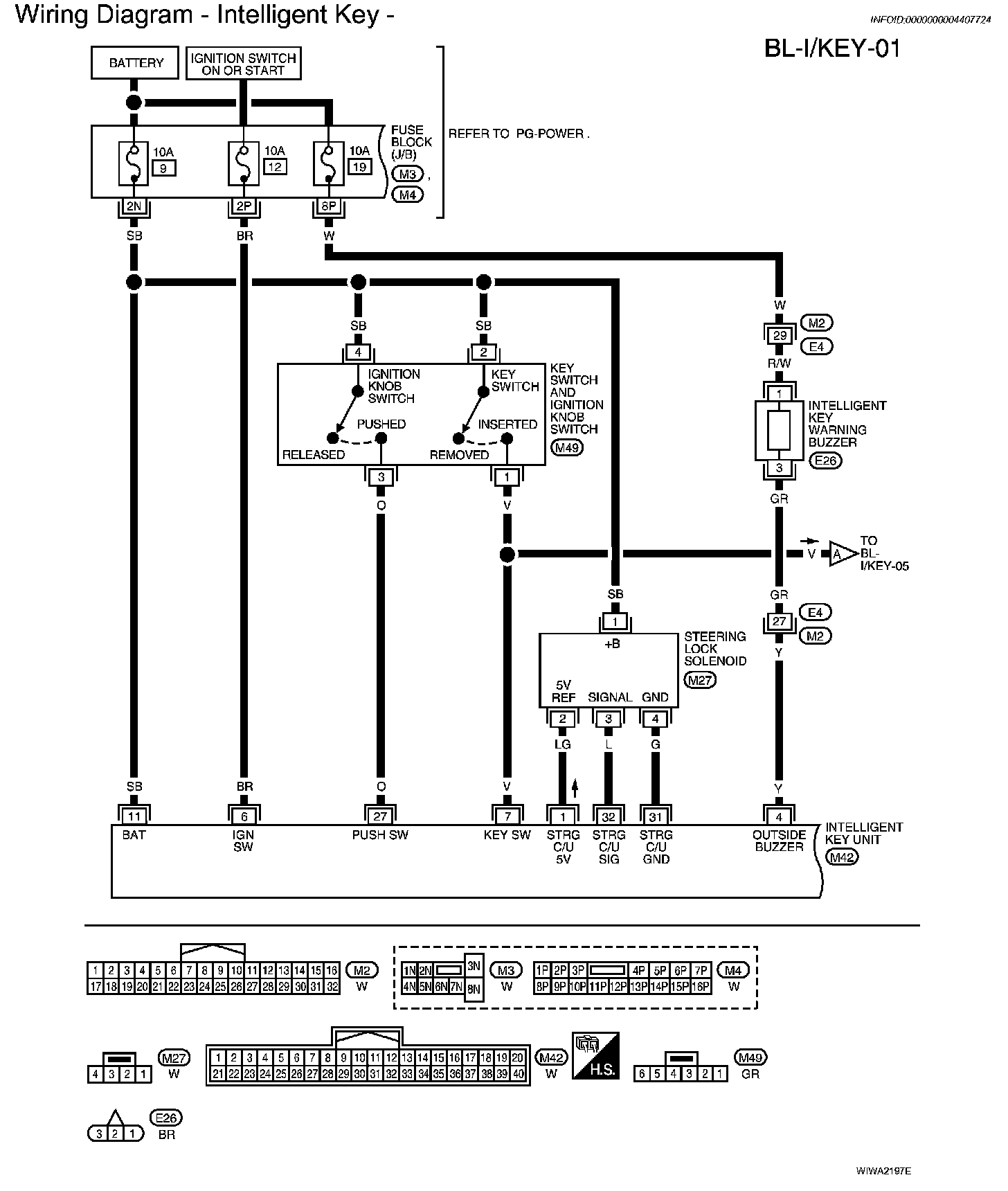

BL-I/KEY-01:

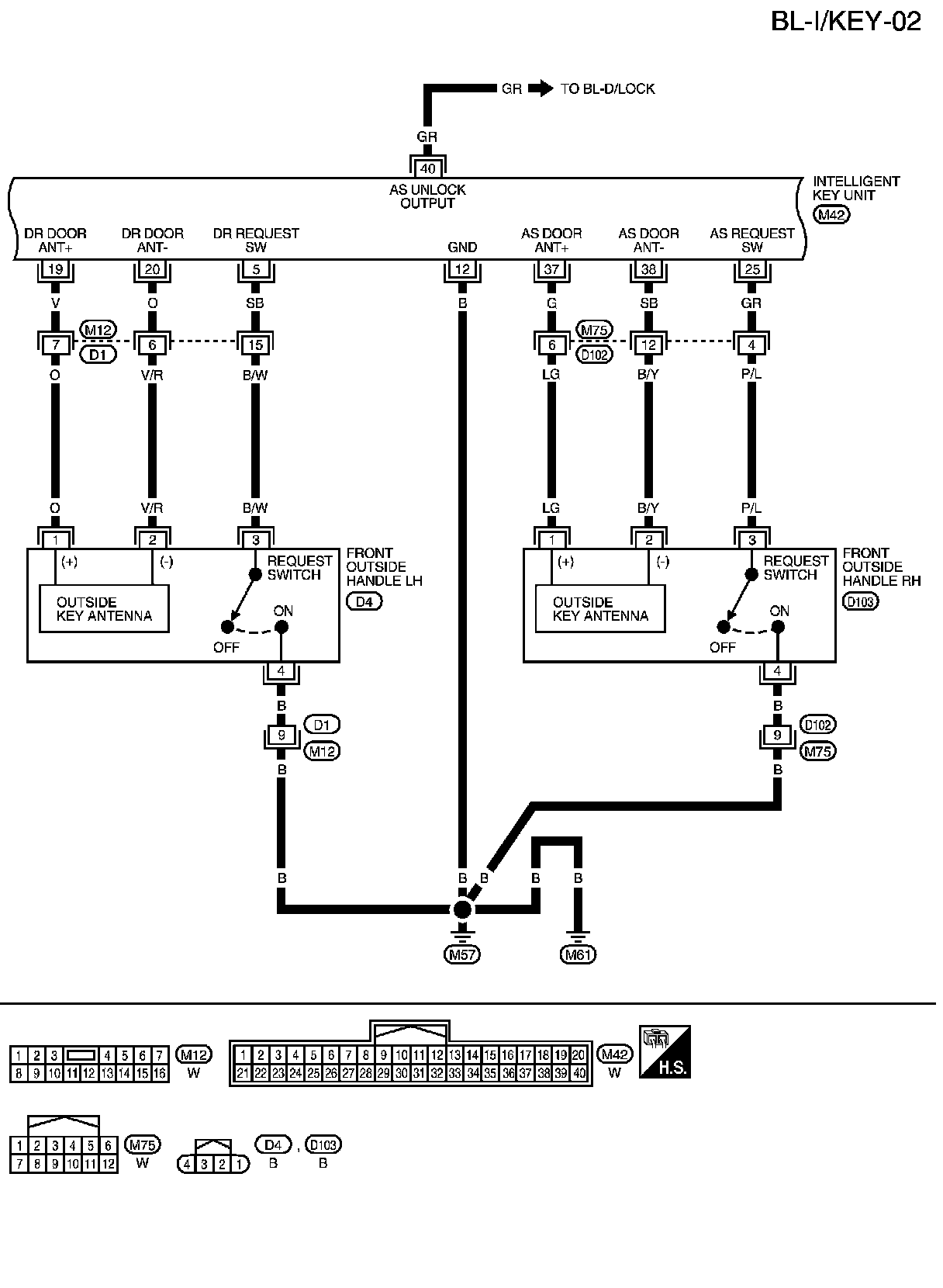

BL-I/KEY-02:

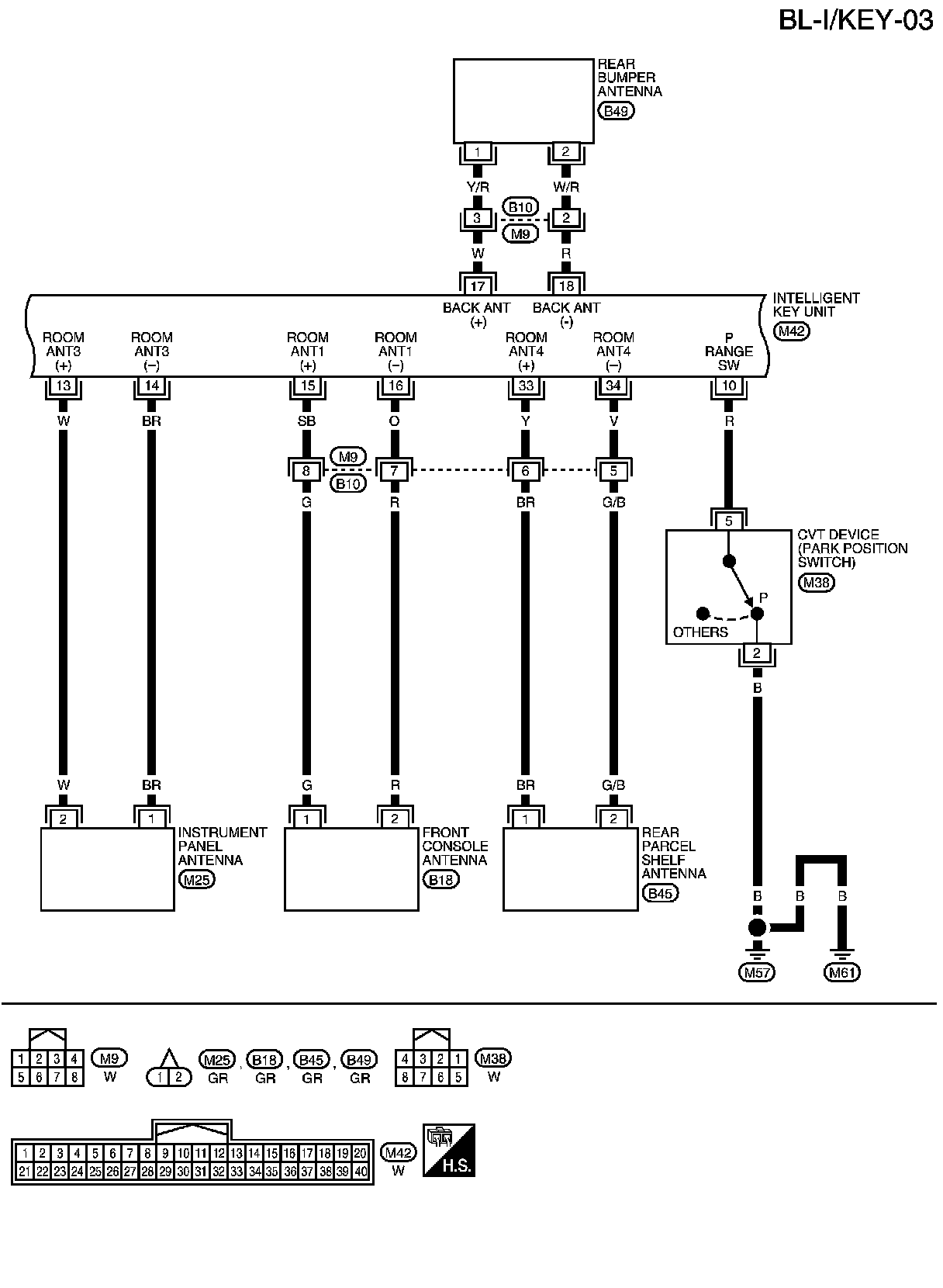

BL-I/KEY-03:

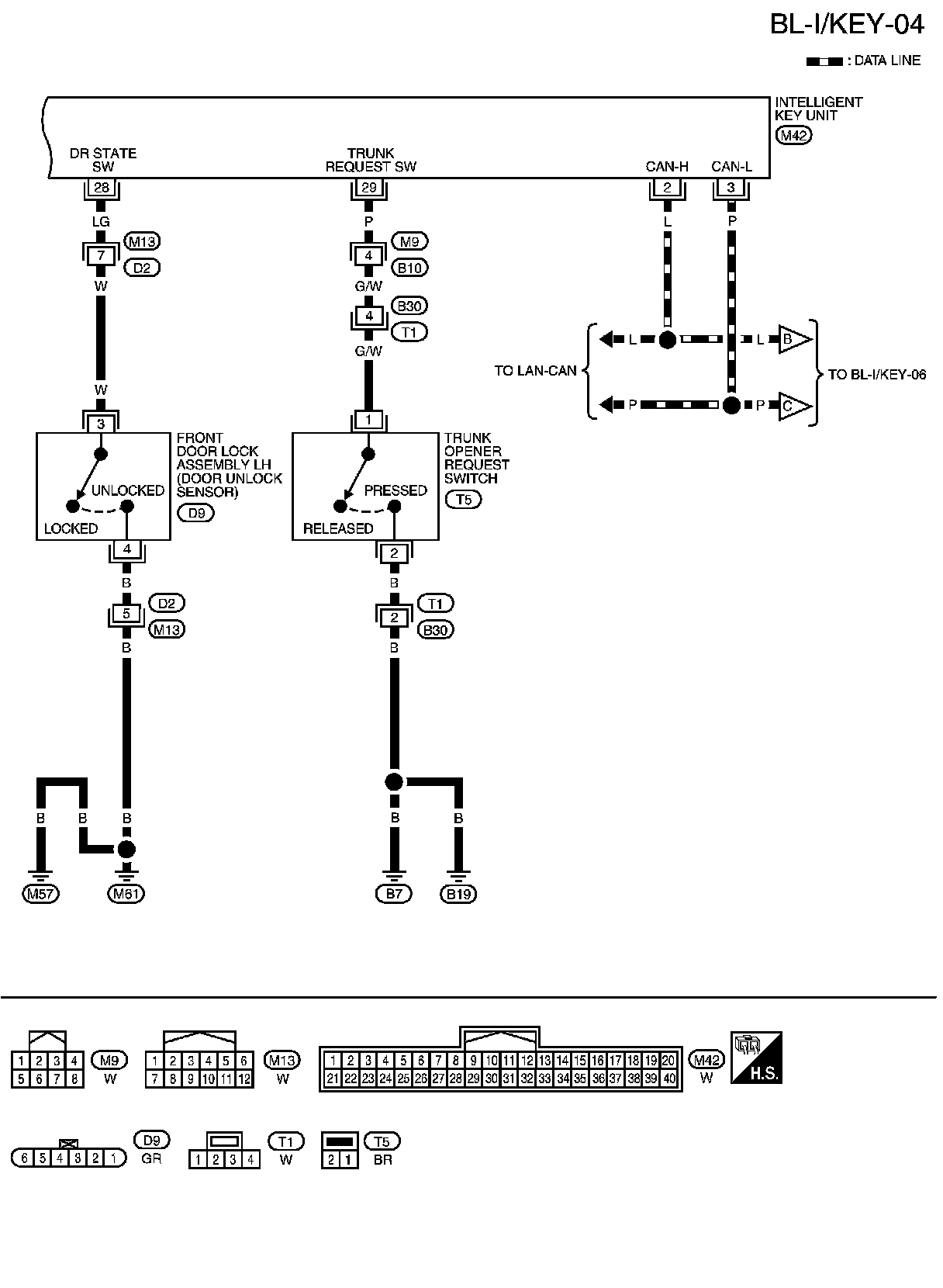

BL-I/KEY-04:

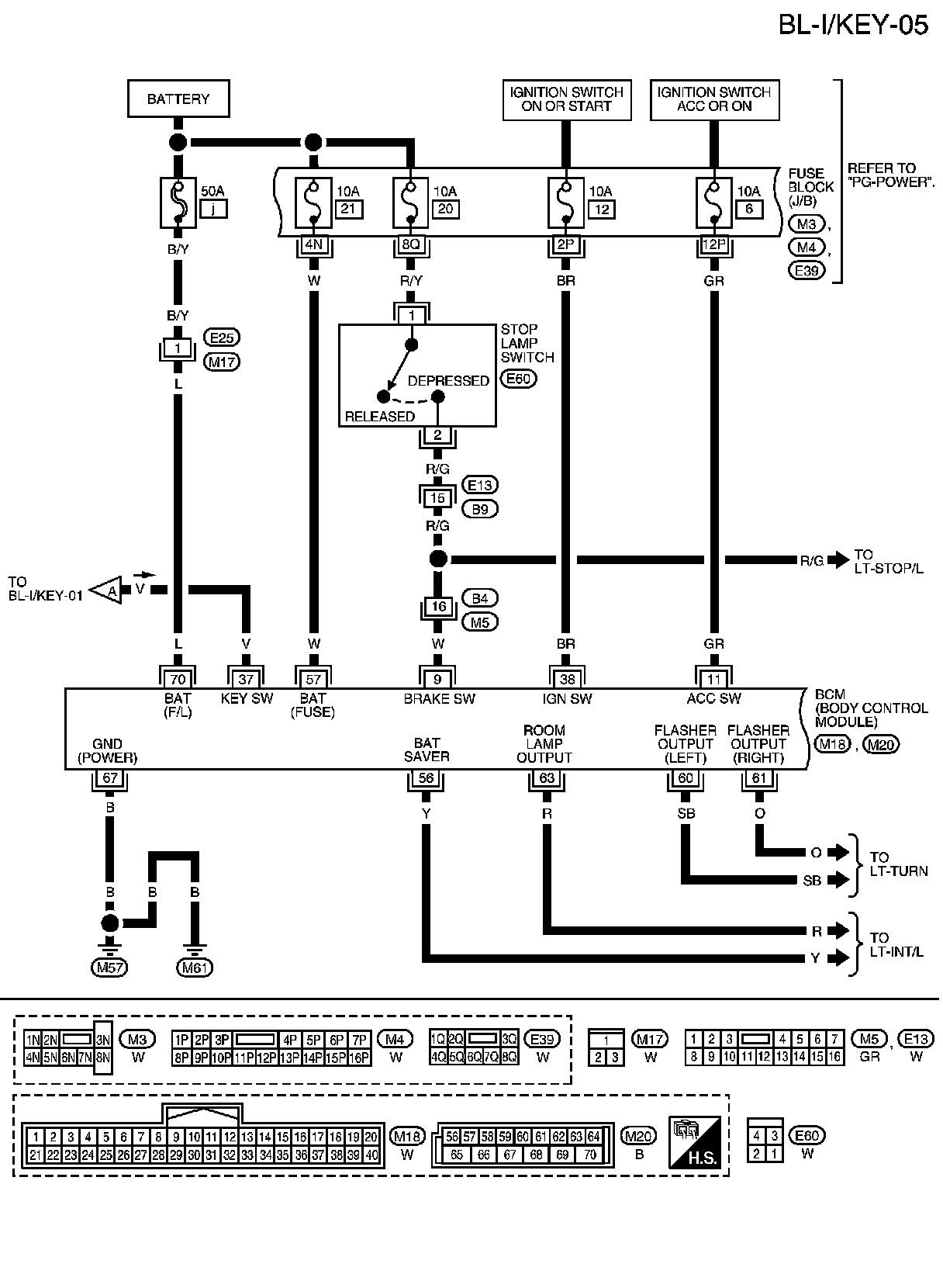

BL-I/KEY-05:

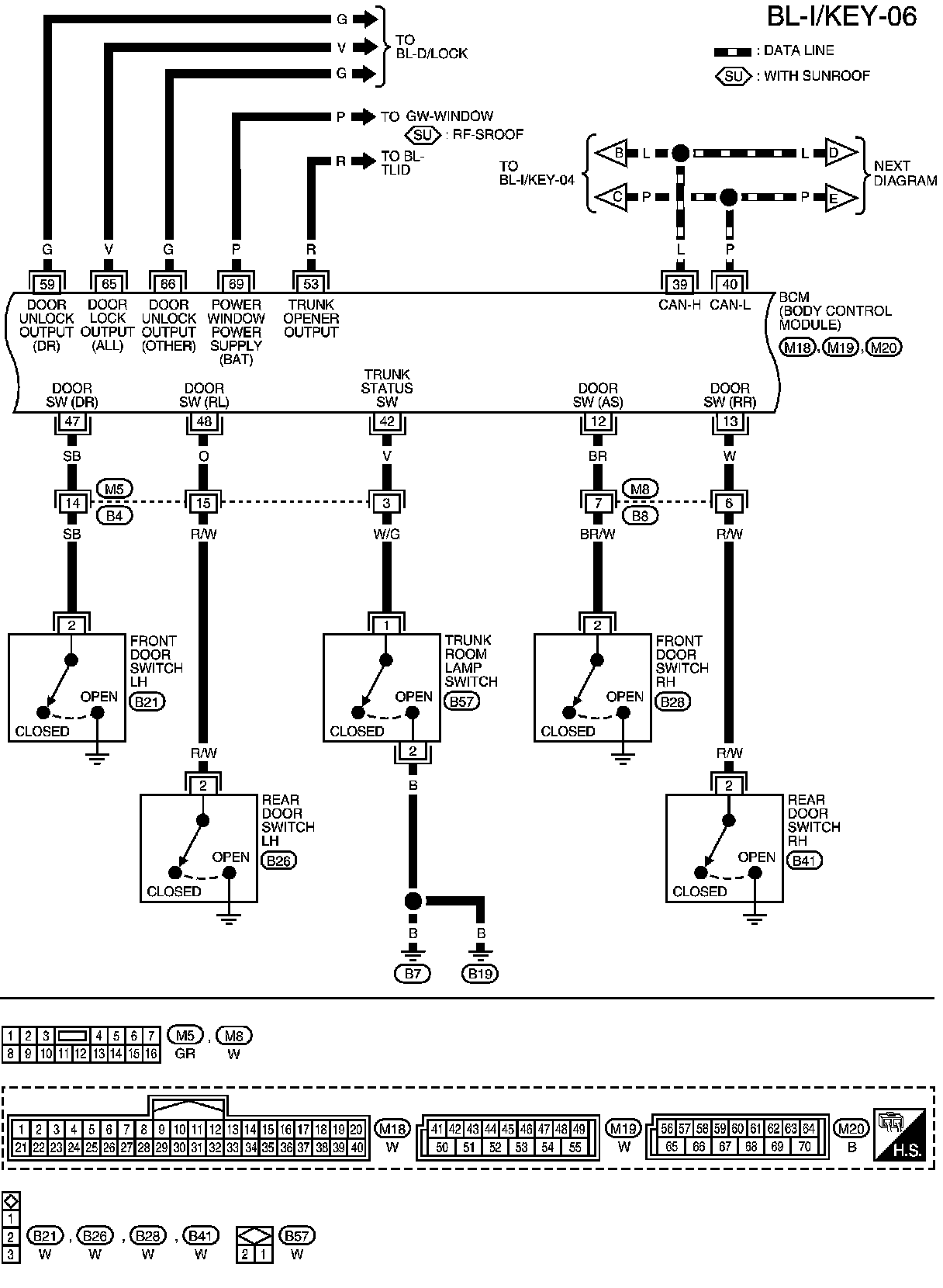

BL-I/KEY-06:

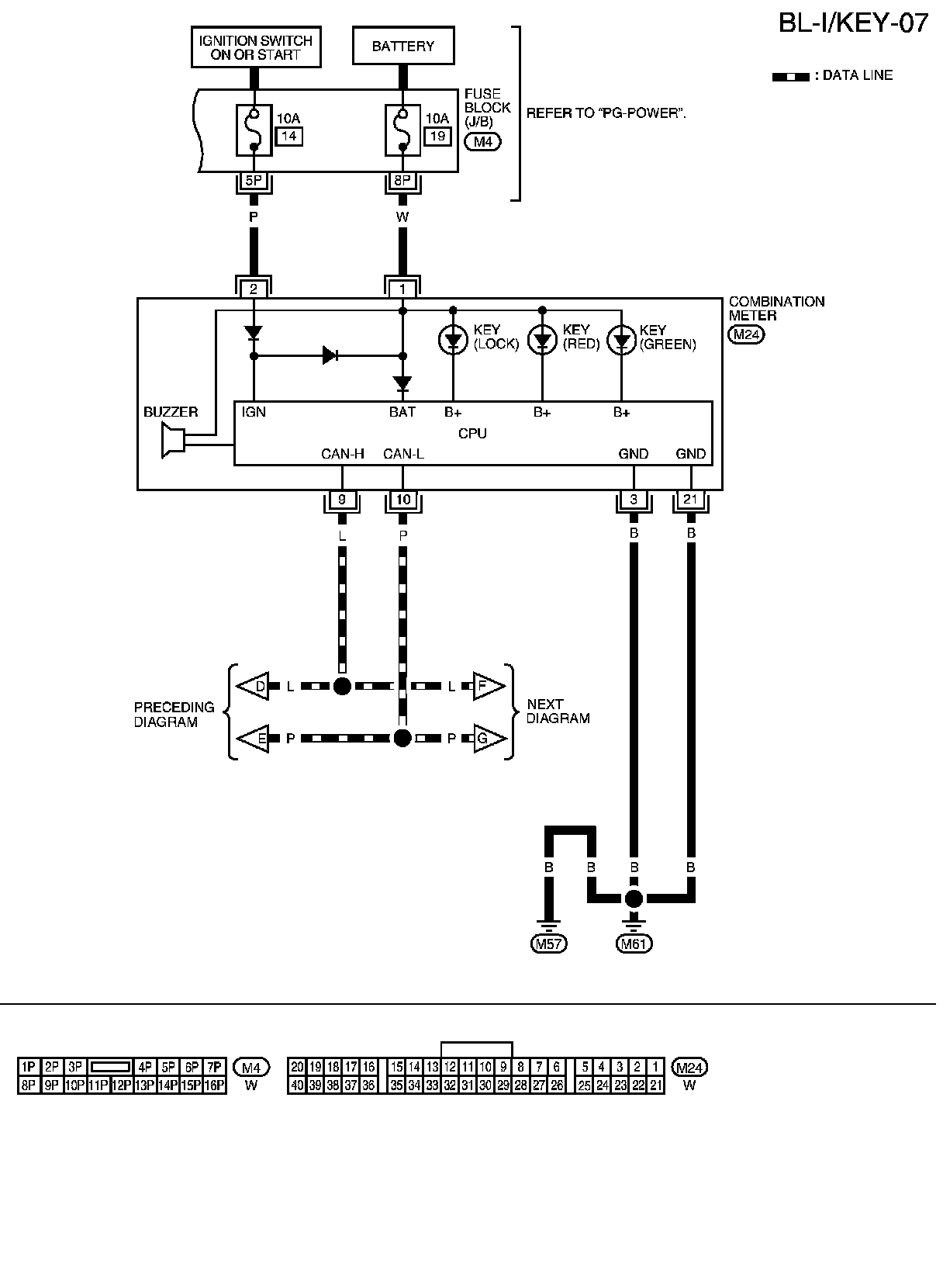

BL-I/KEY-07:

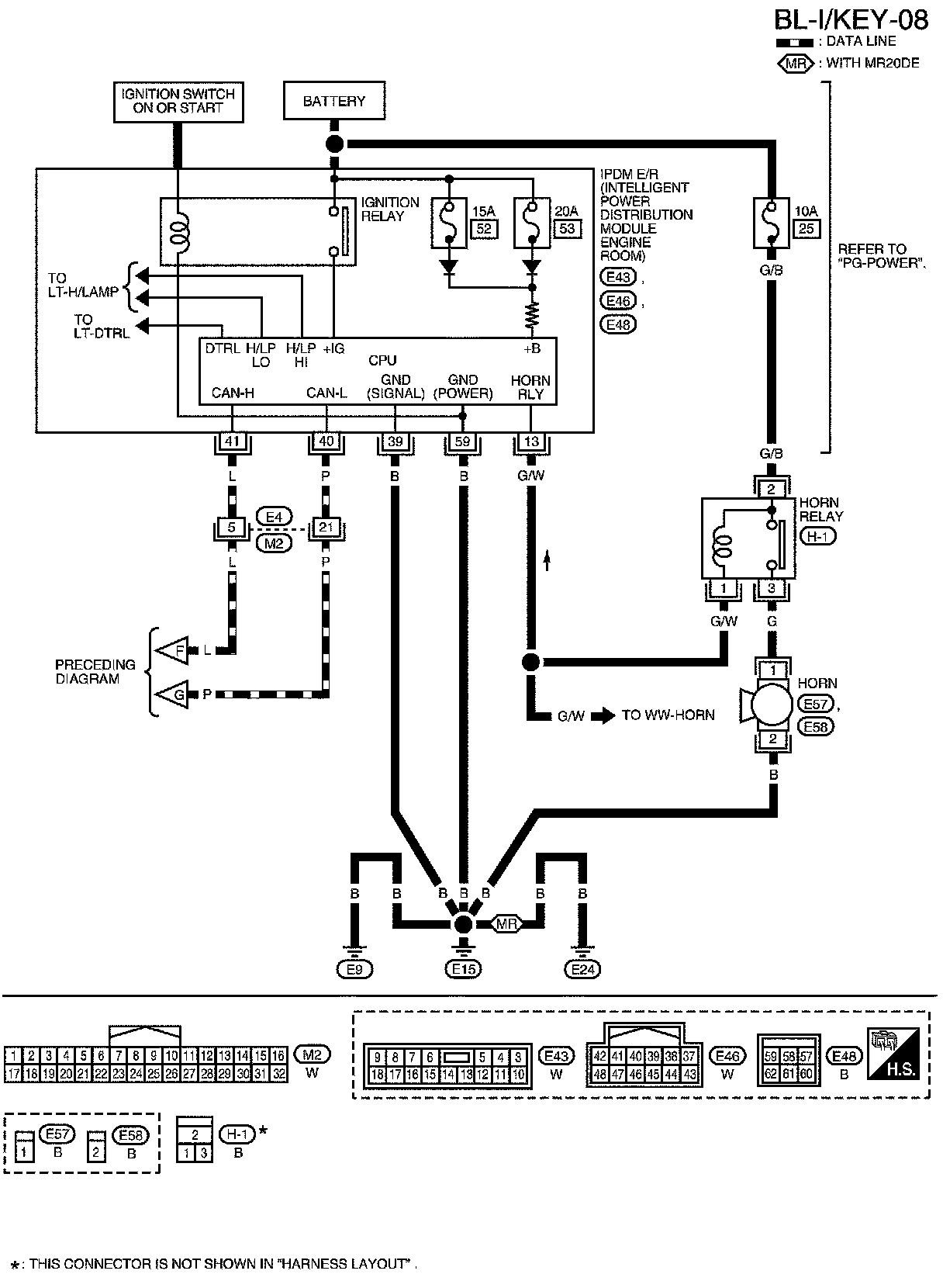

BL-I/KEY-08:
