Electrical Diagrams





TRUNK LID OPENER


Wiring Diagram - TLID -

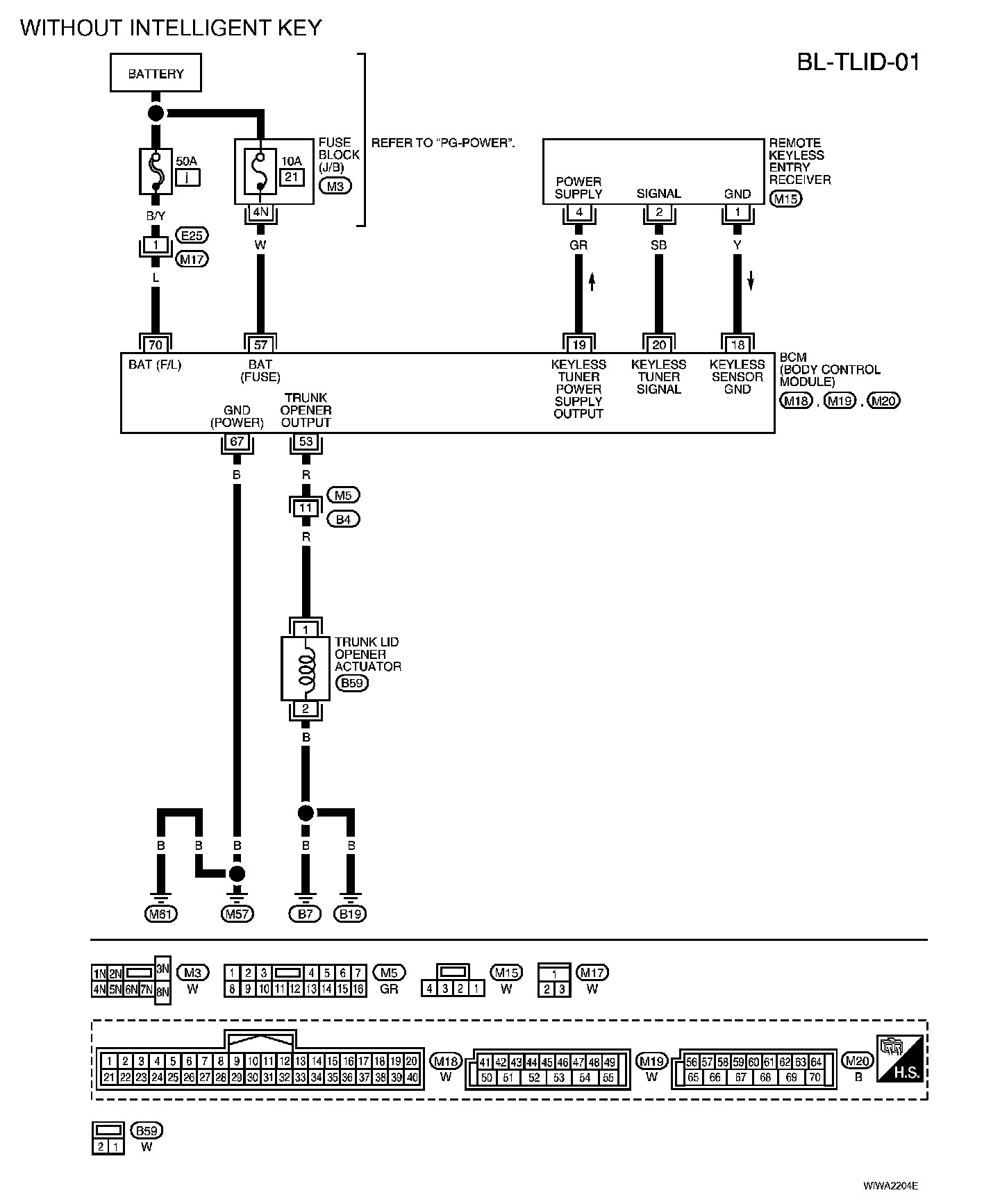

WITHOUT INTELLIGENT KEY

BL-TLID-01:

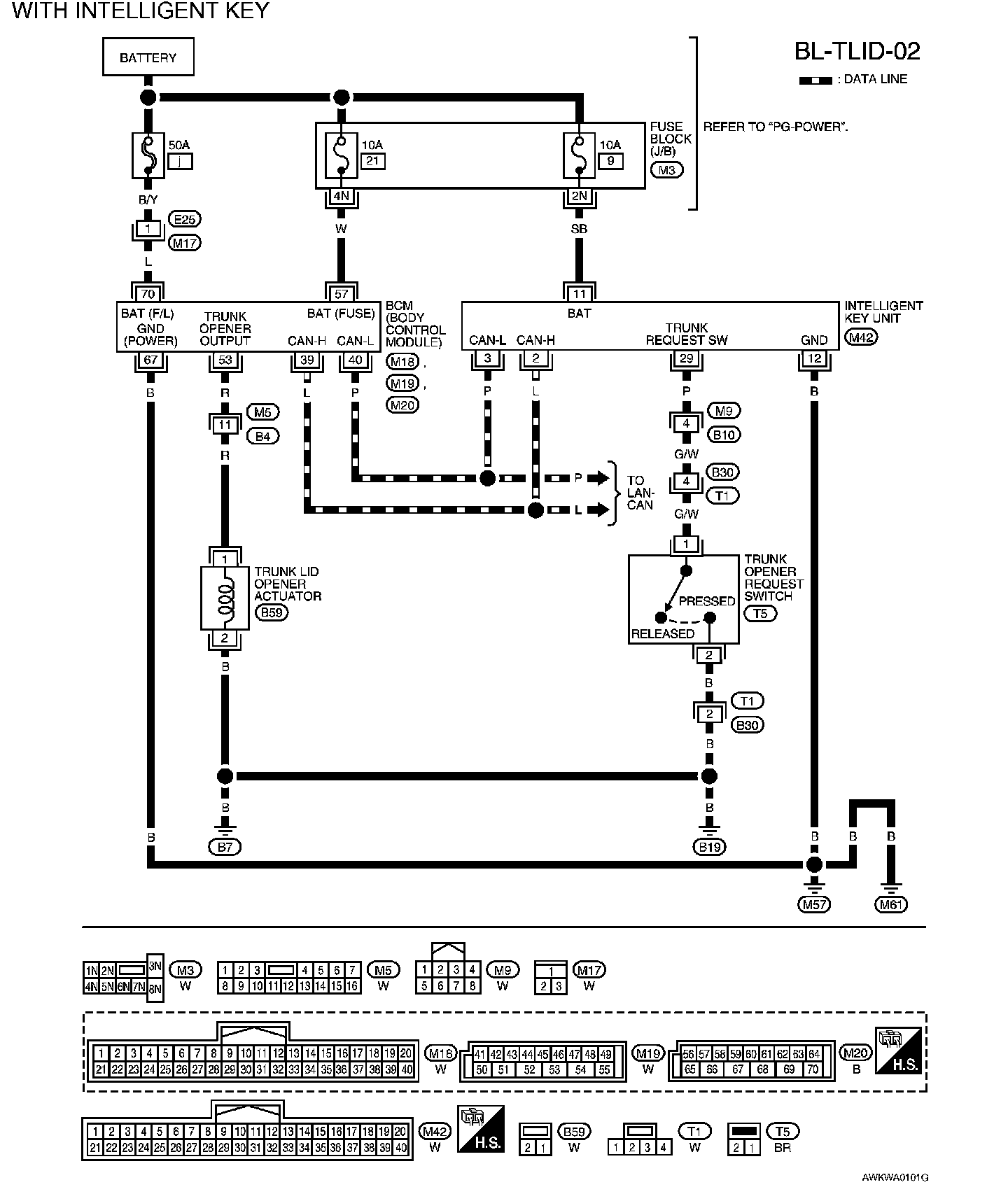

WITH INTELLIGENT KEY

BL-TLID-02:
