Terminal And Reference Value For Audio Unit (Premium System)
Terminal And Reference Value For Audio Unit (Premium System)
AUDIO

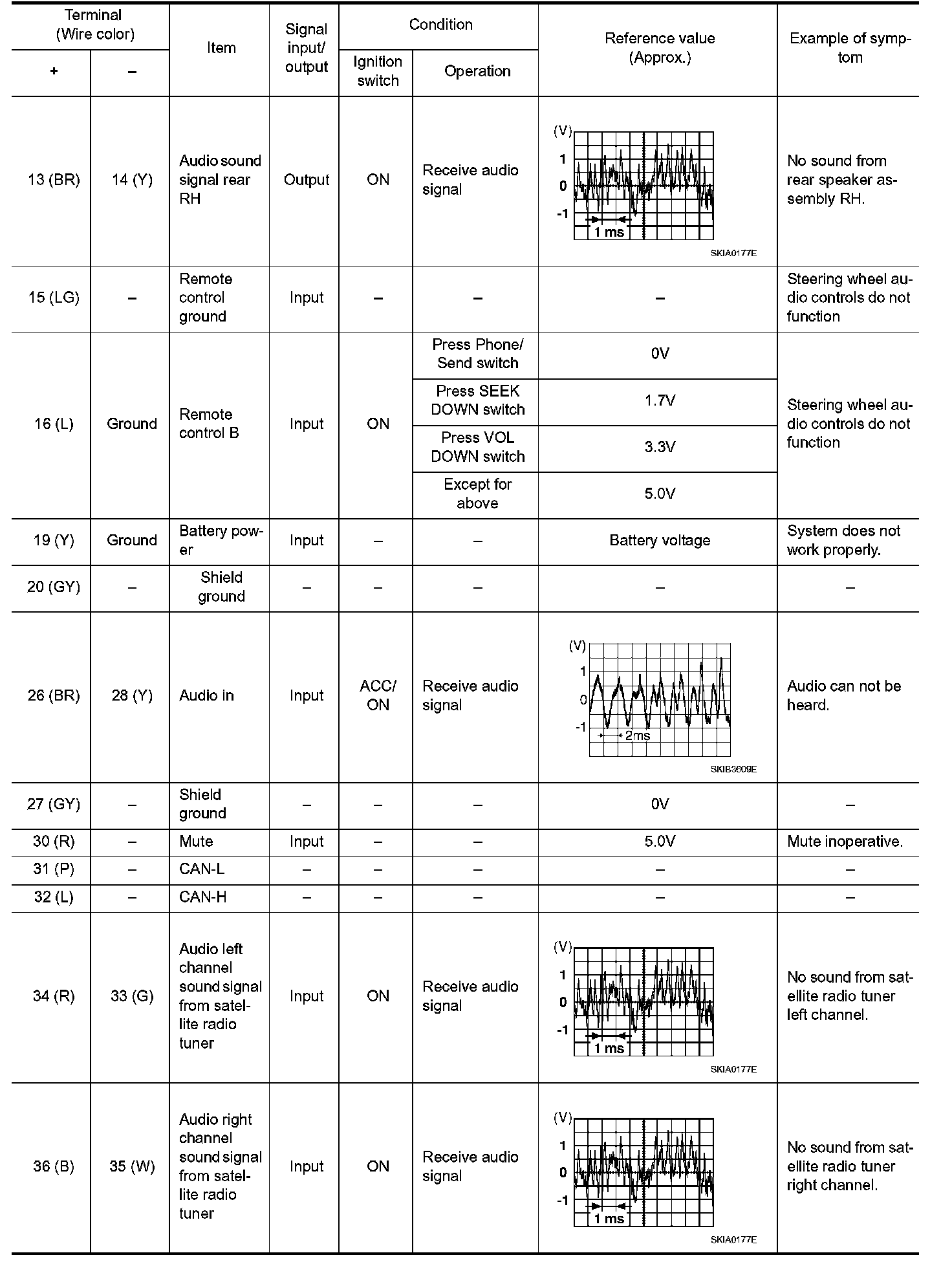

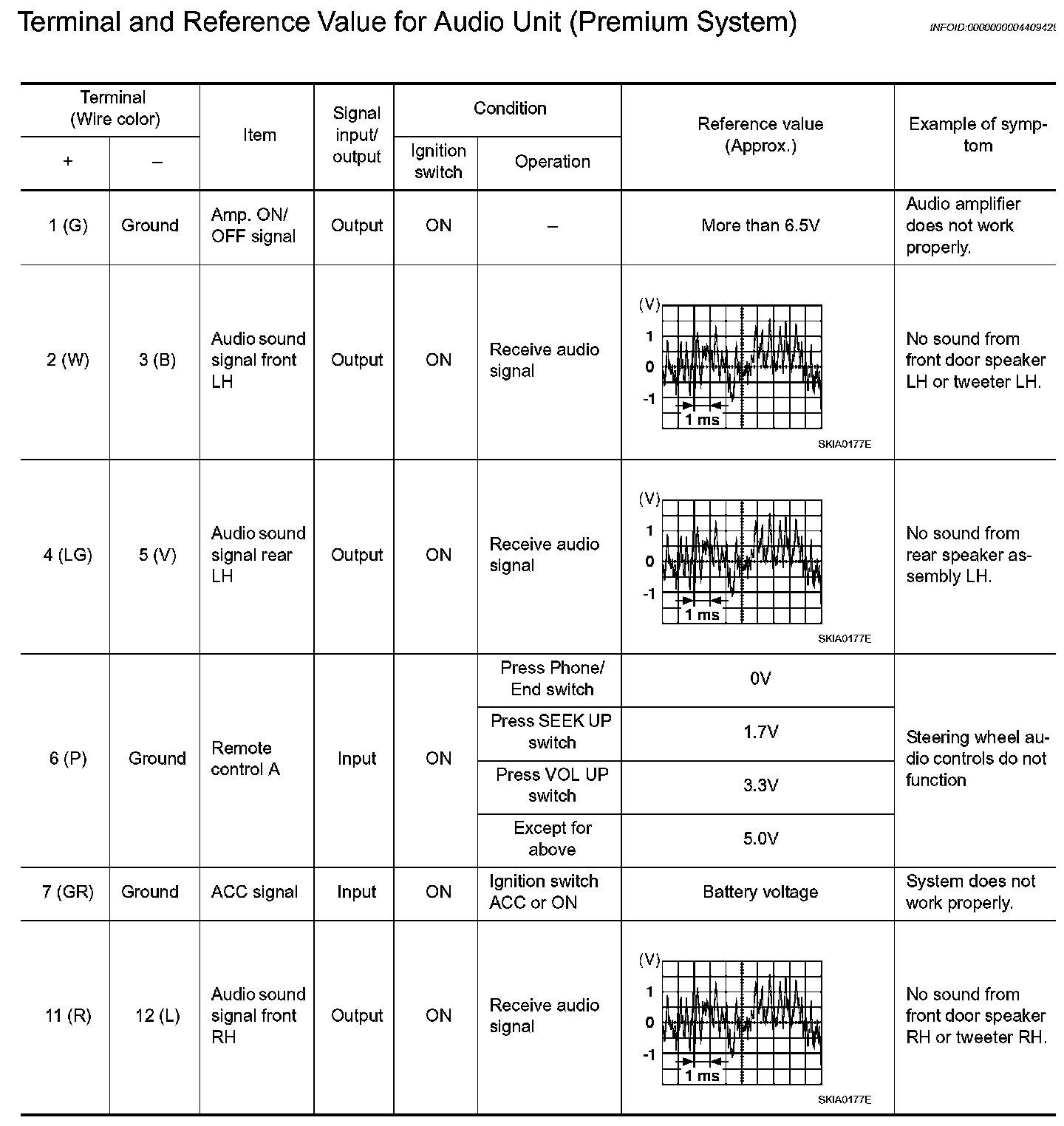

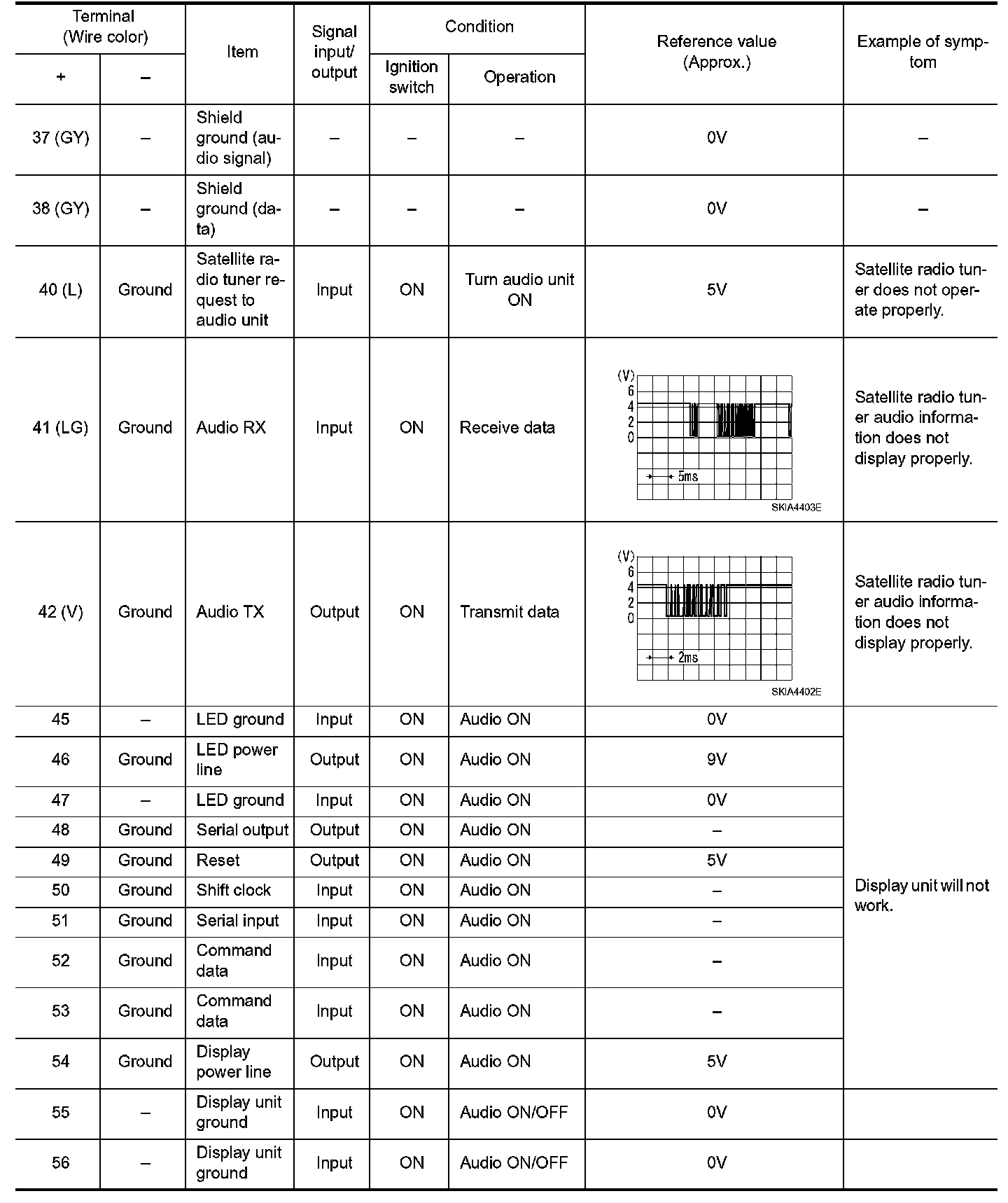

Terminal and Reference Value for Audio Unit (Premium System)
