Audio
>>
Terminal And Reference Value For Audio Amplifier (Premium System)
Terminal And Reference Value For Audio Amplifier (Premium System)
AUDIO

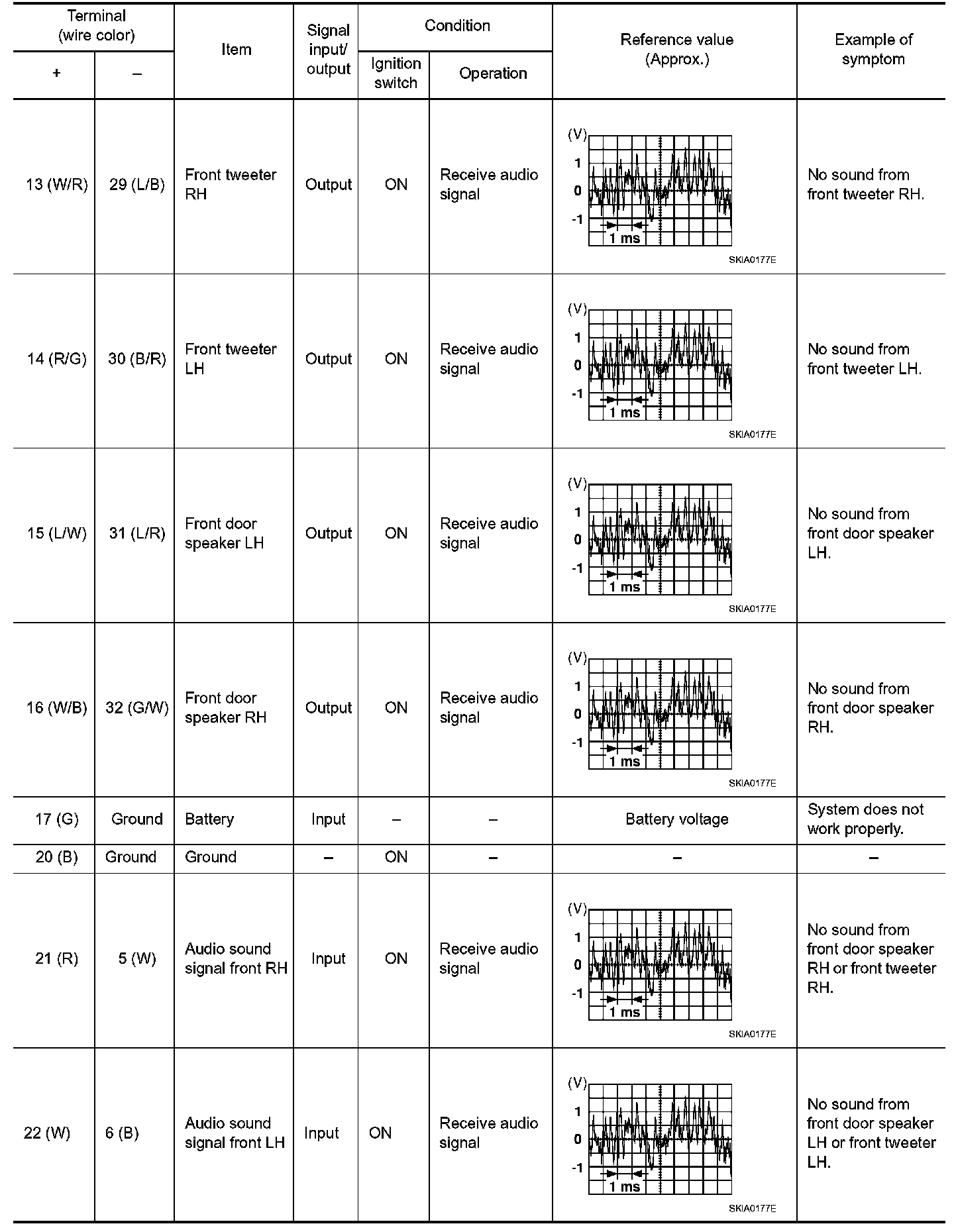

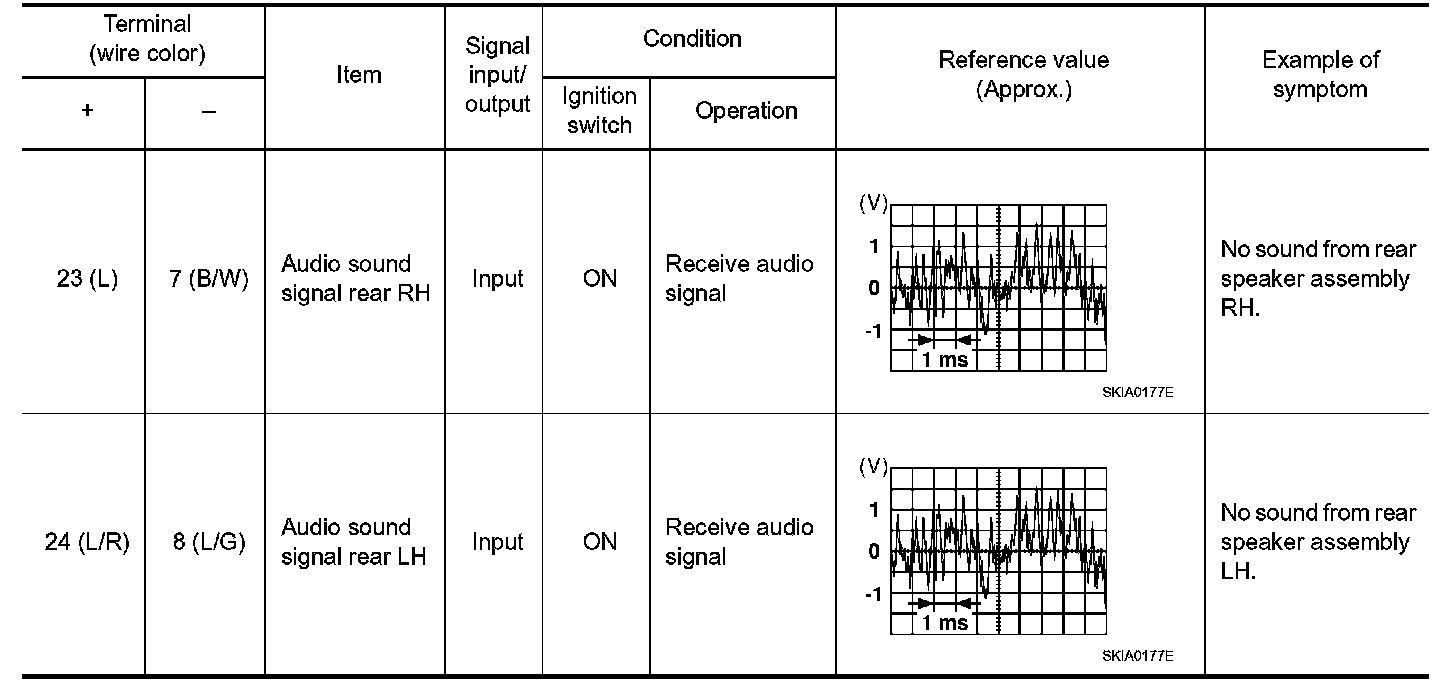

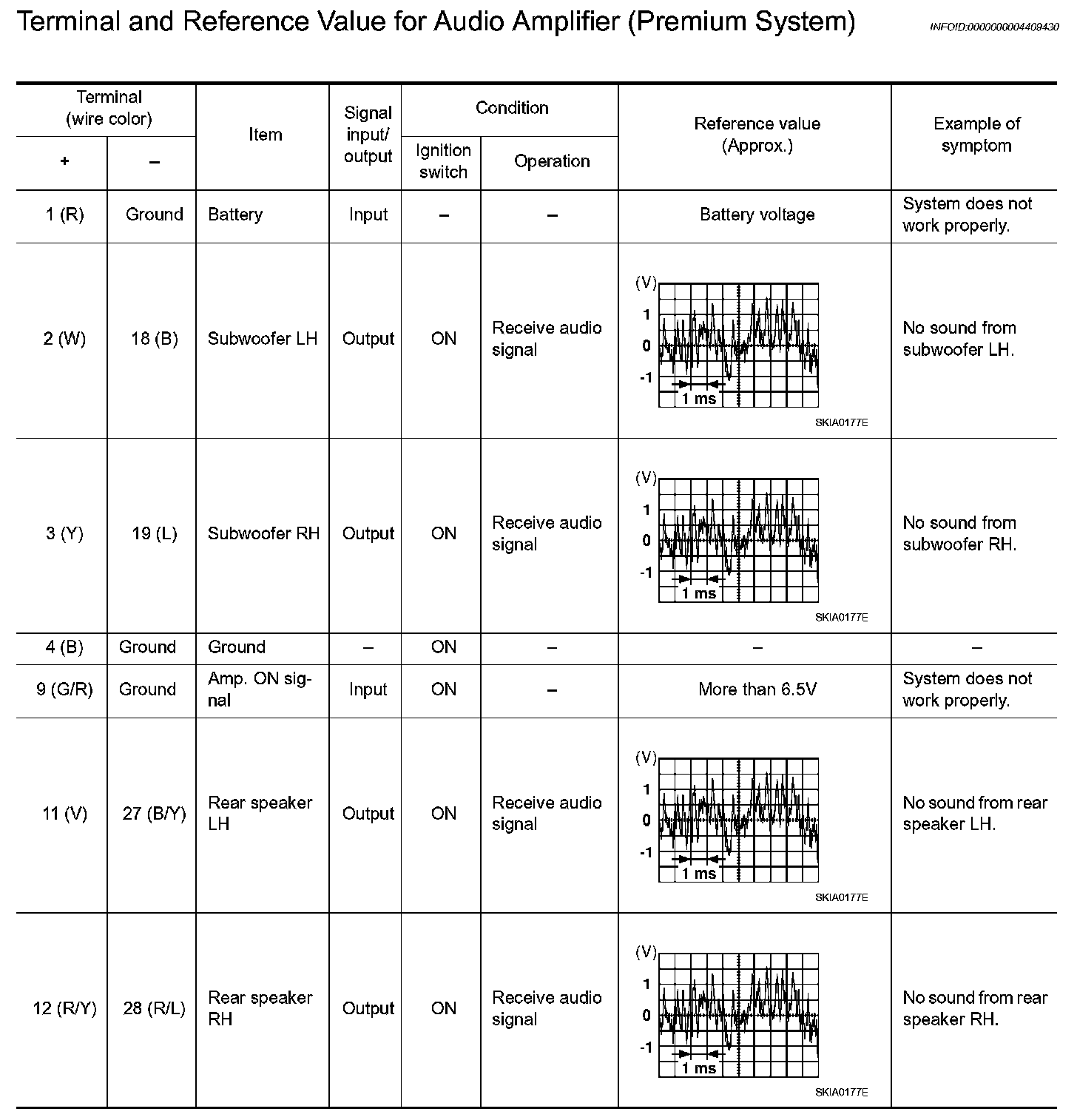

Terminal and Reference Value for Audio Amplifier (Premium System)
