Vehicle Security (Theft Warning) System





VEHICLE SECURITY (THEFT WARNING) SYSTEM


CONSULT-III Function (BCM)

CONSULT-III can display each diagnostic item using the diagnostic test modes shown following.

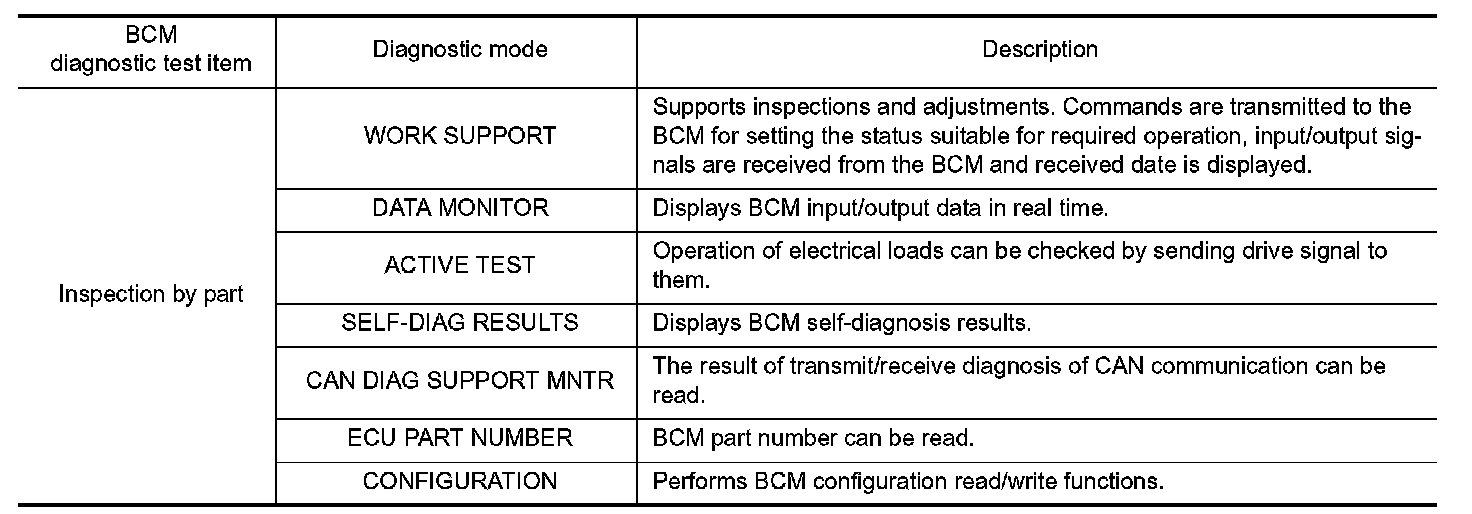

CONSULT-III APPLICATION ITEM

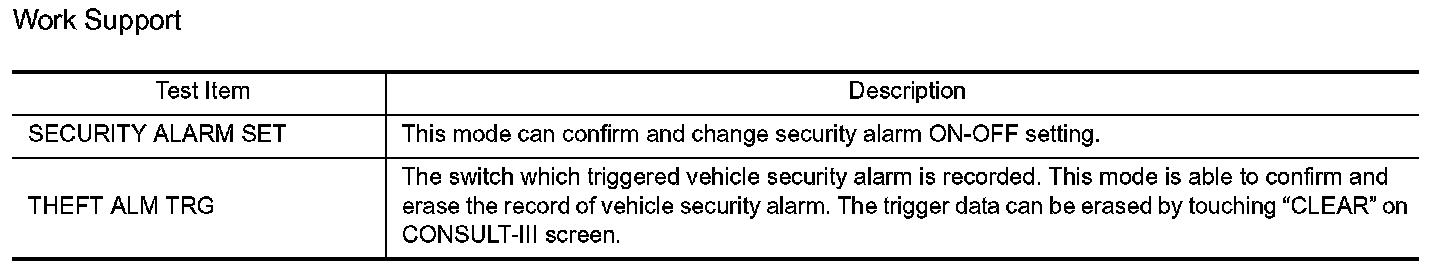

Work Support

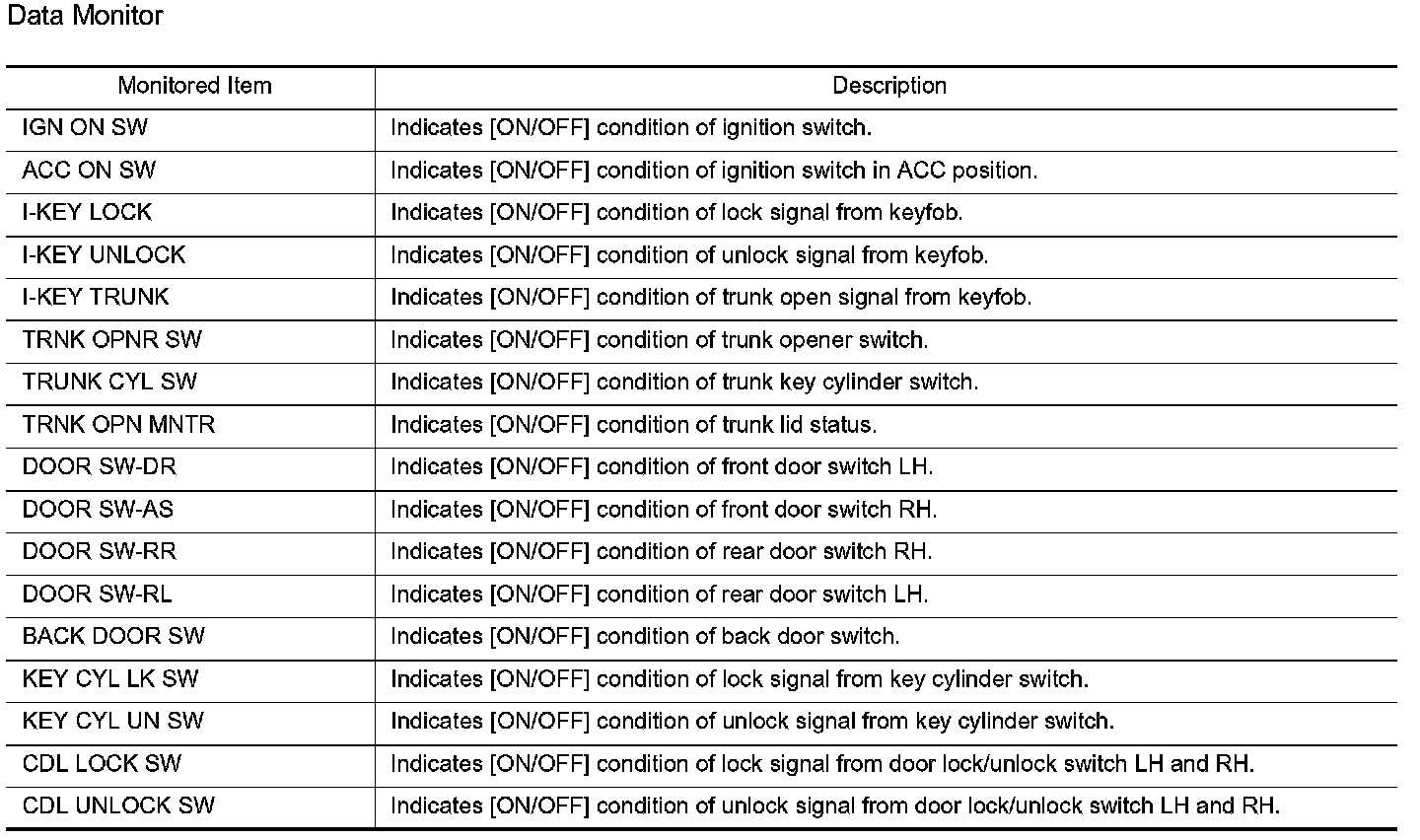

Data Monitor

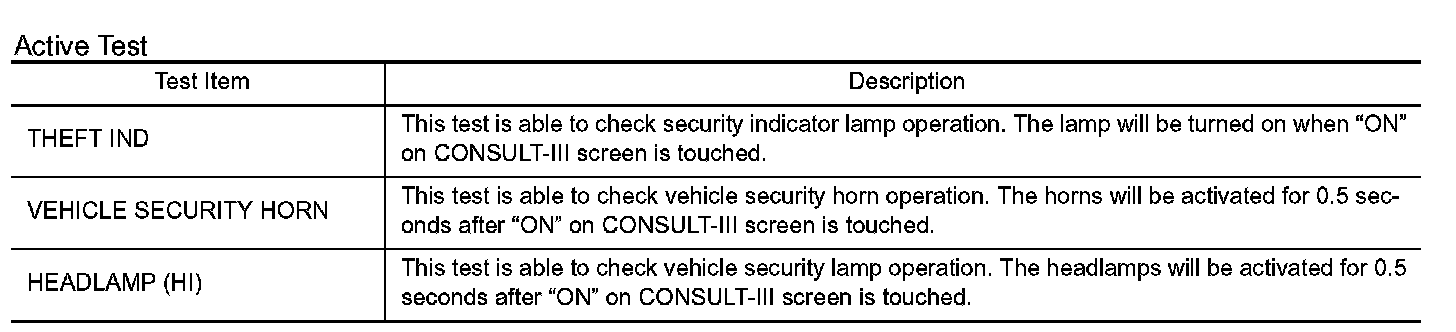

Active Test
