Vehicle Security (Theft Warning) System

VEHICLE SECURITY (THEFT WARNING) SYSTEM


Preliminary Check

1. CHECK BCM CONFIGURATION
Confirm BCM configuration for "THEFT ALARM" is set to "WITH". Refer to Testing and Inspection.
OK or NG
OK >> Proceed with the preliminary check to verify system operation.
NG >> Change BCM configuration for "THEFT ALARM" to "WITH". Refer to Testing and Inspection.

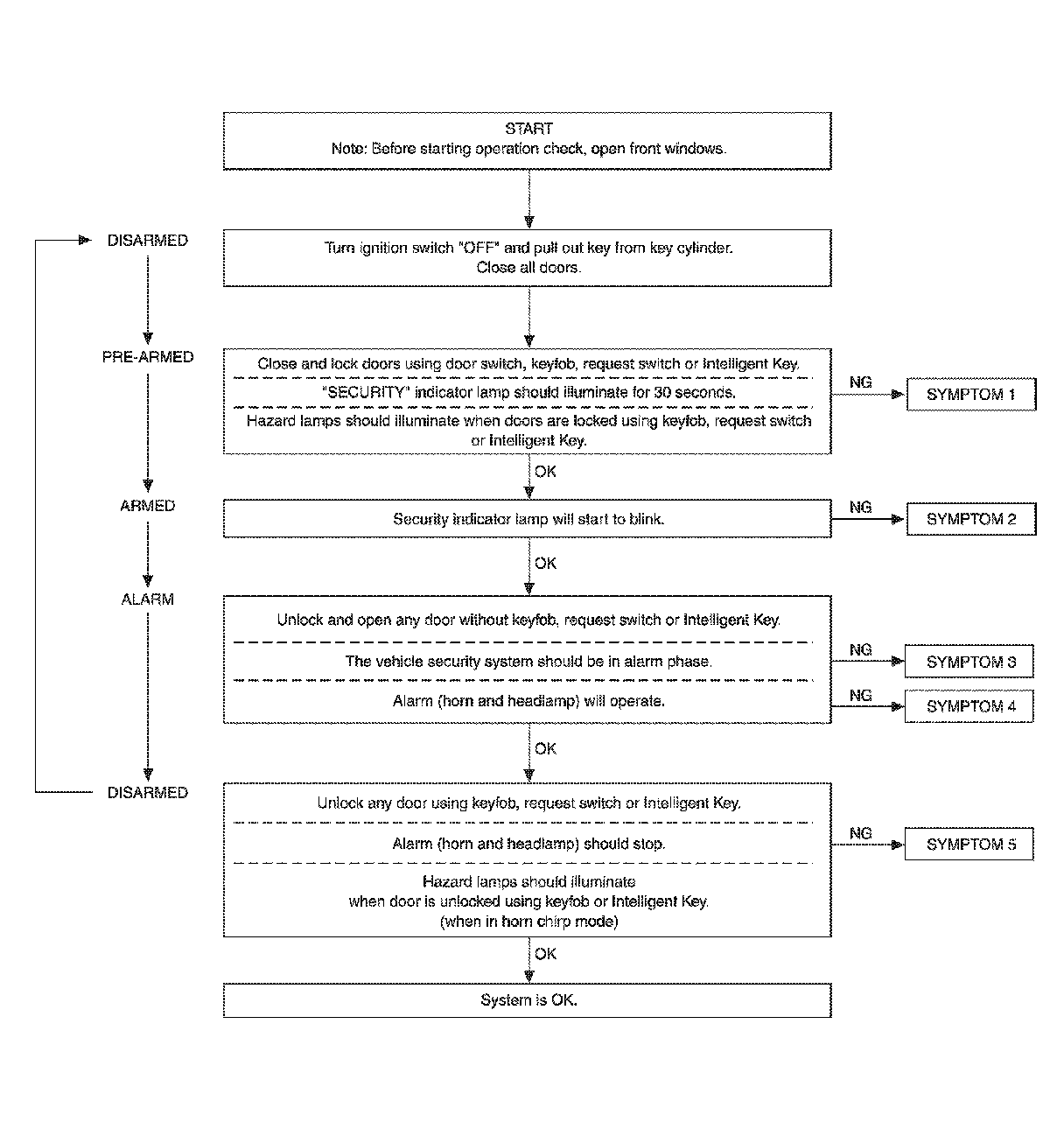

The system operation is canceled by turning ignition switch to ACC at any step between START and ARMED in the following flow chart.





After performing preliminary check, go to symptom chart. Refer to Symptom Chart.
