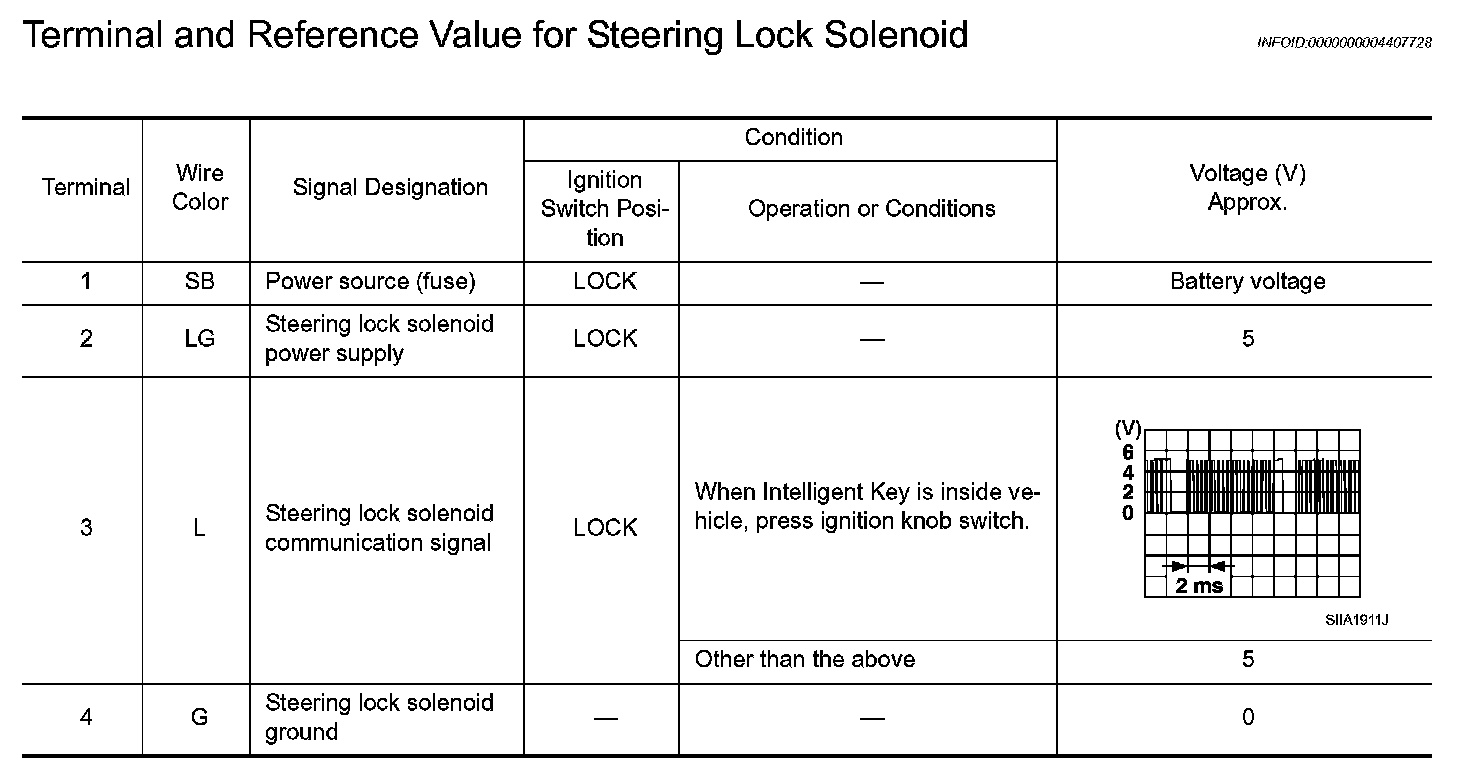

Terminal and Reference Value for Steering Lock Solenoid
Terminal and Reference Value for Steering Lock Solenoid
INTELLIGENT KEY SYSTEM
Terminal and Reference Value for Steering Lock Solenoid
