CVT Device (Park Position Switch) Check

INTELLIGENT KEY SYSTEM


CVT Device (Park Position Switch) Check

1. CHECK CVT DEVICE (PARK POSITION SWITCH) INPUT SIGNAL
1. Turn ignition switch OFF.

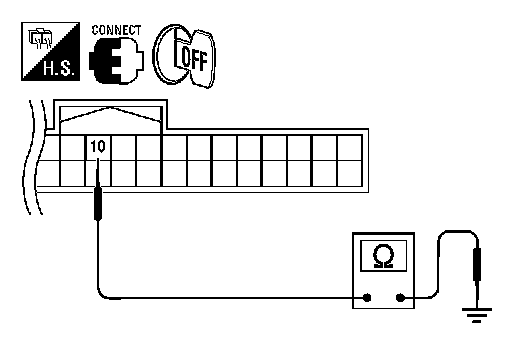

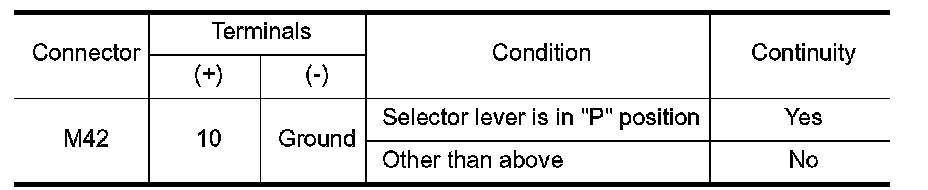

2. Check for continuity between Intelligent Key unit harness connector M42 terminal 10 and ground.










OK or NG
OK >> Replace Intelligent Key unit. Refer to Service and Repair .
NG >> GO TO 2.
2. CHECK CVT DEVICE (PARK POSITION SWITCH) GROUND CIRCUIT
1. Disconnect CVT device (park position switch) connector.

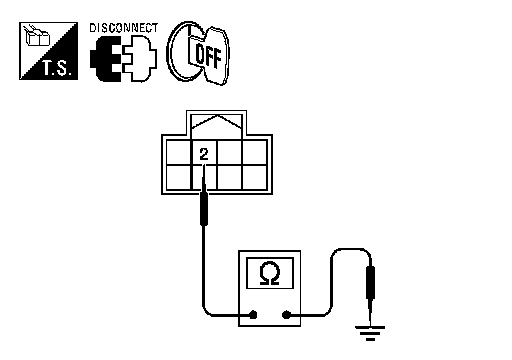

2. Check for continuity between CVT device (park position switch) harness connector M38 terminal 2 and ground.

2 - Ground : Continuity should exist.

OK or NG
OK >> GO TO 3.
NG >> Repair or replace harness.
3. CHECK CVT DEVICE (PARK POSITION SWITCH)

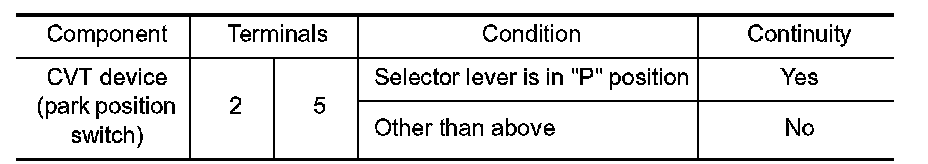

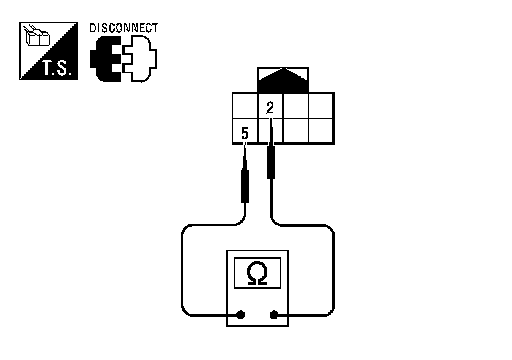

Check continuity between CVT device (park position switch) terminals 2 and 5.










OK or NG
OK >> Repair or replace harness.
NG >> Replace CVT device (park position switch).
