CAN Communication System Inspection

INTELLIGENT KEY SYSTEM


CAN Communication System Inspection

1. CHECK SELF-DIAGNOSTIC RESULTS

With CONSULT-III
- Connect CONSULT-III, and turn ignition switch ON.
- Touch "INTELLIGENT KEY" on "SELECT SYSTEM" screen.
- Touch "SELF-DIAG RESULTS" on "SELECT DIAG MODE" screen.

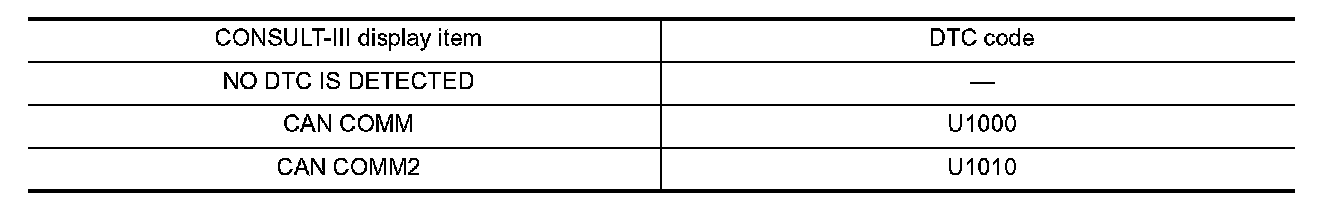

- Check display content in self-diagnostic results.





OK or NG
NO DTC IS DETECTED>> INSPECTION END
CAN COMM [U1000]>> Go to "CAN SYSTEM", Refer to Condition Of Error Detection.
CAN COMM2 [U1010]>> Replace Intelligent Key unit. Refer to Service and Repair.
