BL - KEYLES





REMOTE KEYLESS ENTRY SYSTEM


Wiring Diagram - KEYLES -

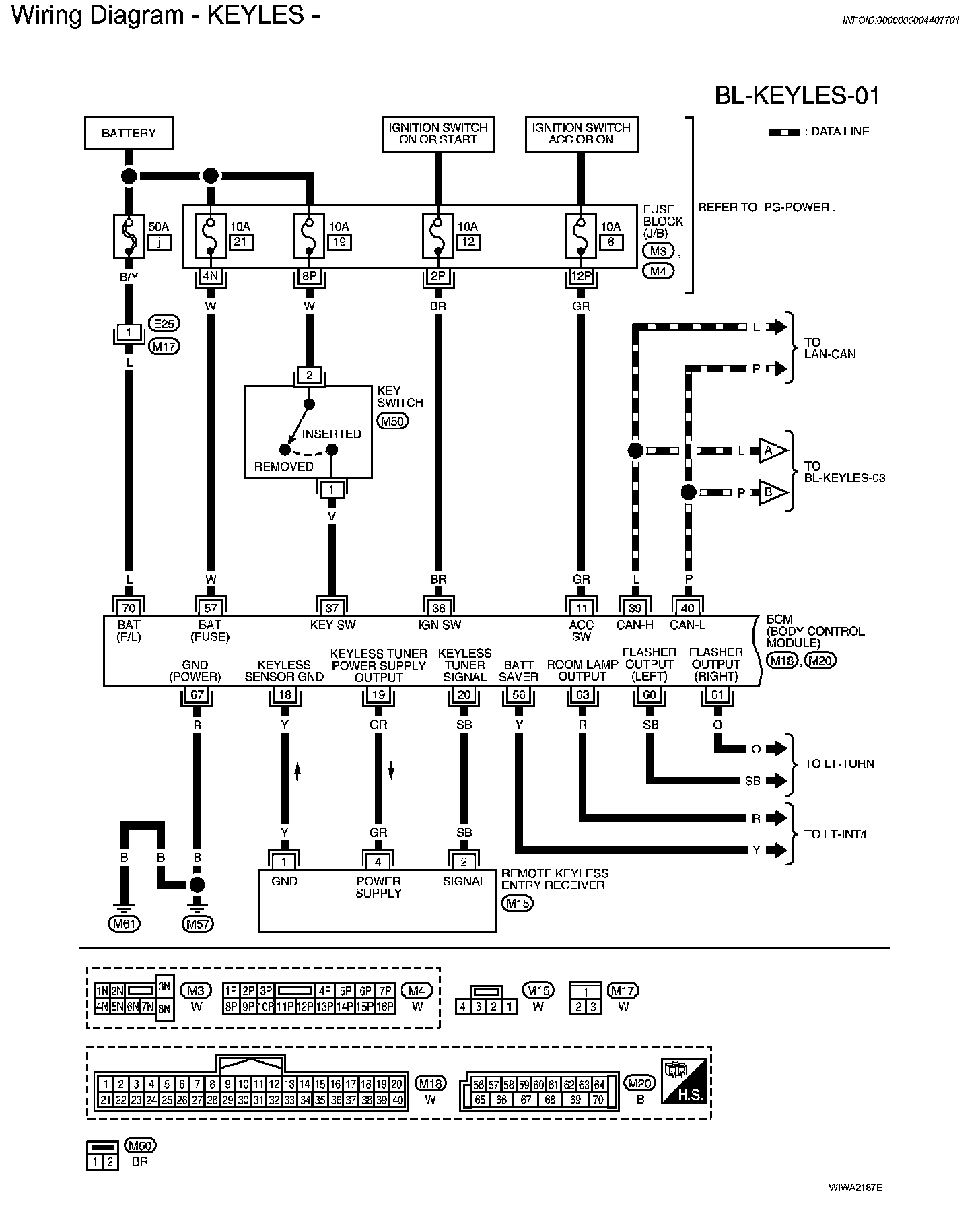

BL-KEYLES-01:

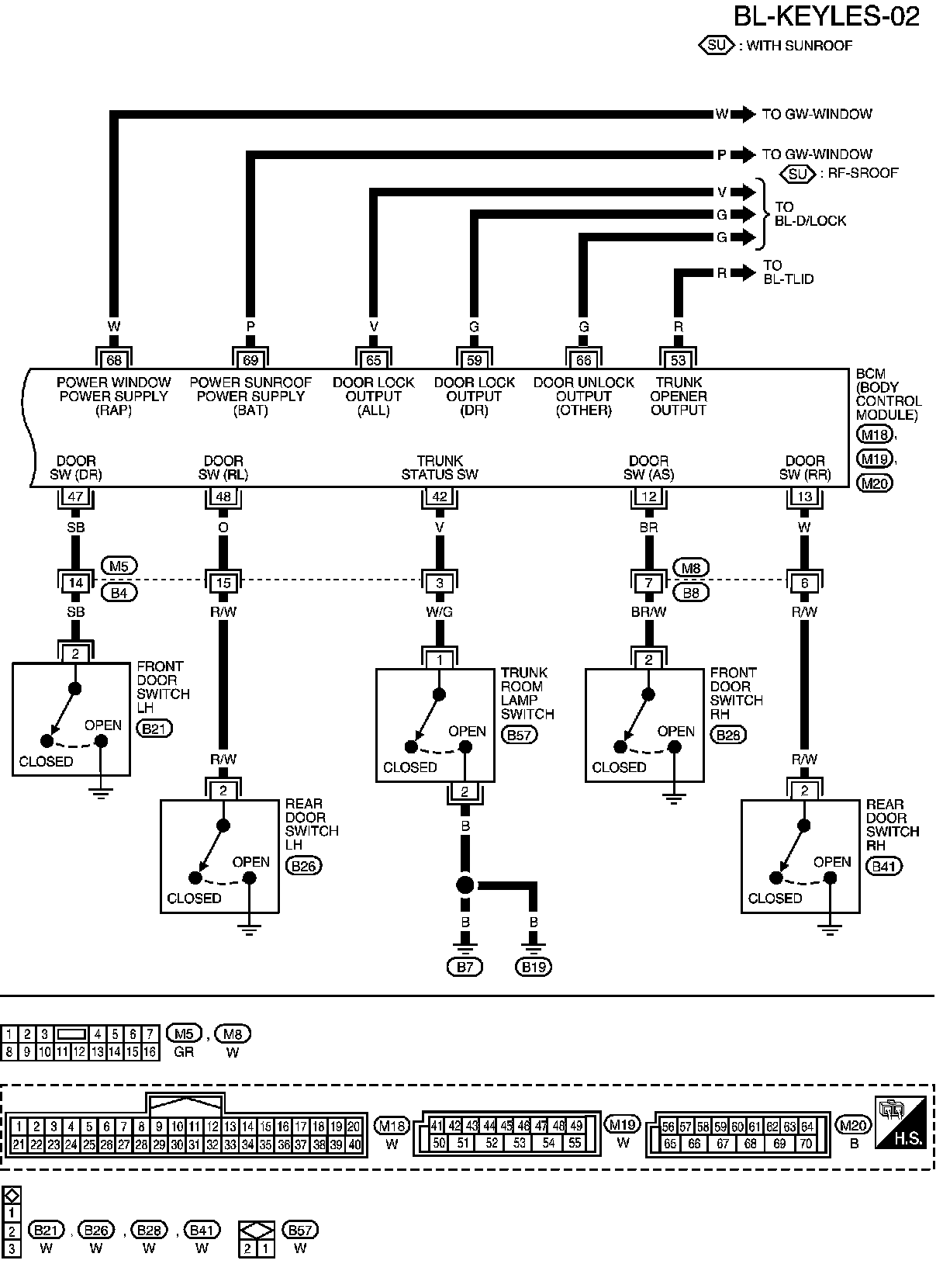

BL-KEYLES-02:

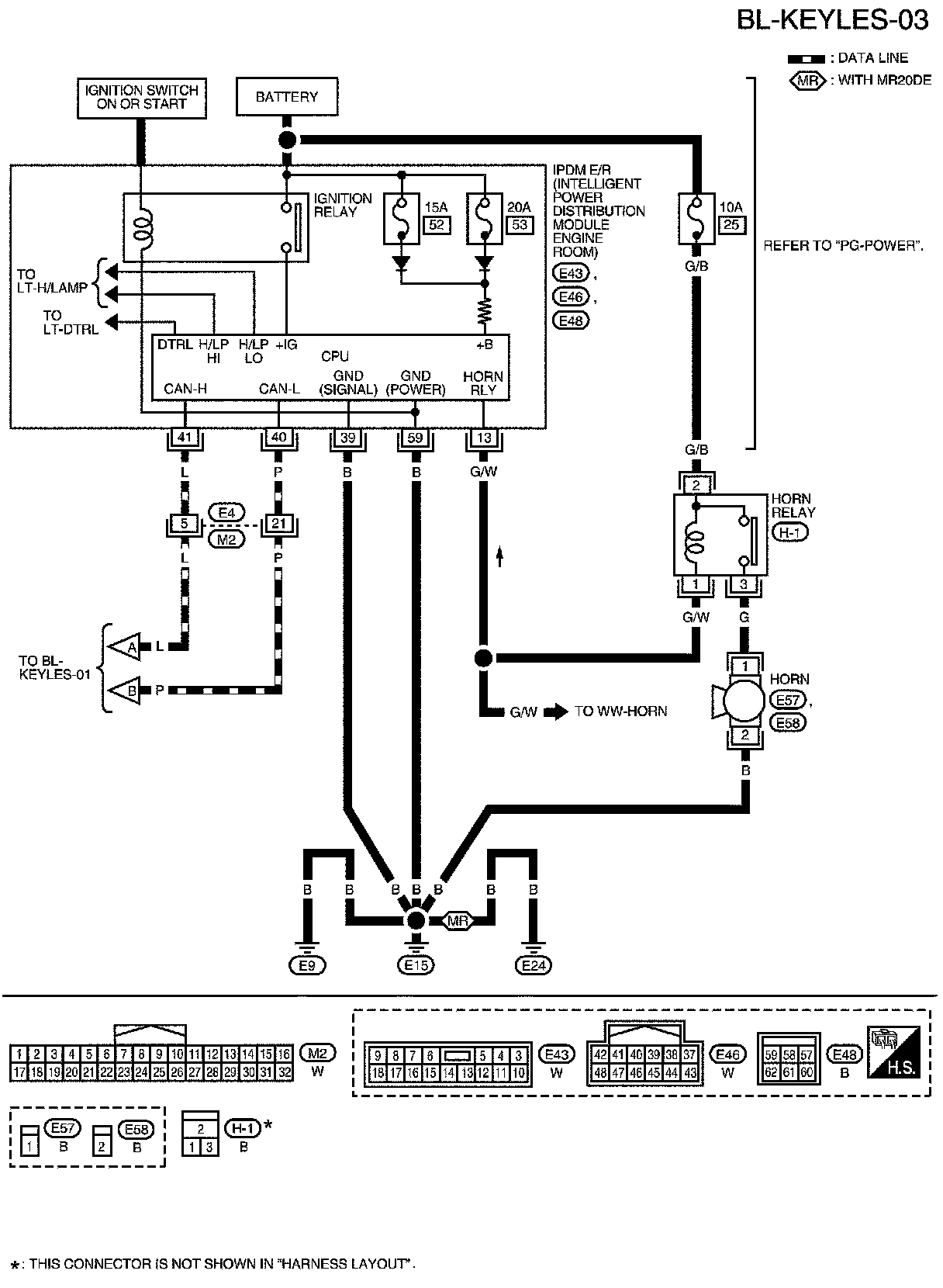

BL-KEYLES-03:
