Home >> Nissan-Datsun >> 2008 >> Sentra L4-2.0L (MR20DE) >> Repair and Diagnosis >> Wiper and Washer Systems >> Testing and Inspection >> Component Tests and General Diagnostics >> Front Wiper Does Not Operate

Front Wiper Does Not Operate

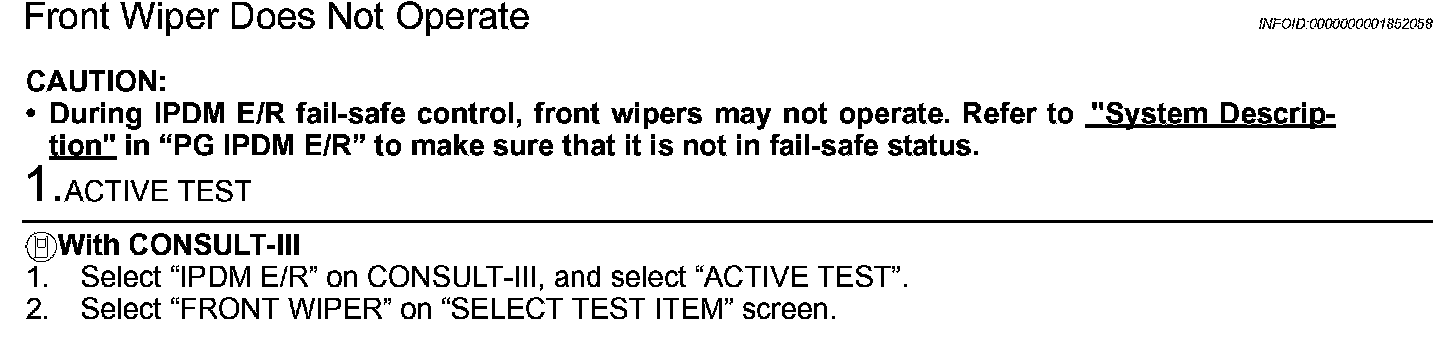

Step 1:



Step 1 (Continued)-5:

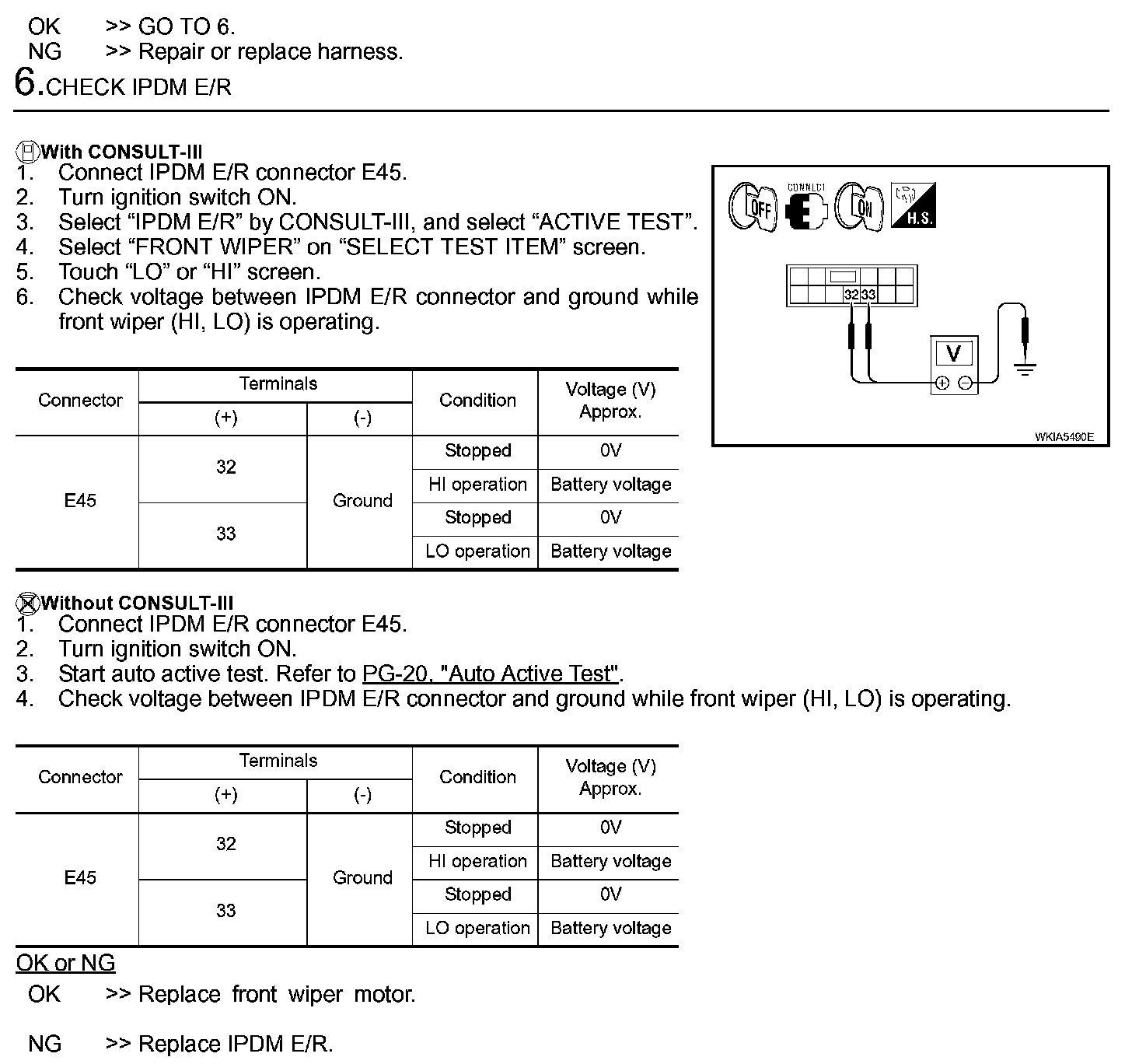

Step 5 (Continued)-6:
