Removal and Replacement

REAR DOOR GLASS AND REGULATOR

Removal and Installation






DOOR GLASS

Removal
1. Remove the rear door finisher.
2. Position aside the sealing screen.

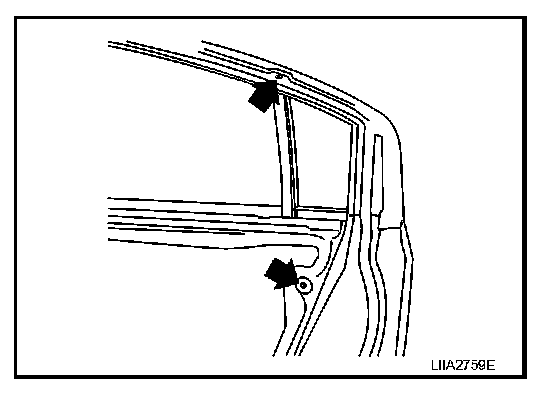

3. Remove partition sash bolt and screw, pull the partition sash downward and tilt the upper end of the sash forward to pull the sash out upward.





4. Pull out the partition glass in the direction as shown.





5. If equipped, operate the power window switch to raise/lower the door window until the glass bolts can be seen.

NOTE: Connect the harness connector to the power window switch.

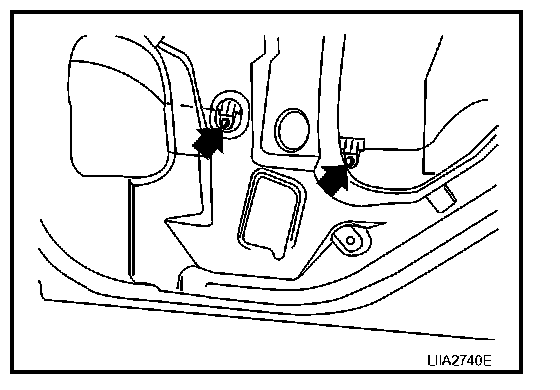

6. Remove the rear door glass bolts.
7. Pull out the rear door glass toward the outside of the door to remove.
8. Remove the door glass run from the door panel.

Installation
Installation is in the reverse order of removal.

REGULATOR ASSEMBLY

Removal
1. Remove and position aside the rear door finisher.
2. Disconnect the harness connector of rear speaker.
3. Position aside the sealing screen.





4. If equipped, operate the power window switch to raise/lower the door window until the glass bolts can be seen.

NOTE: Connect the harness connector to the power window switch.

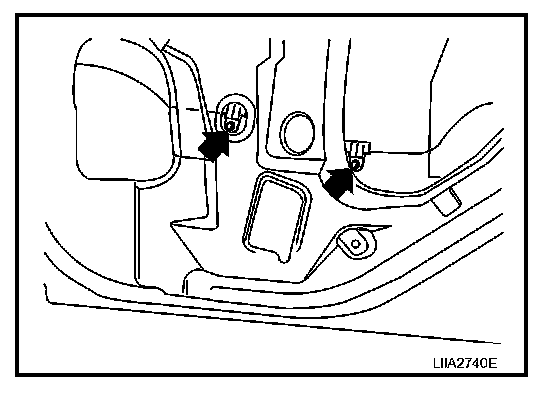

5. Remove the rear door glass bolts.

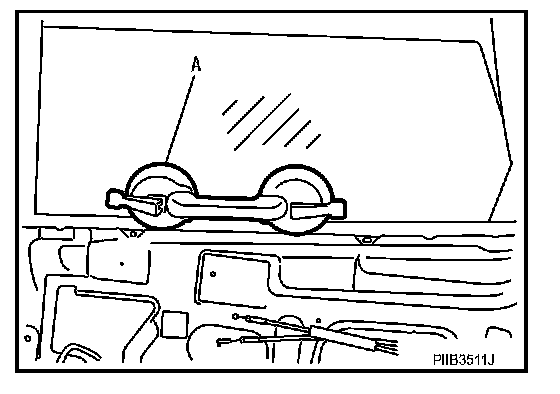

6. Raise up the door glass and hold with a suction lifter (A).

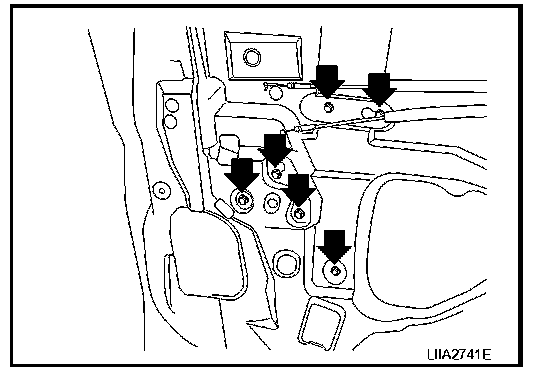

7. Remove the regulator bolts, and then remove the regulator assembly from the door panel.

Installation
Installation is in the reverse order of removal.

Inspection after Removal

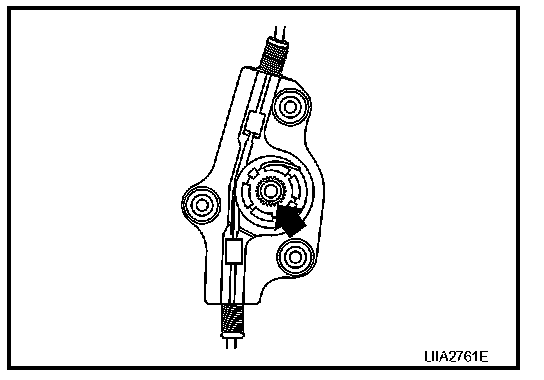

Check the regulator assembly for the following. If a problem is detected, grease or replace it as shown.





- Gear wear





- Regulator deformation
- Grease application points for each sliding part
