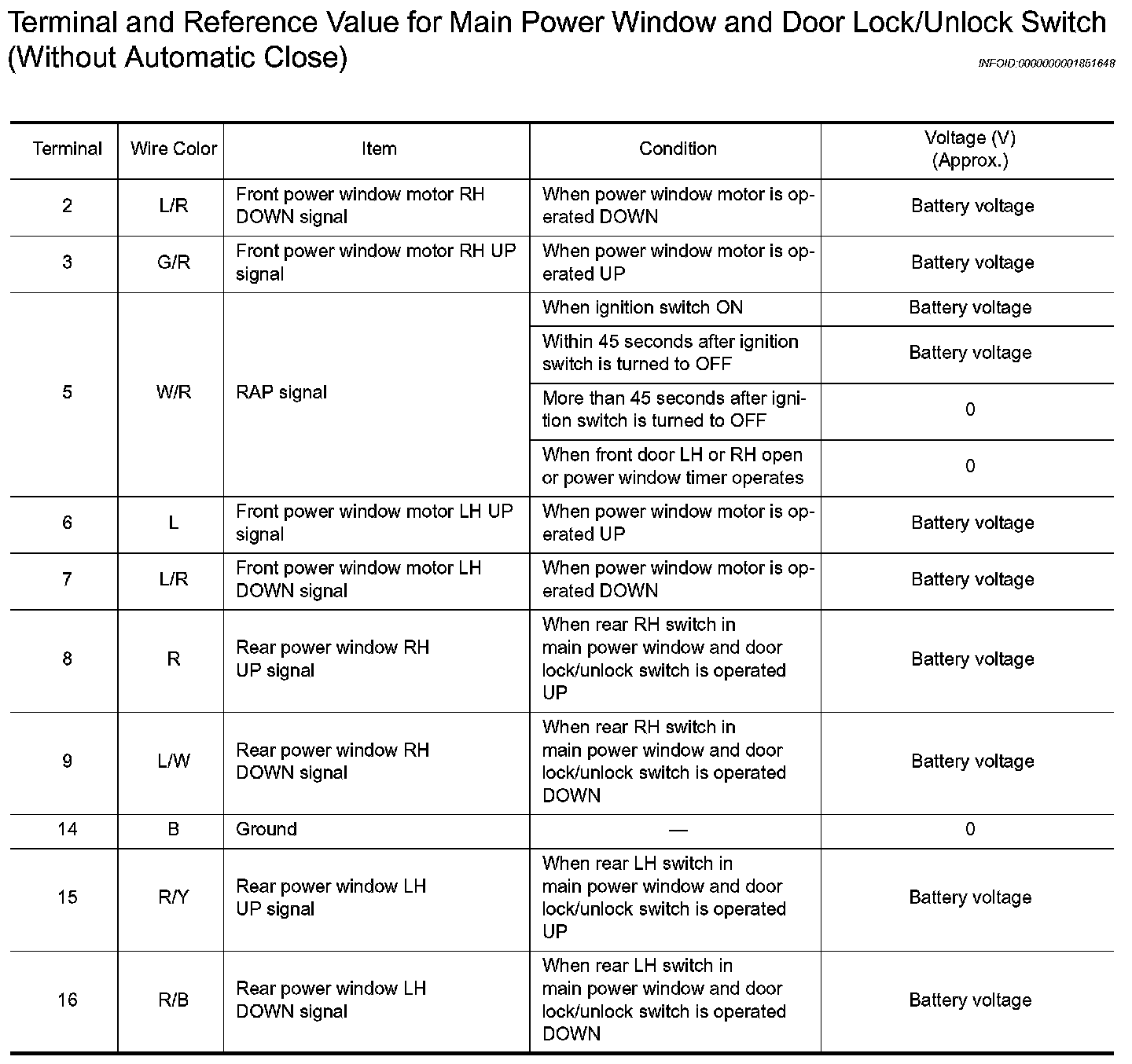

Terminal and Reference Value For Main Power Window and Door Lock/Unlock Switch(Without Automatic Close)

Terminal And Reference Value For Main Power Window And Door Lock/Unlock Switch (Without Automatic Close):
