Rear Power Window RH Circuit Inspection (Rear Power Window Switch RH Operation Without Automatic Close)

POWER WINDOW SYSTEM

Rear Power Window RH Circuit Inspection (Rear Power Window Switch RH Operation Without Automatic Close)

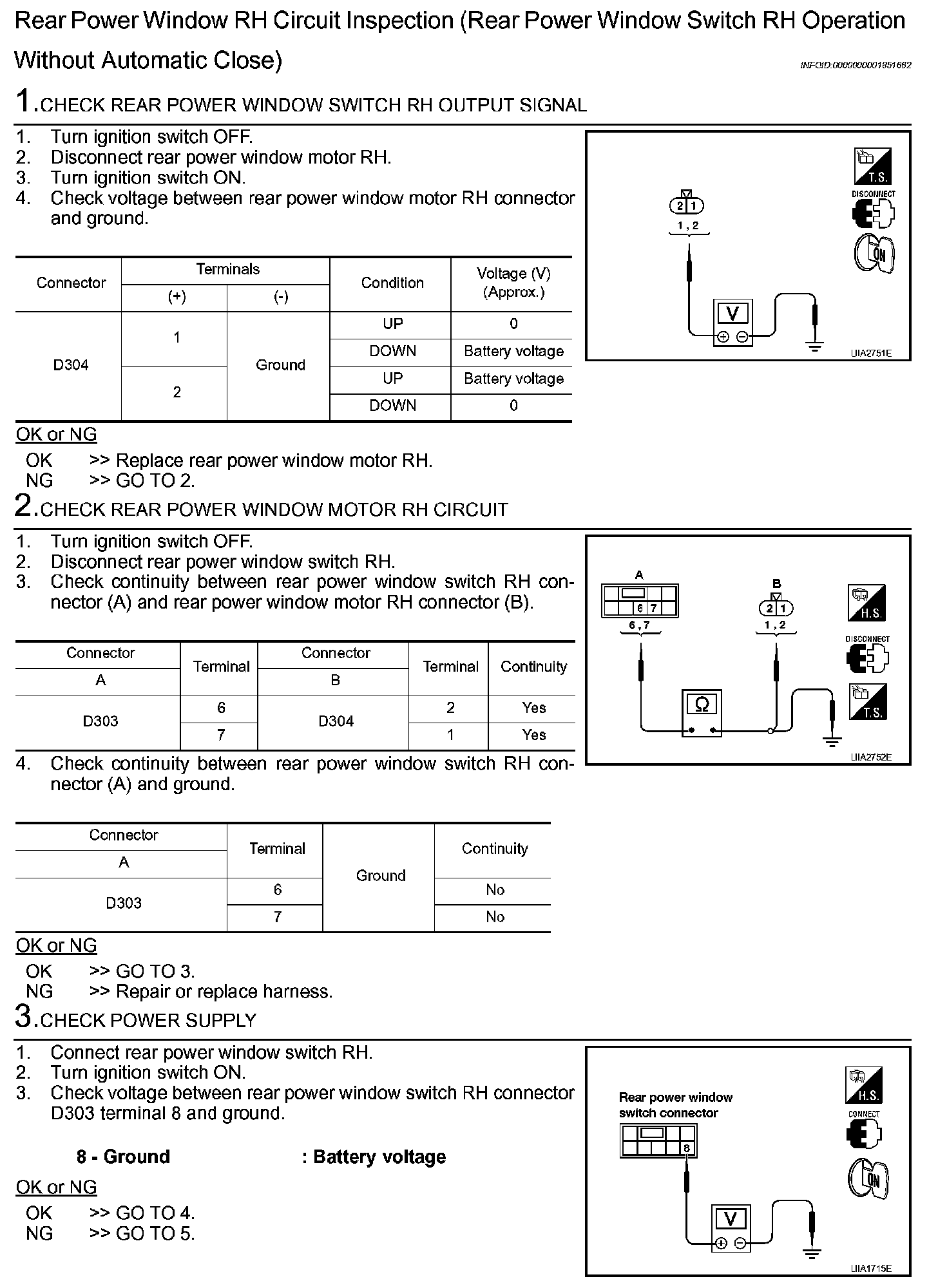

Step 1-3:




Step 4-7:

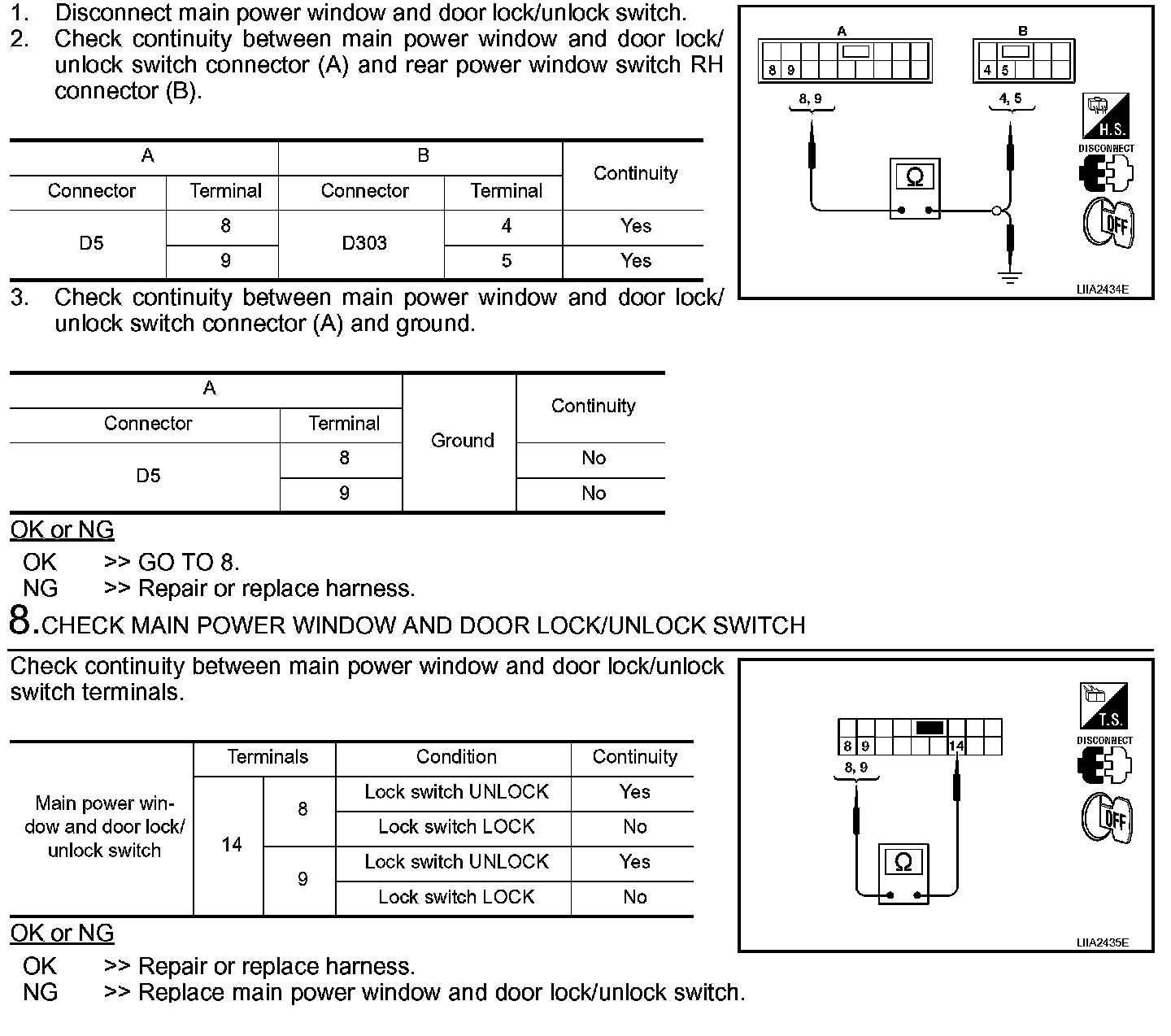

Step 7 (Continued)-8:
