Rear Power Window RH Circuit Inspection (Main Power Window and Door Lock/Unlock Switch Operation With Automatic Close)

POWER WINDOW SYSTEM

Rear Power Window RH Circuit Inspection (Main Power Window and Door Lock/Unlock Switch Operation With Automatic Close)

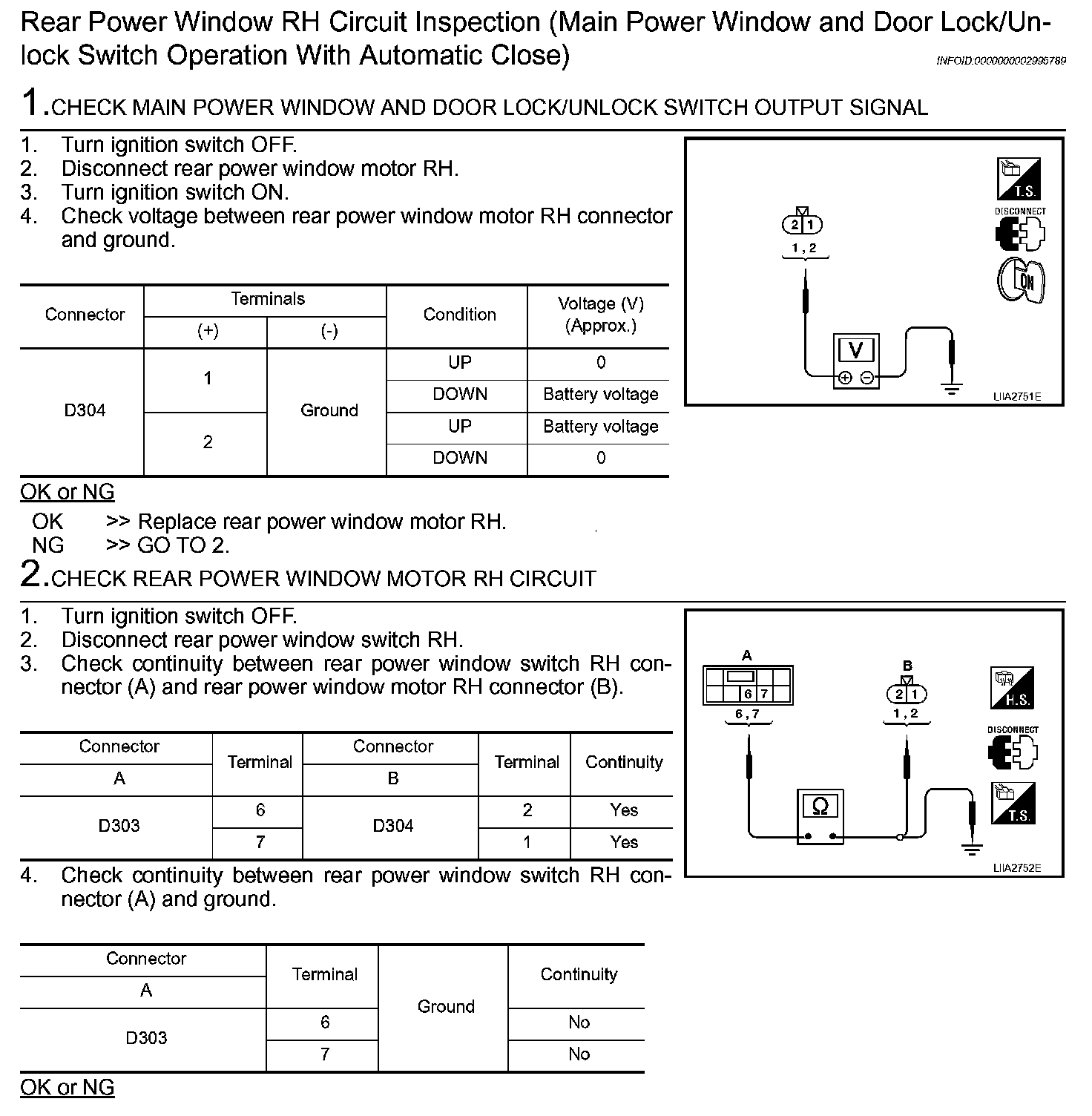

Step 1-2:




Step 2 (Continued)-5:
