Front Power Window RH Circuit Inspection (Main Power Window and Door Lock/Unlock Switch Operation With Automatic Close)

POWER WINDOW SYSTEM

Front Power Window RH Circuit Inspection (Main Power Window and Door Lock/Un-lock Switch Operation With Automatic Close)

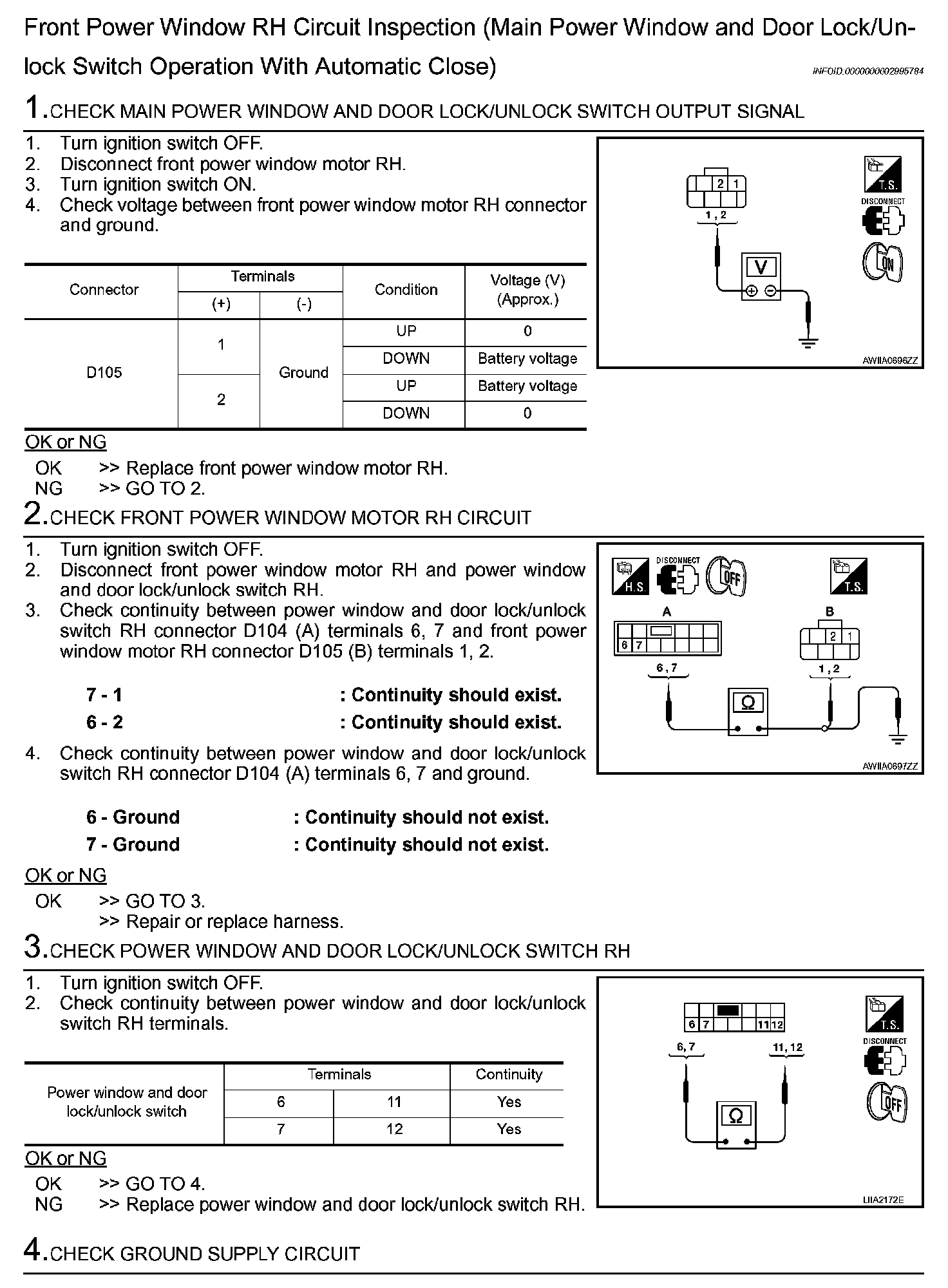

Step 1-4:

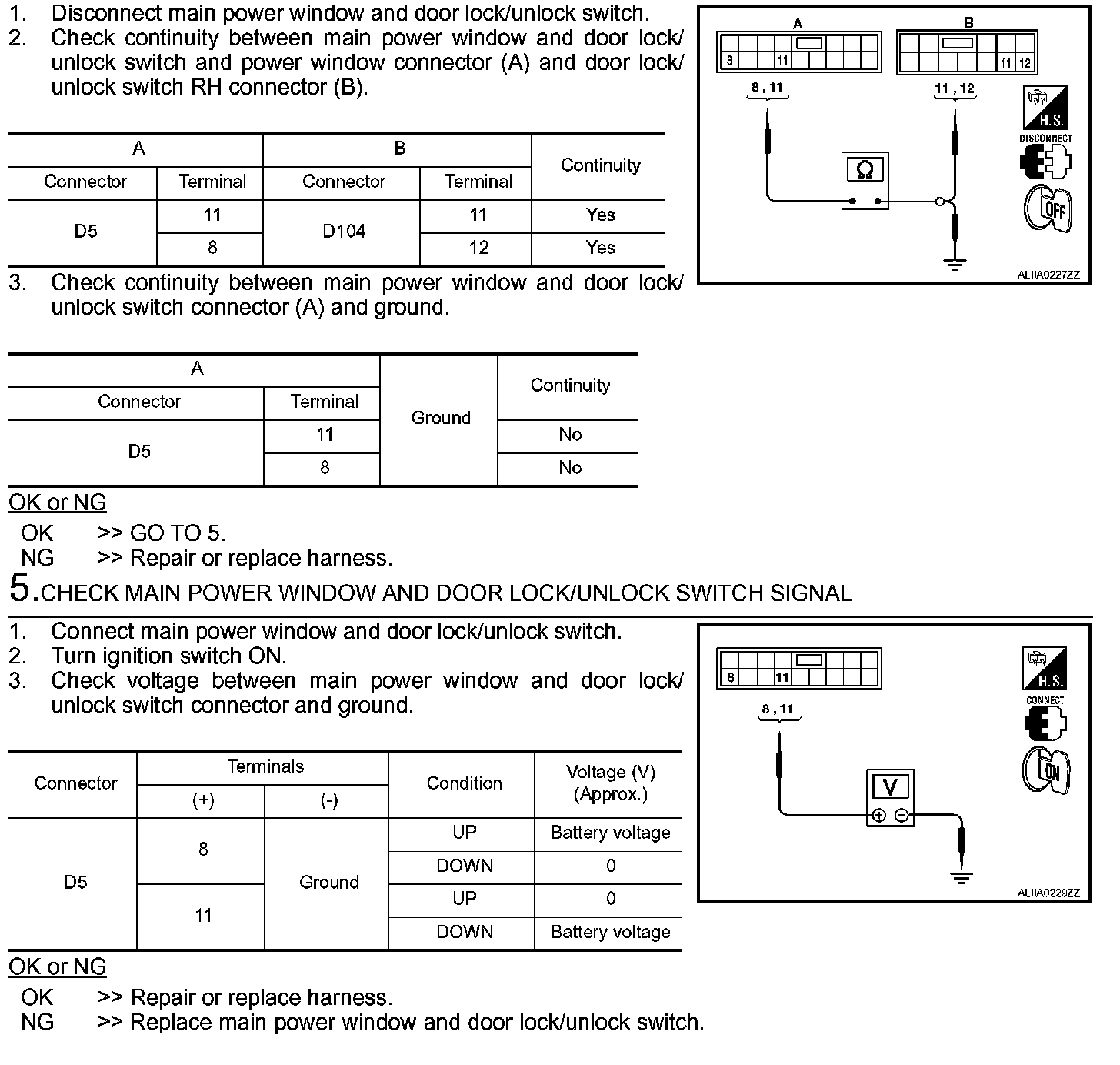

Step 4 (Continued)-5:
