Front Power Window LH Circuit Inspection (With Automatic Close)
Front Power Window LH Circuit Inspection (With Automatic Close)
POWER WINDOW SYSTEM
Front Power Window LH Circuit Inspection (With Automatic Close)

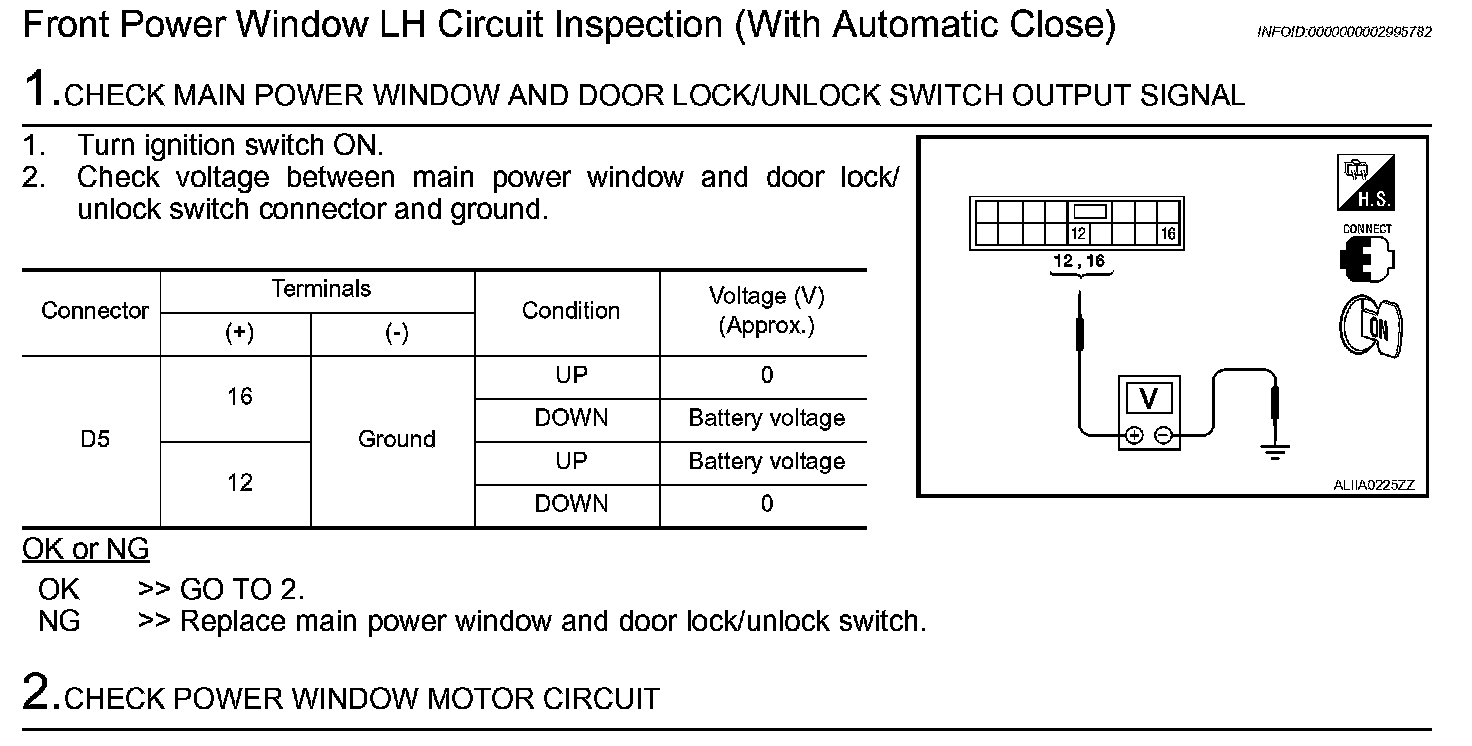

Step 1-2:

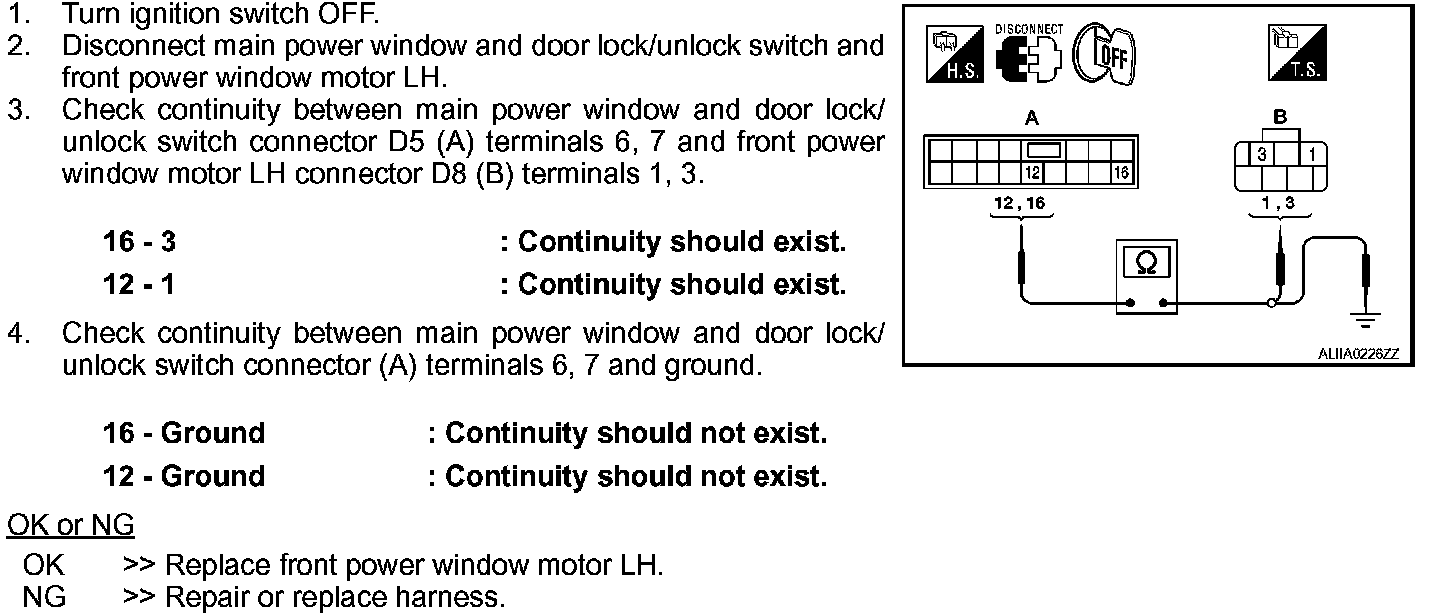

Step 2 (Continued):
