Home >> Nissan-Datsun >> 2008 >> Sentra L4-2.0L (MR20DE) >> Repair and Diagnosis >> Windows and Glass >> Windows >> Testing and Inspection >> Component Tests and General Diagnostics >> Door Switch Check

Door Switch Check

POWER WINDOW SYSTEM

Door Switch Check

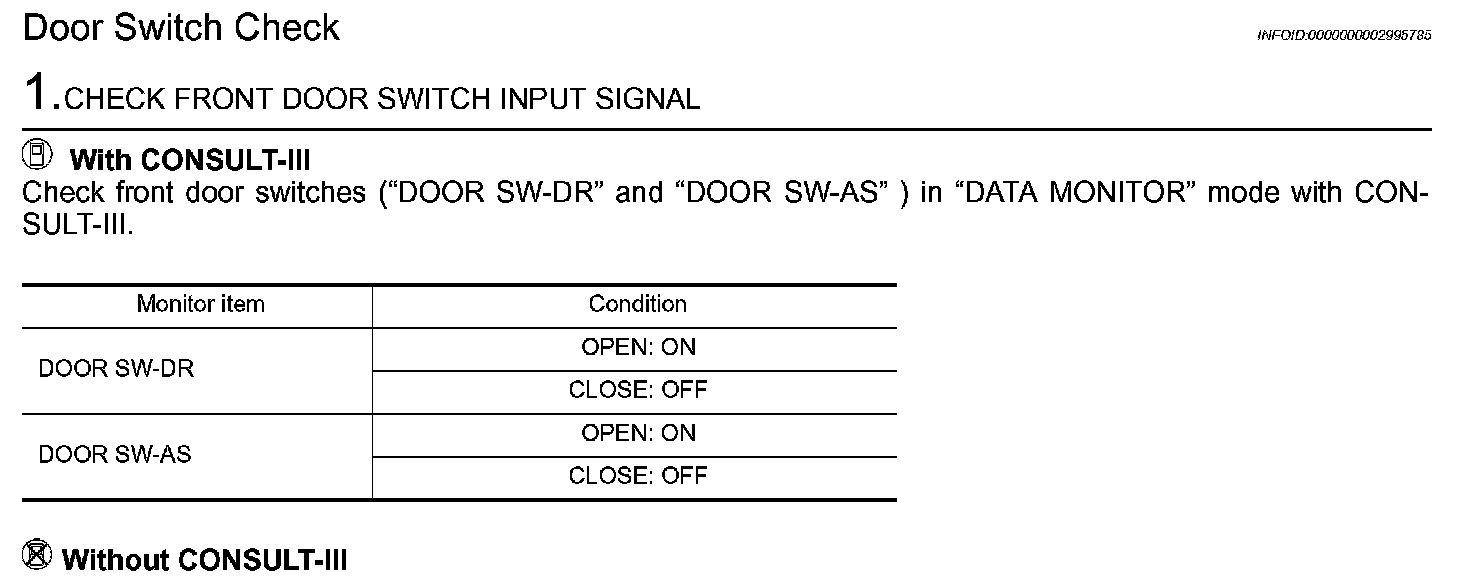

Step 1:

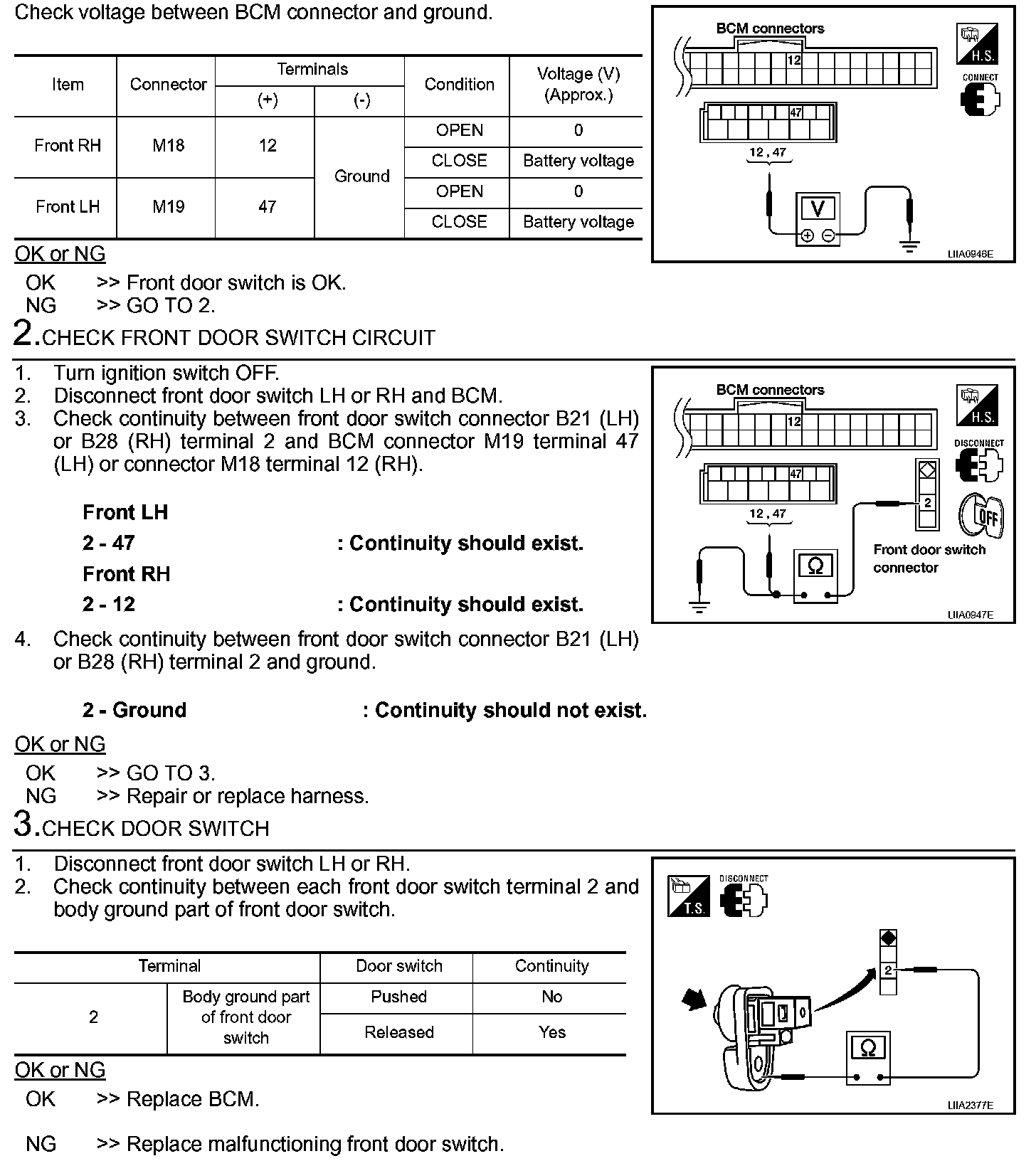

Step 1 (Continued)-3:
