Consult-III Function (Transmission)

CONSULT-III Function (TRANSMISSION)
CONSULT-III can display each diagnostic item using the diagnostic test modes shown below.

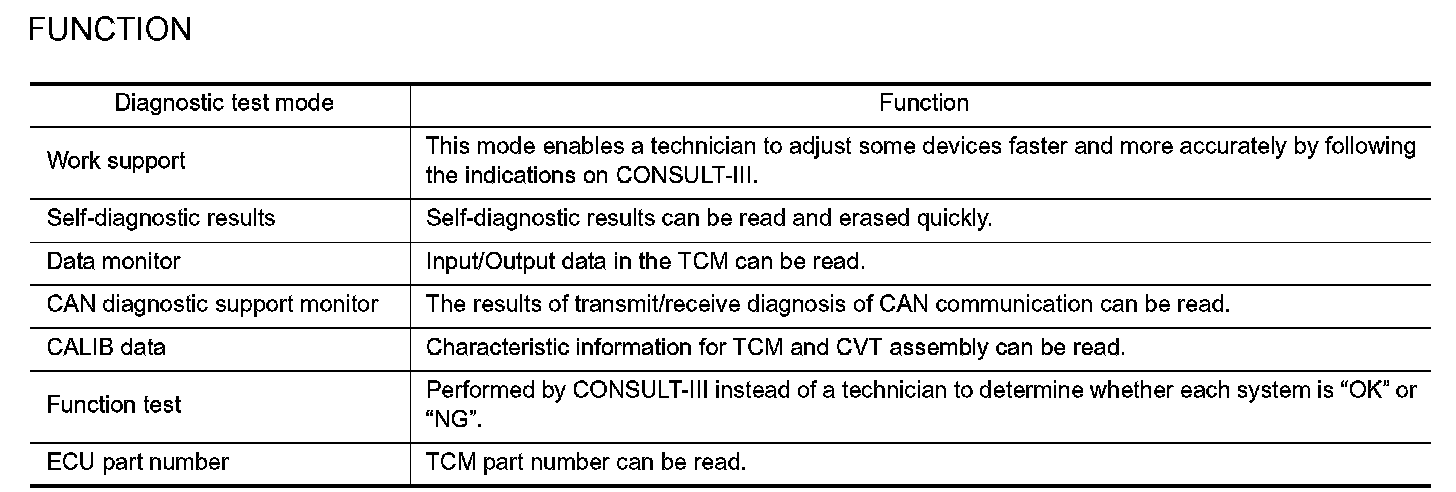

FUNCTION:

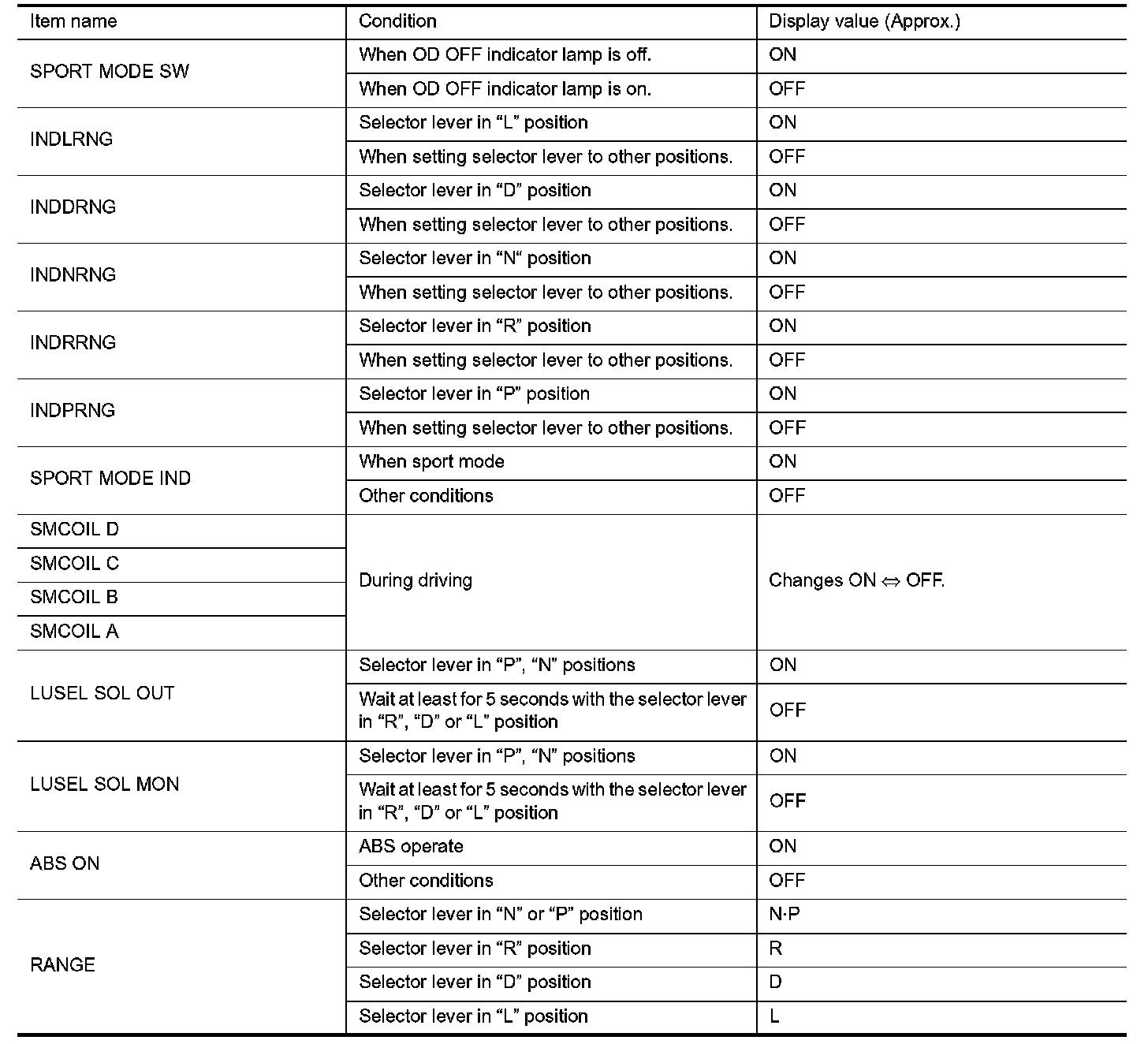

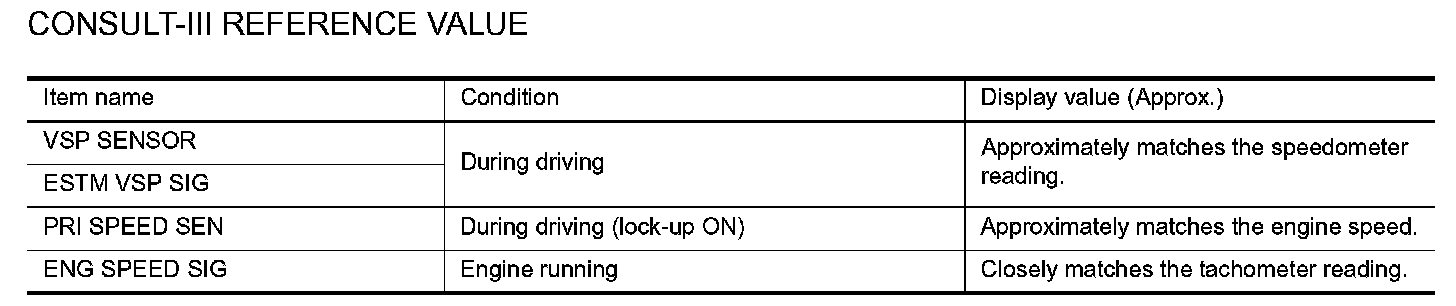

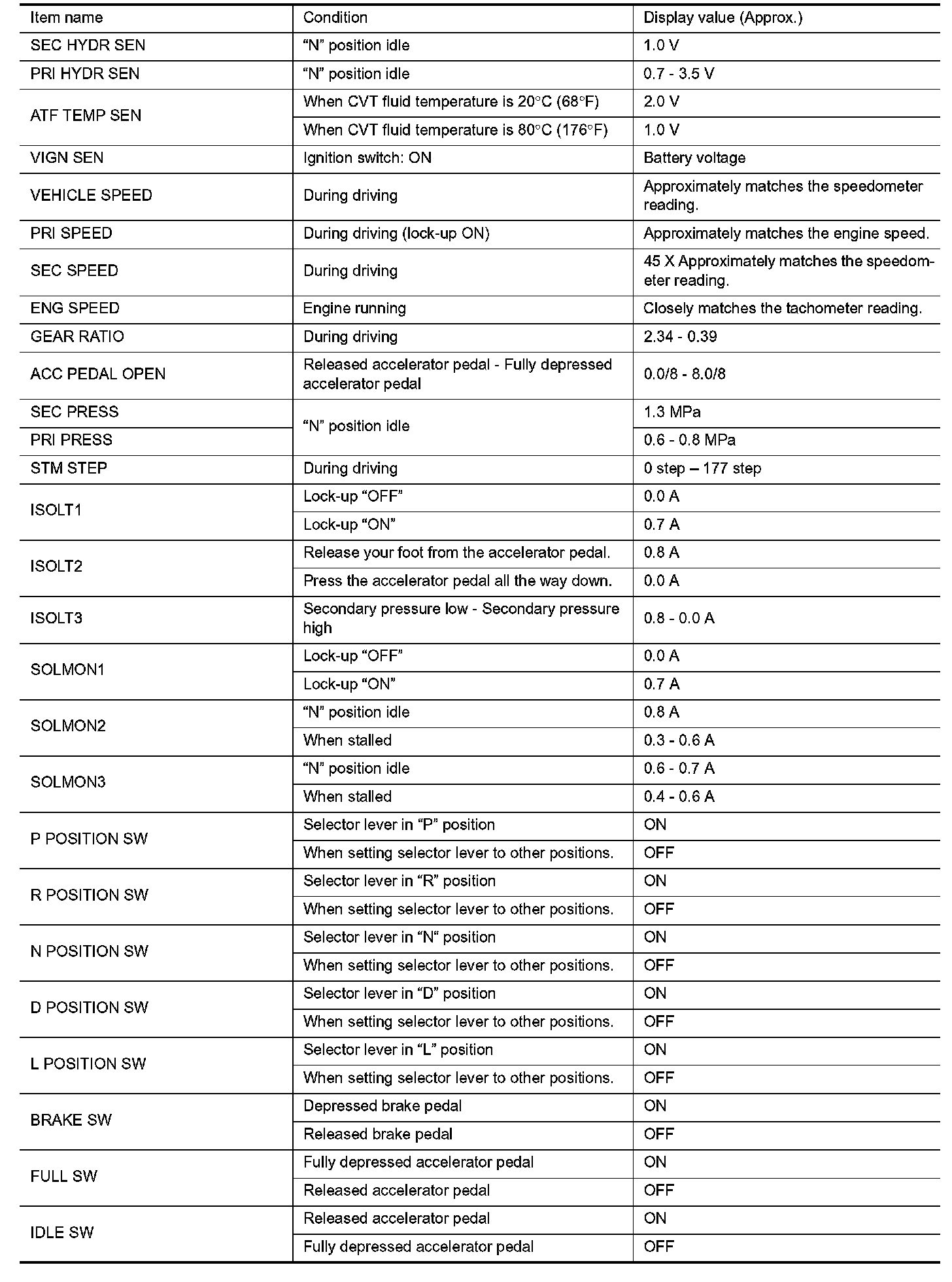

CONSULT-III REFERENCE VALUE (Part 1):

CONSULT-III REFERENCE VALUE (Part 2):

CONSULT-III REFERENCE VALUE (Part 3):

WORK SUPPORT MODE

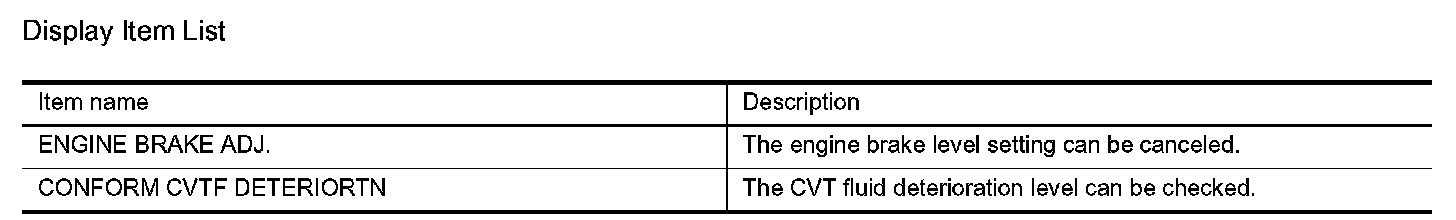

Display Item List:

Engine Brake Adjustment
"ENGINE BRAKE LEVEL"
0: Initial set value (Engine brake level control is activated)
OFF: Engine brake level control is deactivated.

CAUTION:
Mode of "+1" "0" "-1" "-2" "OFF" can be selected by pressing the "UP" "DOWN" on CONSULT-III screen. However, do not select mode other than "0" and "OFF". If the "+1" or "-1" or "-2" is selected, that might cause the irregular driveability.

Check CVT Fluid Deterioration Date
"CVTF DETERIORATION DATE"
More than 210000: It is necessary to change CVT fluid.
Less than 210000: It is not necessary to change CVT fluid.

CAUTION:
Touch "CLEAR" after changing CVT fluid, and then erase "CVTF DETERIORATION DATE".

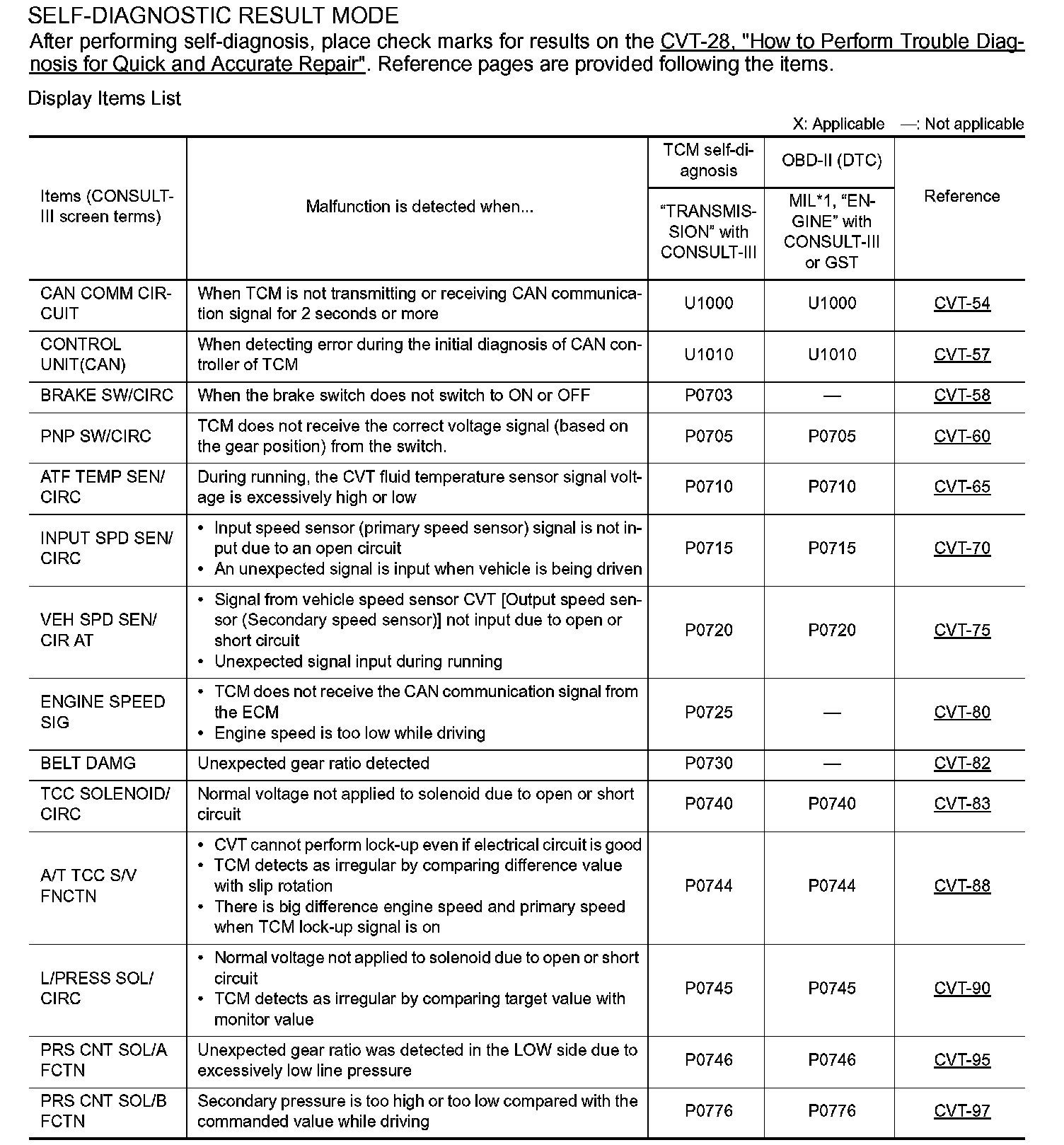

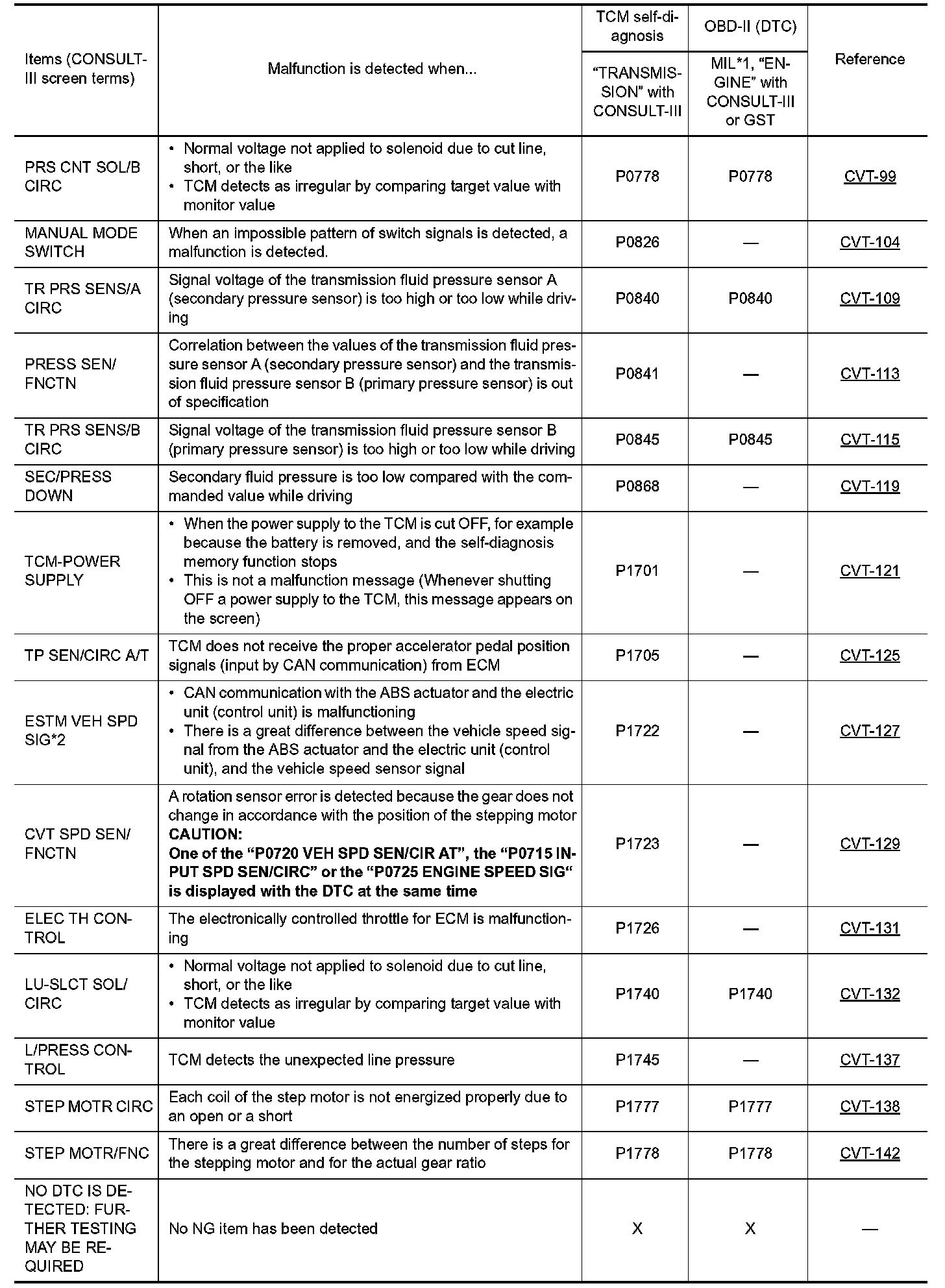

SELF-DIAGNOSTIC RESULT MODE

Display Items List (Part 1):

Display Items List (Part 2):

Display Items List (Part 3):

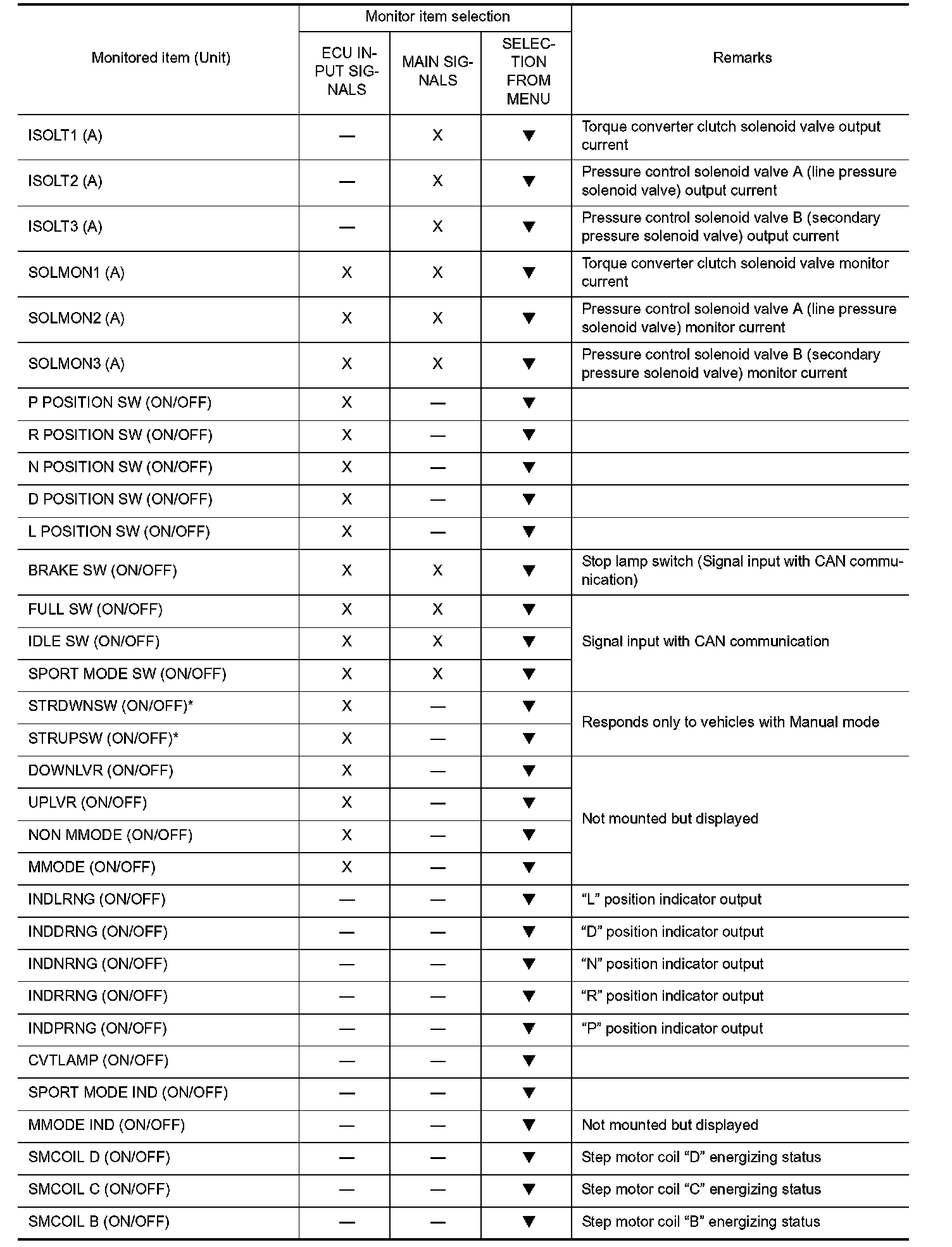

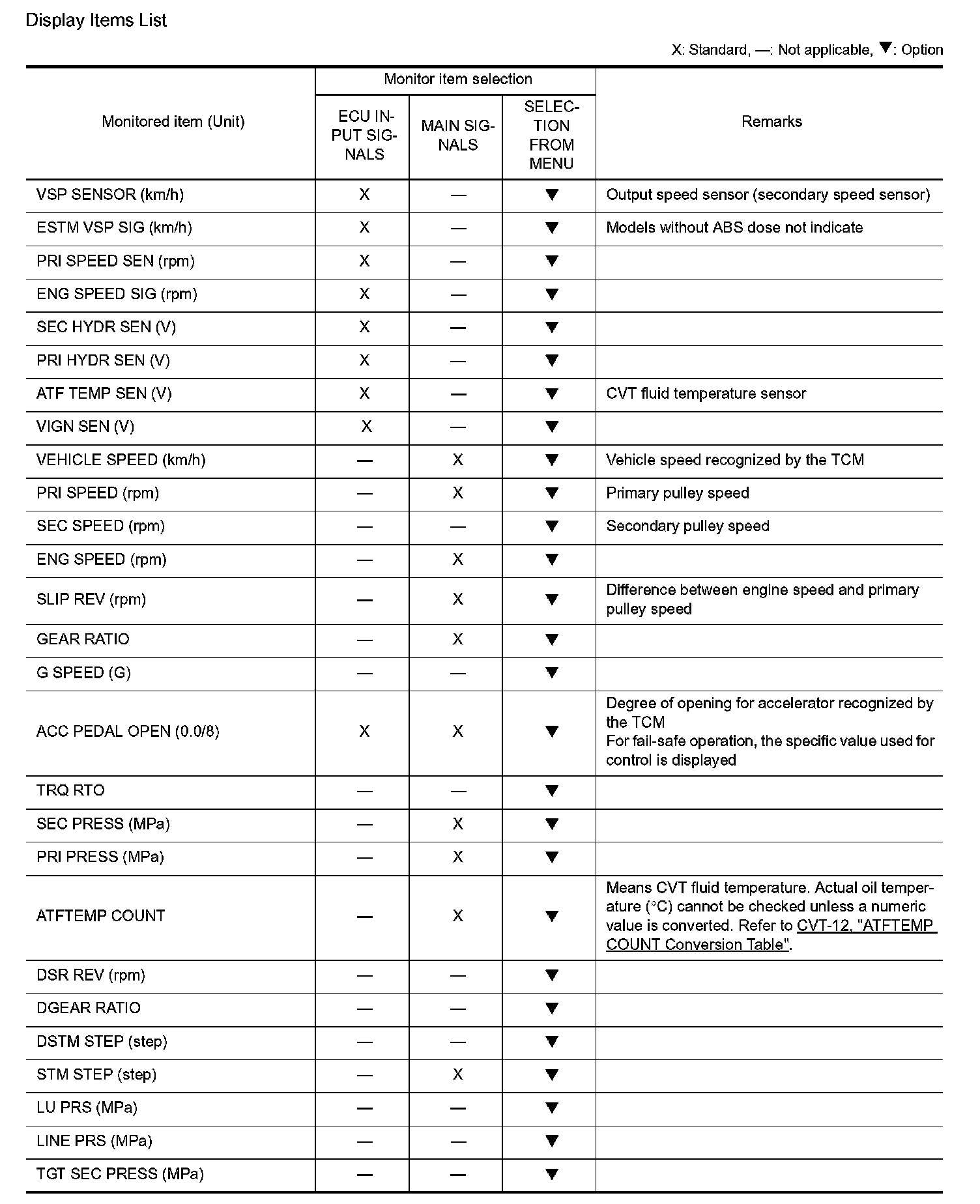

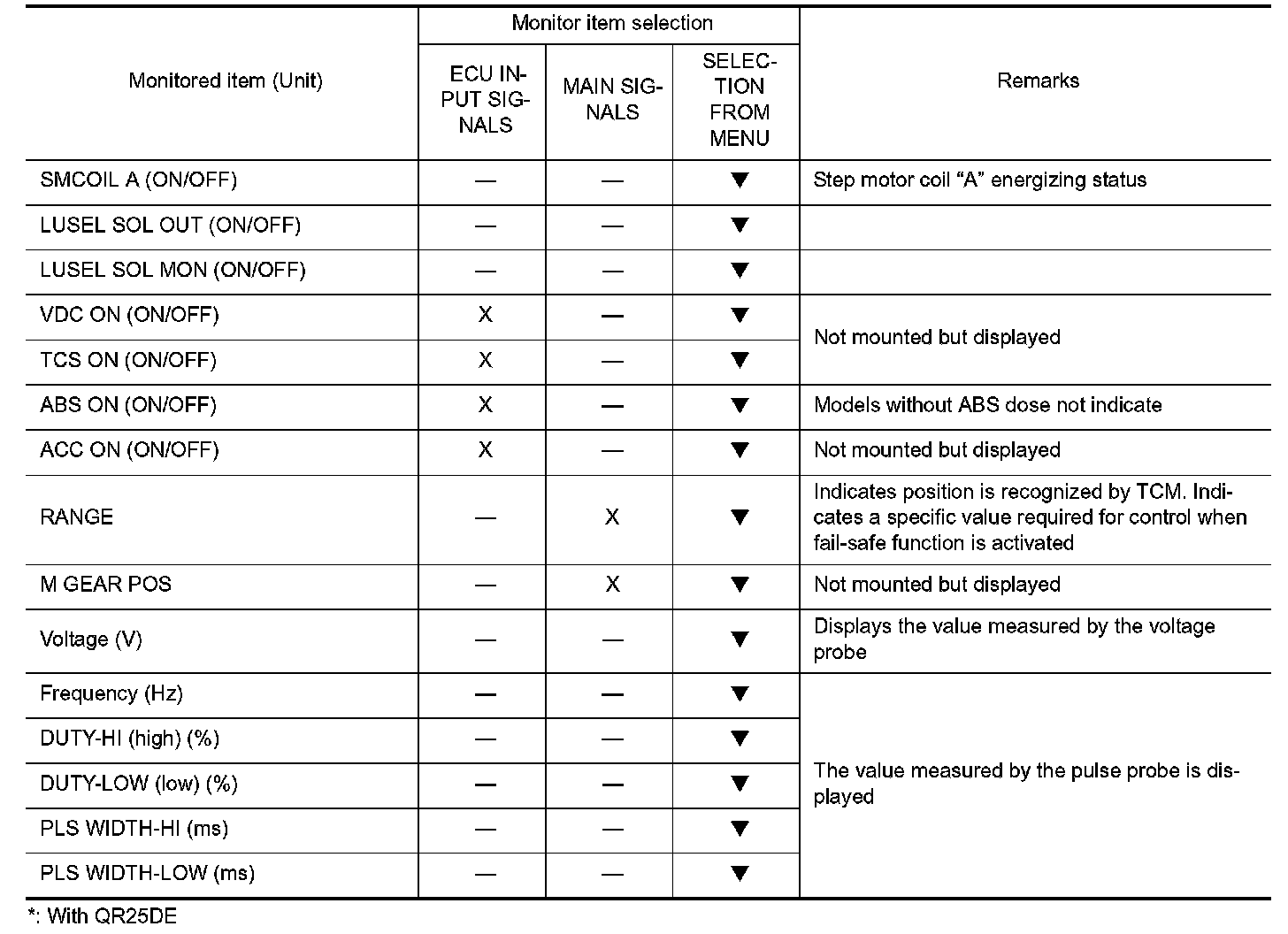

DATA MONITOR MODE
