RS6F94R

Checking

NOTE:
For removal and installation of the switches, refer to MT-18, "Disassembly and Assembly". Disassembly and Assembly

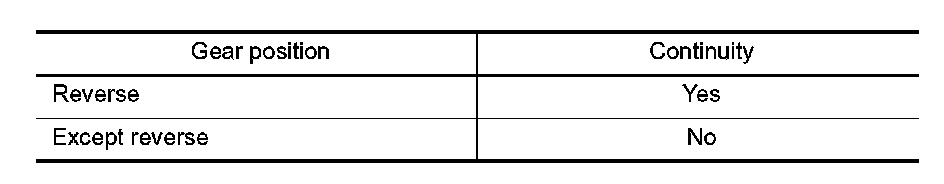

BACK-UP LAMP SWITCH

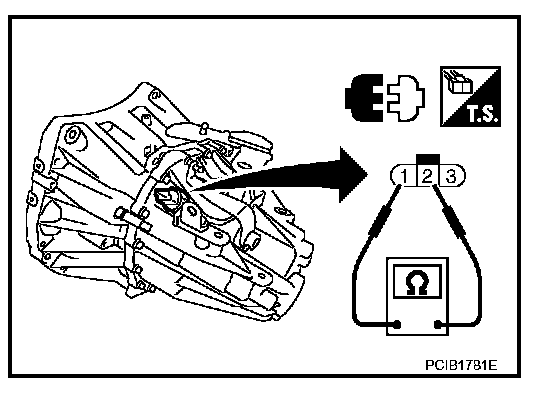

^ Check continuity between terminals 1 and 2.

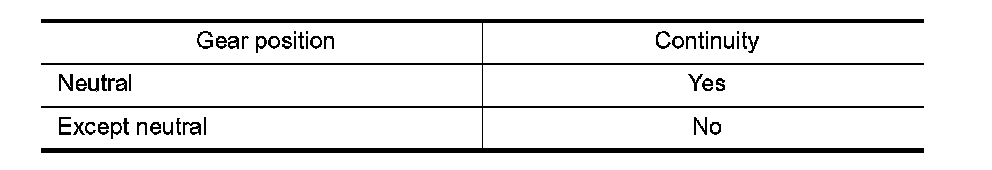

PARK/NEUTRAL POSITION SWITCH








^ Check continuity between terminals 2 and 3.
