RS6F52H

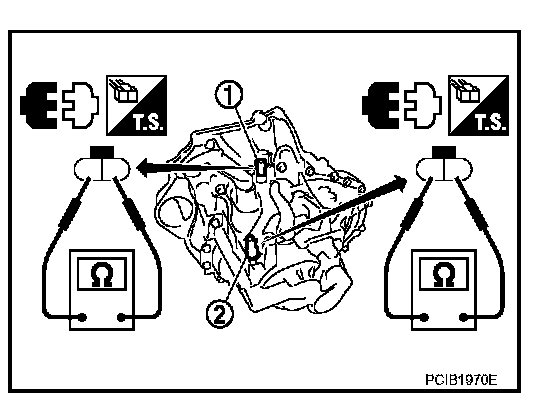

Checking

NOTE:
For removal and installation of the switches, refer to MT-144, "Disassembly and Assembly". Disassembly and Assembly

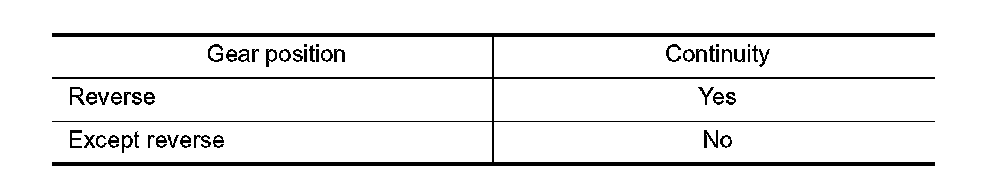

BACK-UP LAMP SWITCH








^ Check continuity.

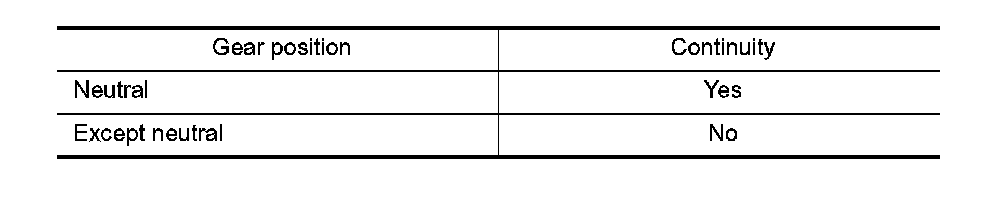

PARK/NEUTRAL POSITION (PNP) SWITCH








^ Check continuity.
