Changing M/T Oil

DRAINING
1. Start engine and let it run to warm up transaxle.

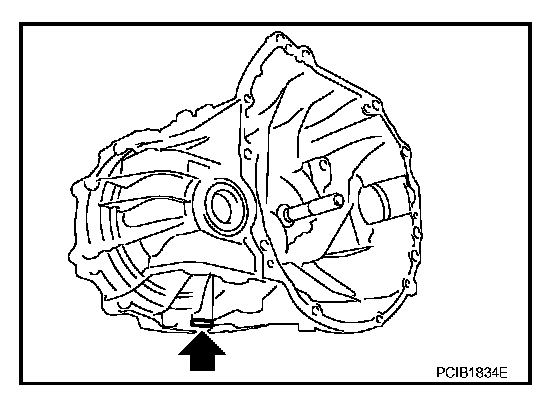

2. Stop engine. Remove transaxle drain plug and drain oil.
3. Set a gasket on drain plug and install it to transaxle. Tighten drain plug to the specified torque.

CAUTION:
Do not reuse gasket.

FILLING

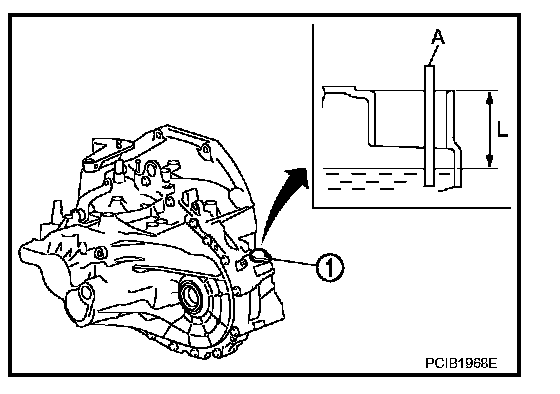

1. Remove plug (with ABS models) (1) or speedometer pinion gear (without ABS models) (1). Fill the transaxle with new oil and check the oil level "L" using suitable gauge (A) as shown.
Oil grade and capacity: Refer to MA-13, "QR25DE".
Oil level "L": 61.0 - 67.0 mm (2.402 - 2.63 8 in)
2. Set an O-ring on plug (with ABS models) (1) or speedometer pinion gear (without ABS models) (1) and then install it to transaxle. Tighten to the specified torque.

CAUTION:
Do not reuse O-ring.
